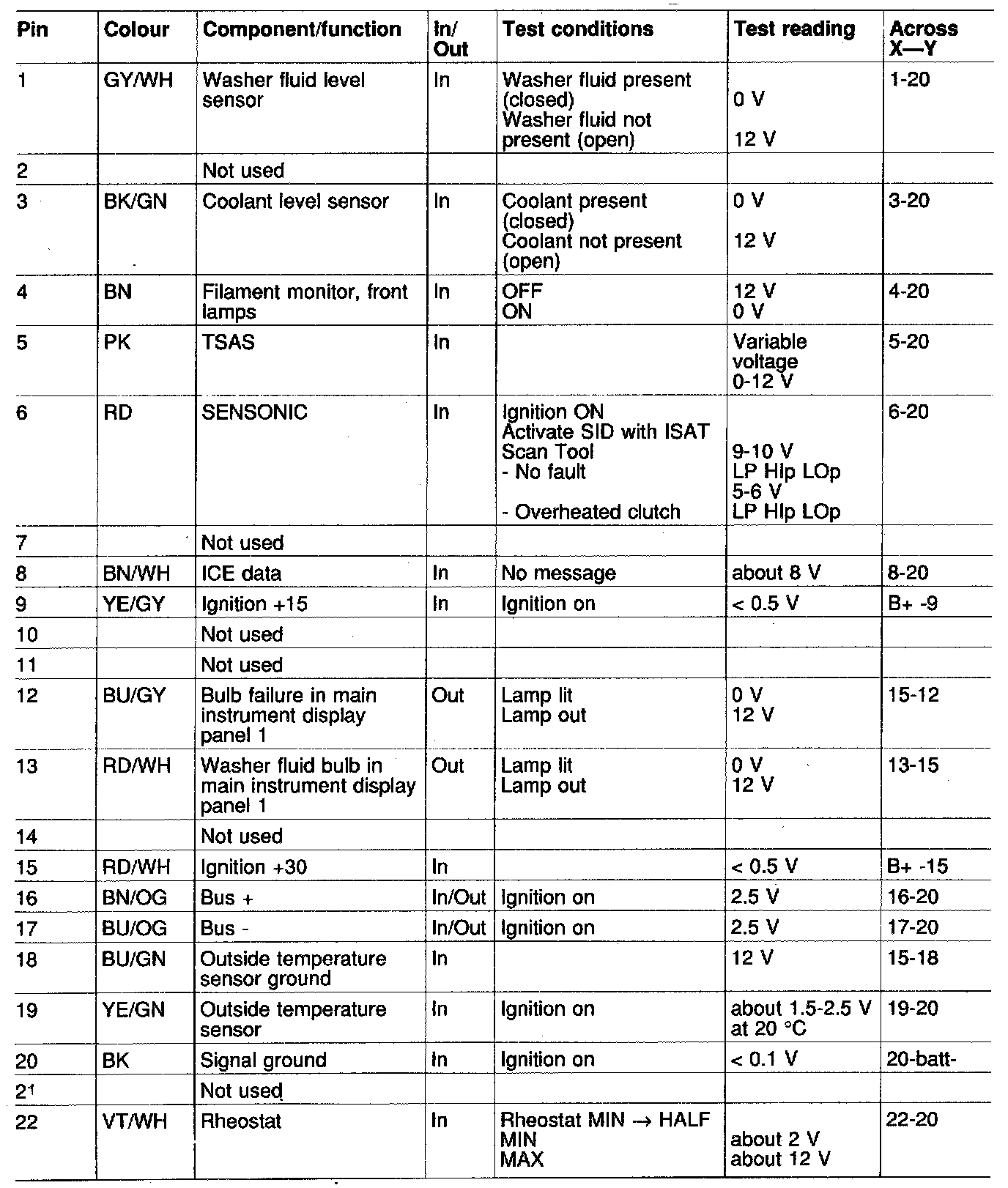

Pinout Values and Diagnostic Parameters

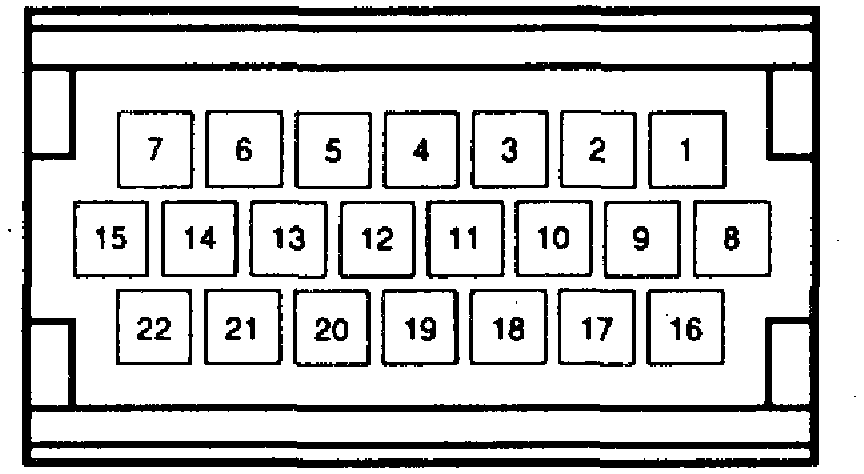

TEST READINGS, CONTROL MODULE CONNECTIONS





Remember:

- Unless otherwise stated, all voltage measurements should be carried out with all components connected and with the ignition switch in the Drive position.

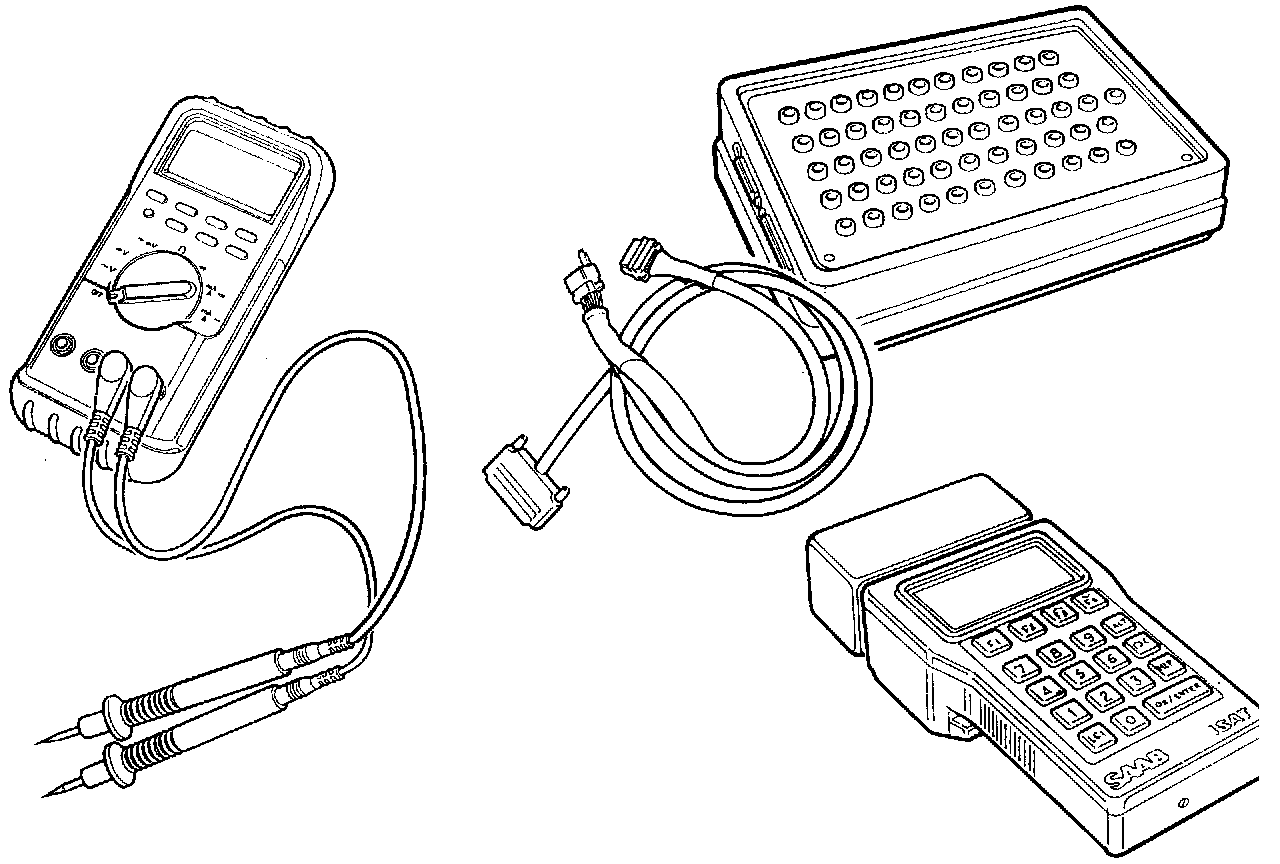

- Readings should be taken with a Breakout Box (BOB) connected between the SID unit and its connector.

- Several voltage levels should be regarded as guiding values. Use your common sense when judging whether a particular reading is correct or not.

- If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which ought to be checked more thoroughly.
