Checking the ICE Data

1 Connect a SAT Scan Tool and select "READ VALUES" followed by "DATA FROM ICE".

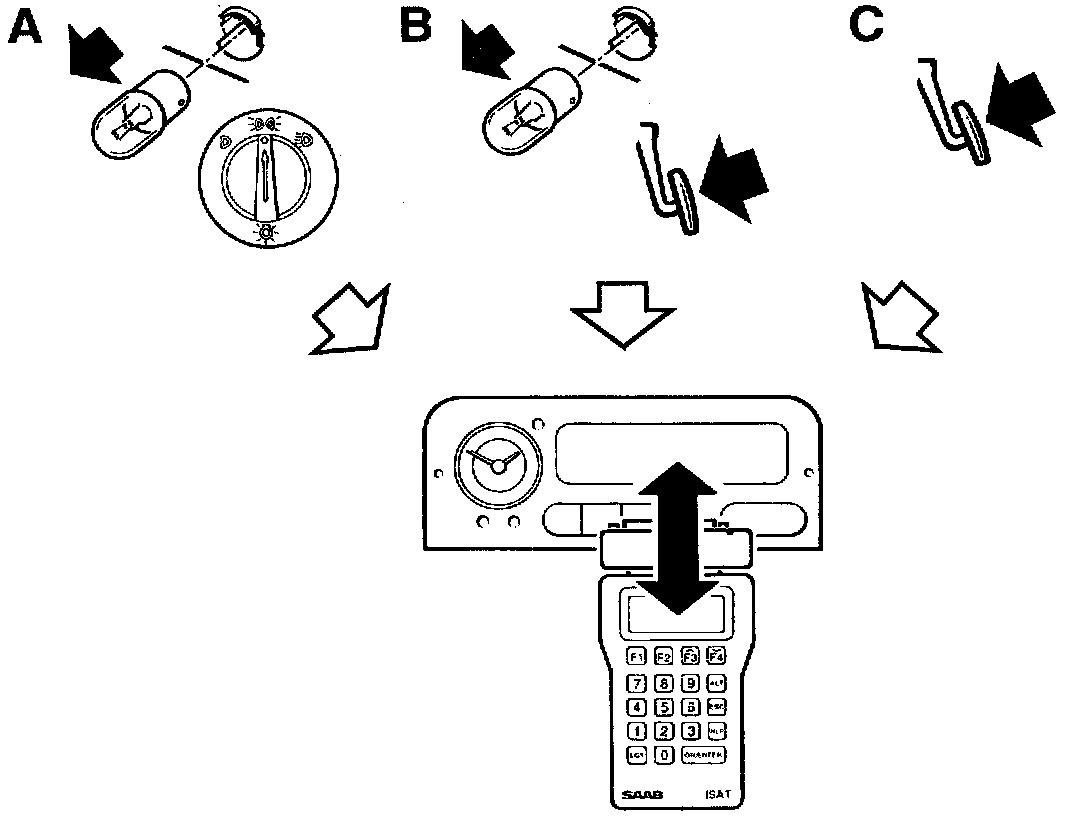

2 By proceeding as described below it is possible to simulate faults so that the ICE will send corresponding messages to the SID unit. Readouts of these messages can be obtained with the ISAT Scan Tool.





A Remove a rear parking light bulb and switch on the parking lights.

B Remove a brake light bulb and depress the brake pedal.

C Switch on the ignition. On depressing the brake pedal the signal should go away.
