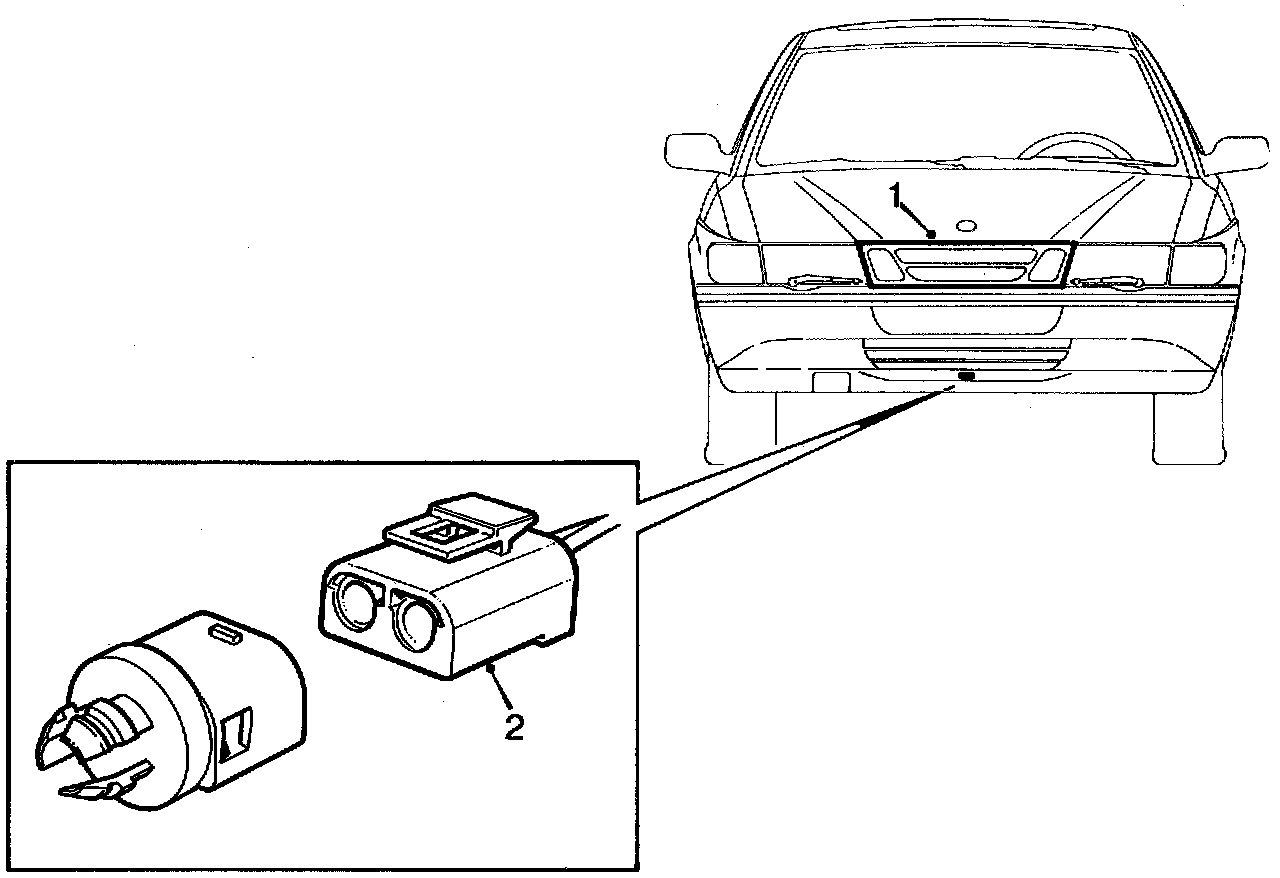

Outside Temperature Sensor







To remove

1 Remove the grille.

2 Remove the outside temperature sensor from the bracket.

3 Unplug the connector.

To fit

Fit in reverse order.
