D. First Time Installation of Accessory CD Changer

D. 1994- 9000: (Using the New Slimline Changer)

Parts:

Changer Bracket 02 47 957
CD Auto Changer (Slimline) 02 49 870
Adapter Brackets 02 49 888

Action:

1. Use the mounting instructions included with the changer bracket to mount the bracket.

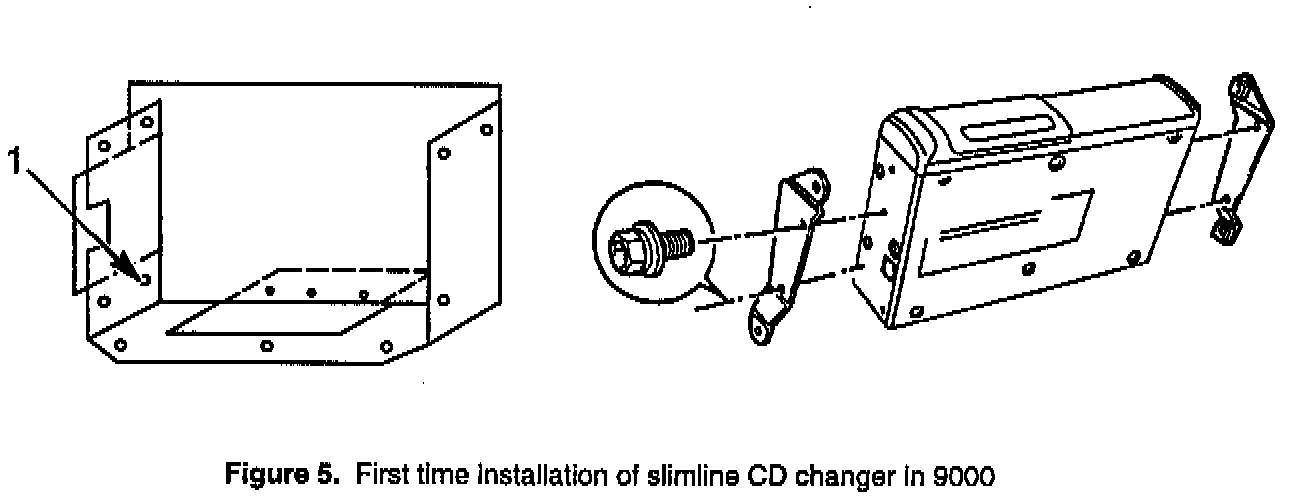

2. Use the bolts provided with the adapter brackets to attach the adapter brackets to the changer (see Figure 5).

Note
In some cases, you may need to drill a fourth hole in the changer bracket for the front adapter bracket. Using the bracket as a template for the hole location, drill a 5 mm (13/64 in.) hole in the location indicated by item 1, Figure 5.

3. Plug in the DIN connector.

4. Mount the changer with the adapter brackets to the changer bracket.
