C. Replacing Old Style 6-Disc CD Changer/New Slimline Changer

C. 1994- 9000:

Parts:

CD Auto Changer (Slimline) 02 49 870
Adapter Brackets 02 49 888

Action:

1. Remove the old-style CD changer.

2. Use the bolts provided with the adapter brackets to attach the adapter brackets to the slimline CD changer.

Note

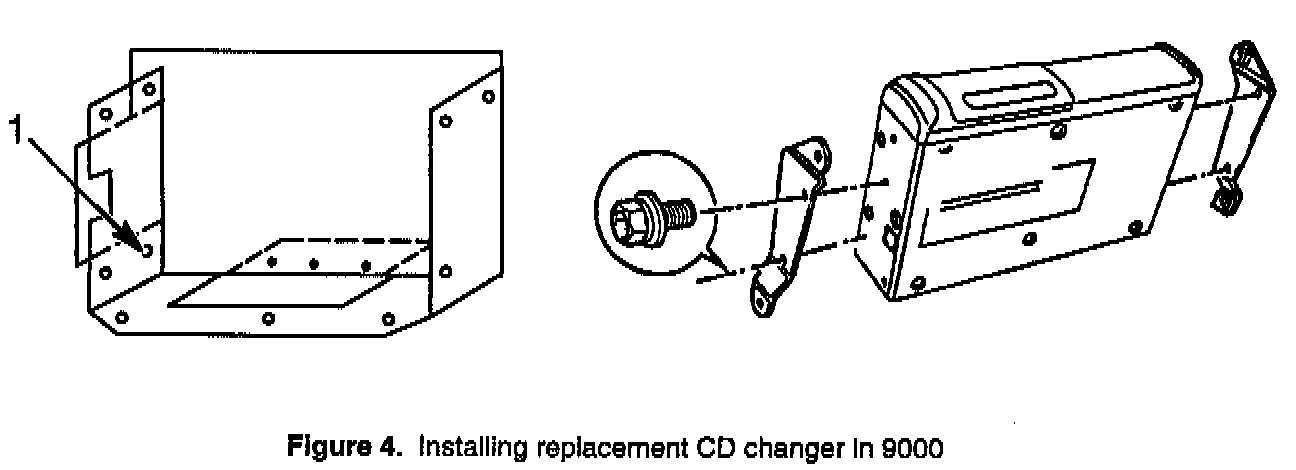

In some cases, you may need to drill a fourth hole in the changer bracket for the front adapter bracket. Using the bracket as a template for the hole location, drill a 5 mm (13/64 in.) hole in the location indicated by item 1, Figure 4.

3. Plug in the DIN connector.

4. Use the original bolts to attach the adapter brackets to the changer bracket.
