A. Replacing Old-Style Changer With New Slimline Changer

A. 1994 - 900 (not 1994 CV) and 1995 - 900 CV:

Parts:

CD Auto Changer (Slimline) 02 49 870
Adapter Brackets (900 with old style changer bracket) 02 49 888

Action:

1. Remove the old-style CD changer from the changer bracket.

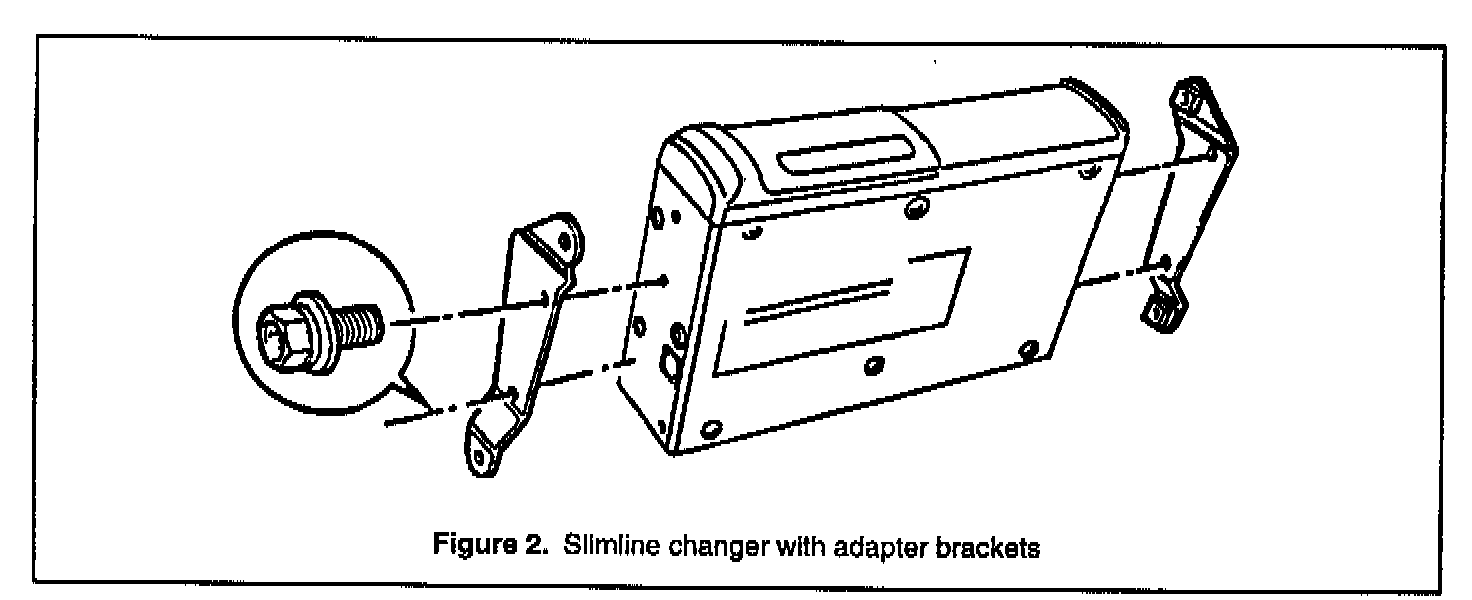

2. Use the bolts provided with the adapter brackets to attach the adapter brackets to the slimline CD changer (see Figure 2).

3. Slide the CD changer with adapter brackets into the changer bracket.

4. Use the original mounting screws to secure the adapter brackets to the changer bracket.
