Fuses

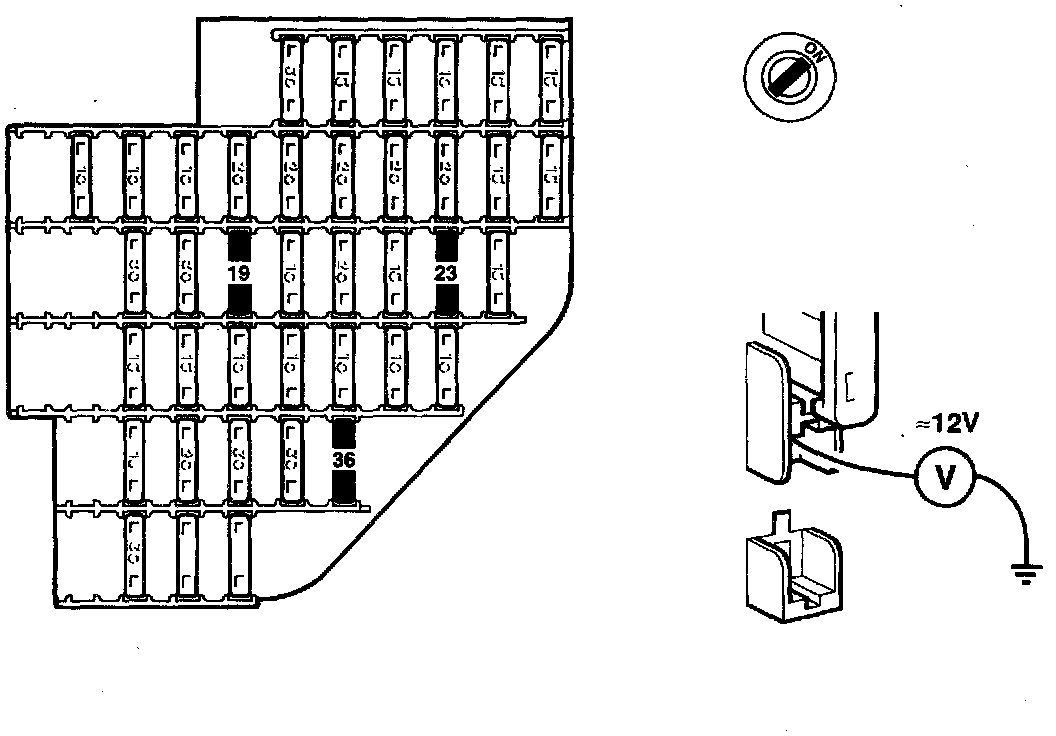

1 Check that the fuse is intact and live with current in accordance with the table below.

Function Fuse Condition

Anti-theft alarm power supply 23 +30 power supply
Ignition switch activation 19 +15 power supply
Starter interlock 36 +50 power supply
Central locking 20 +30 power supply
