Command Menus

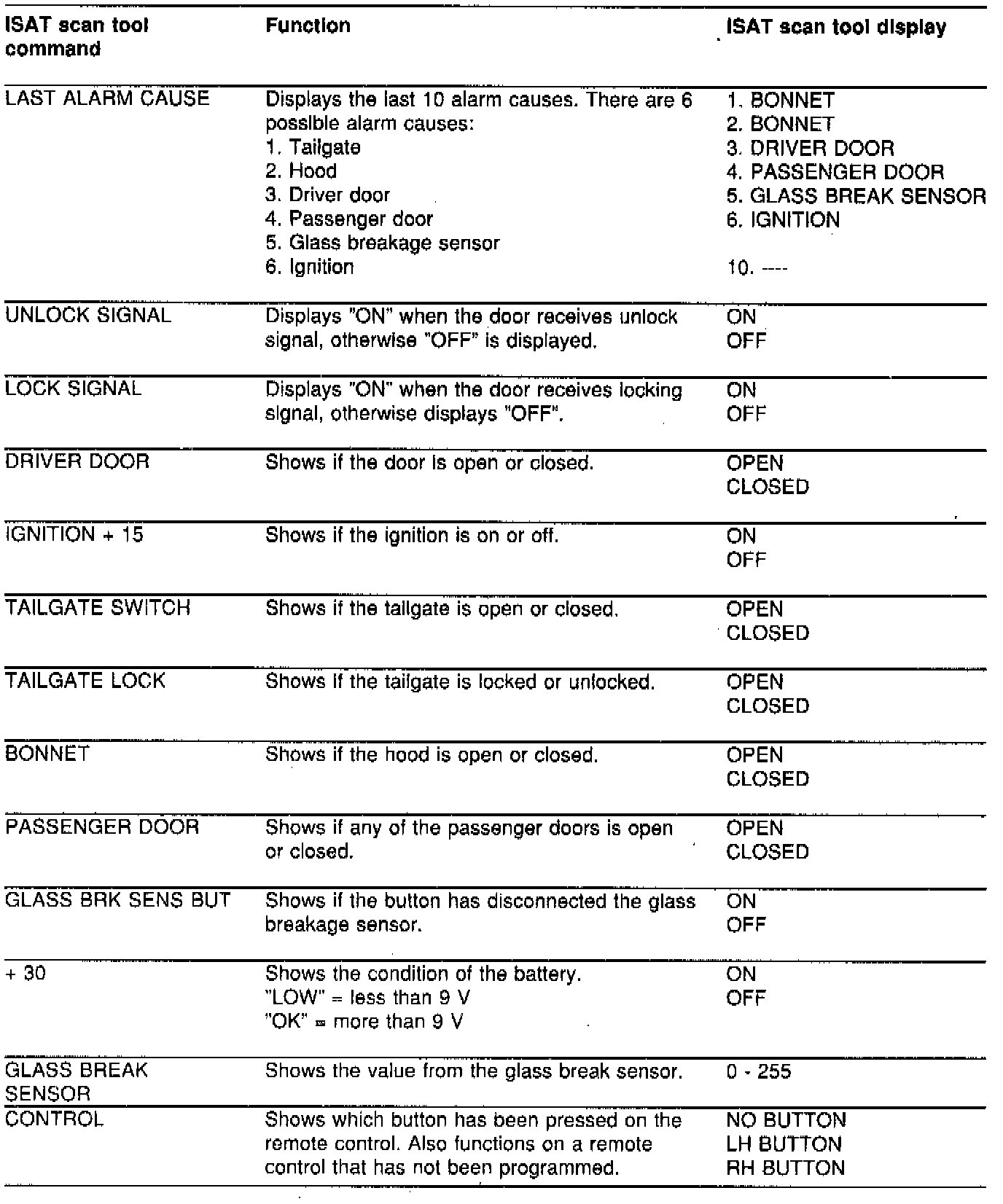

Command Menu "READ VALUES"

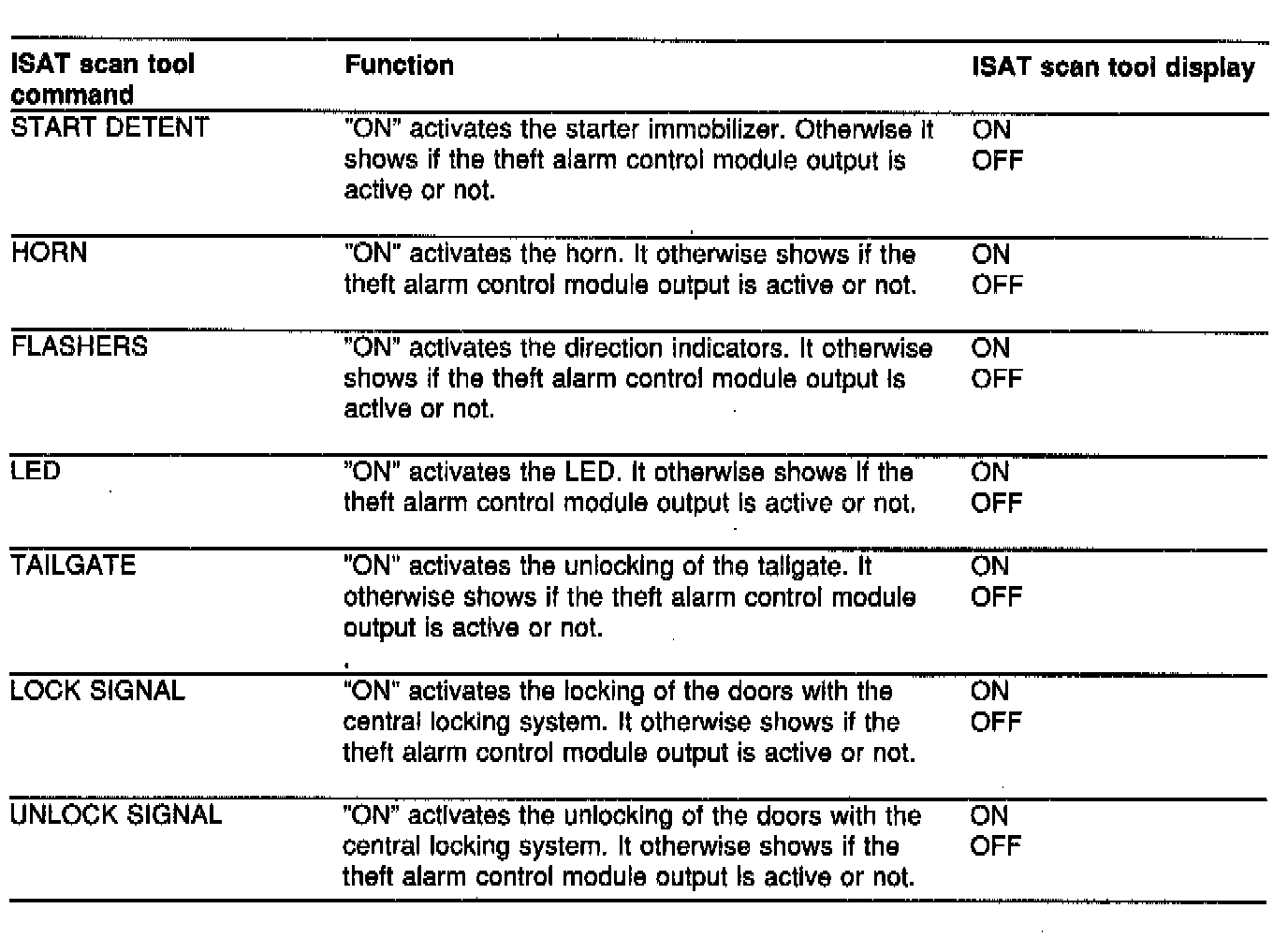

Command Menu "ACTIVATE"

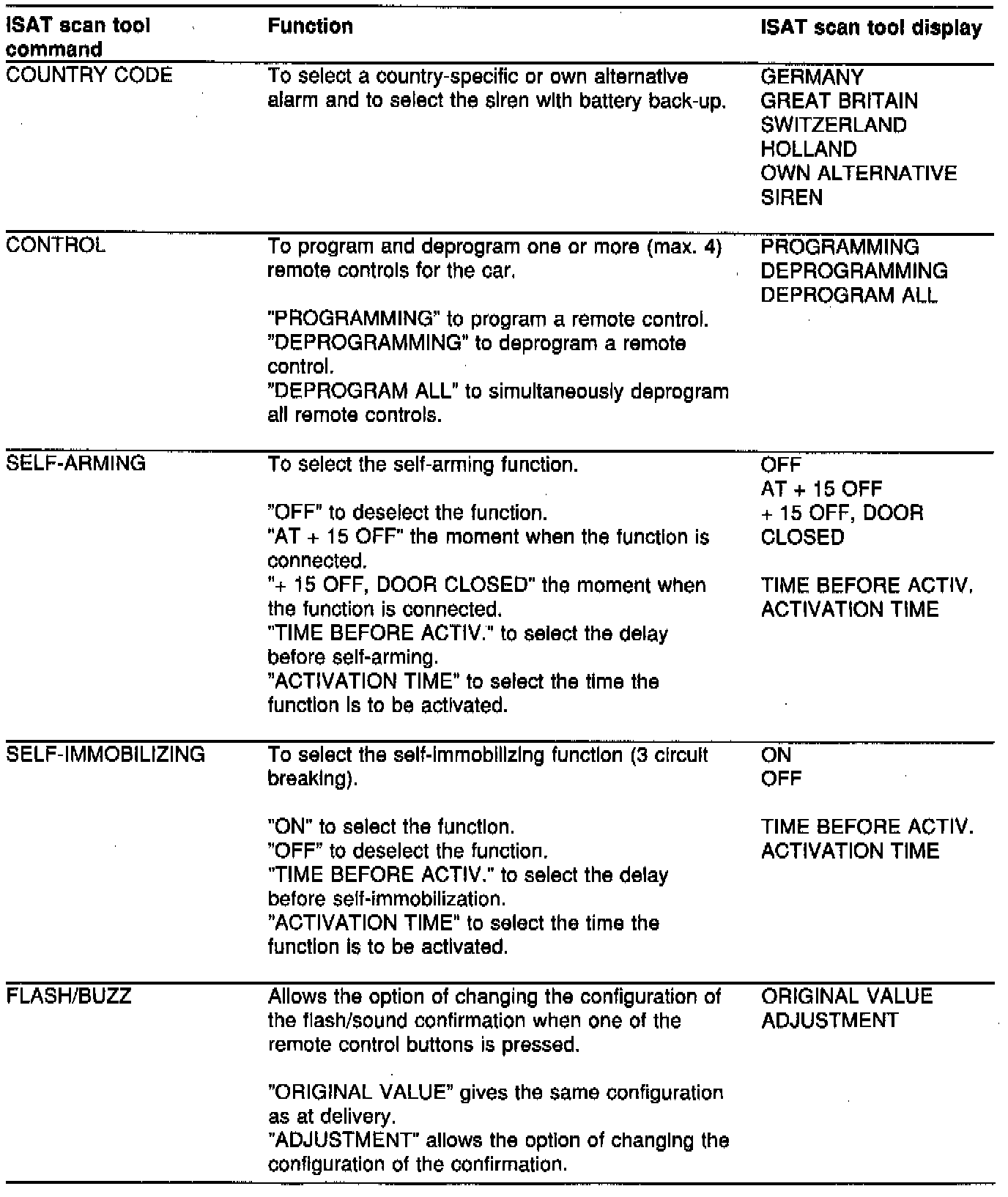

Command Menu "PROGRAMMING" (Part 1 Of 2):






Command Menu "PROGRAMMING" (Part 2 Of 2):

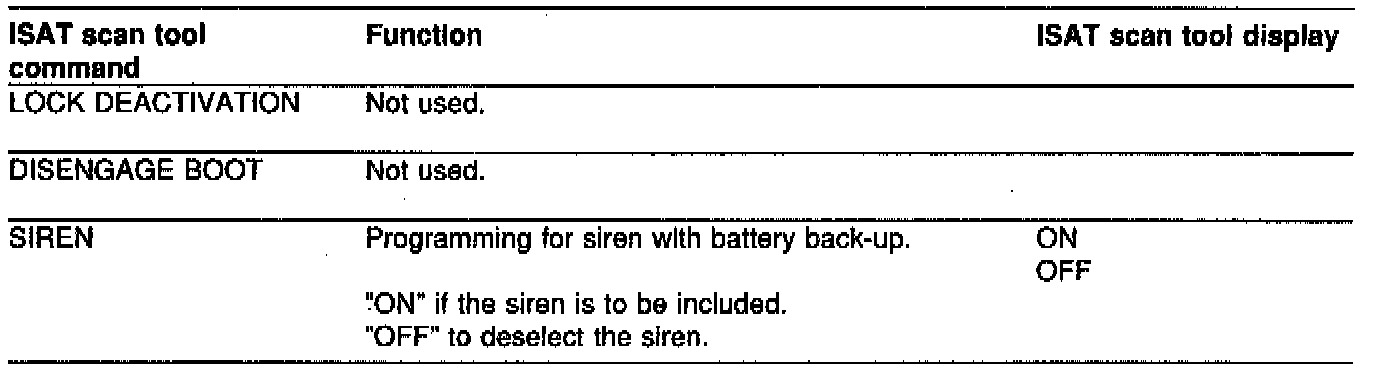

Command Menu "PROGRAMMING"

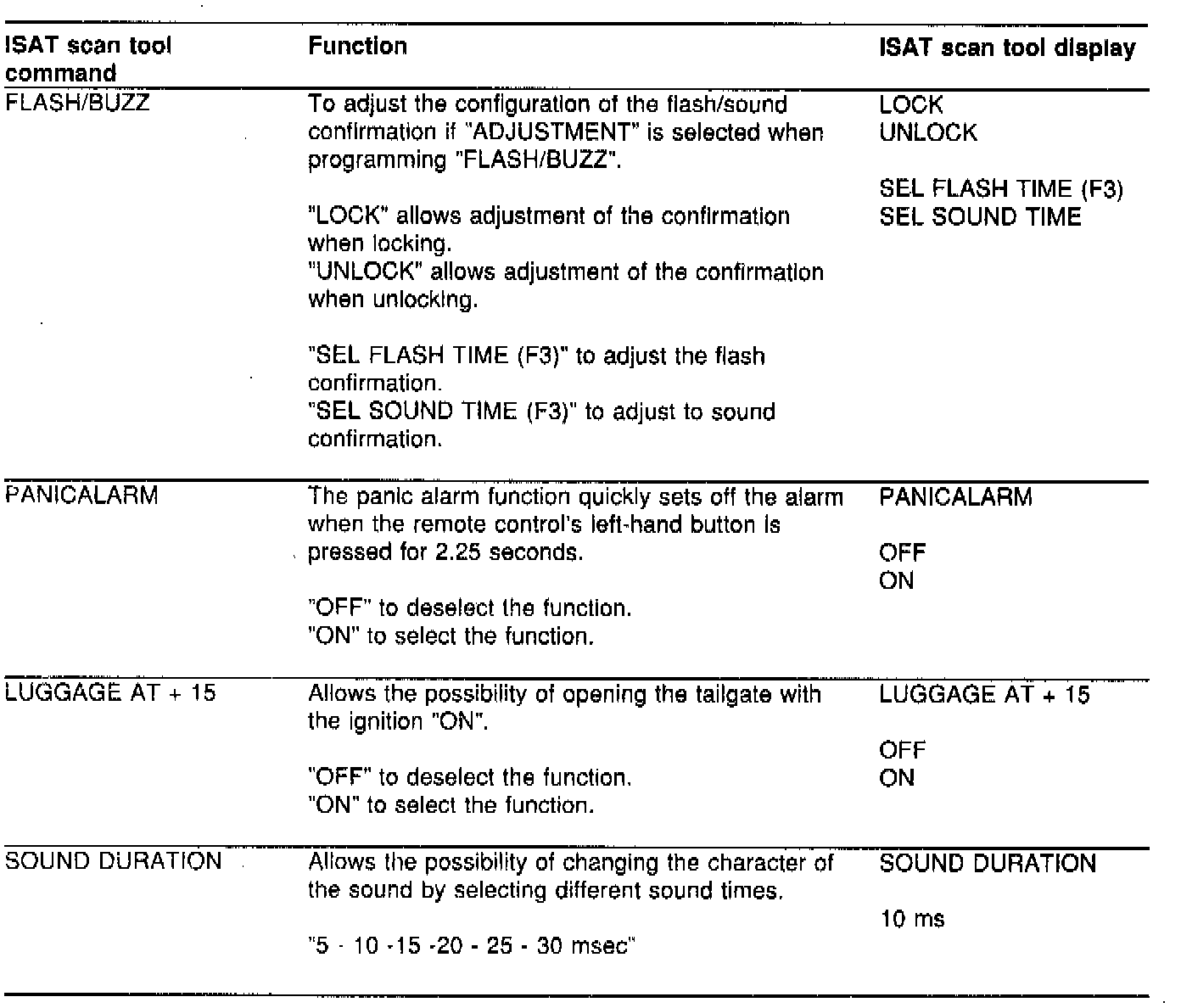

Command Menu "ADJUSTMENT"

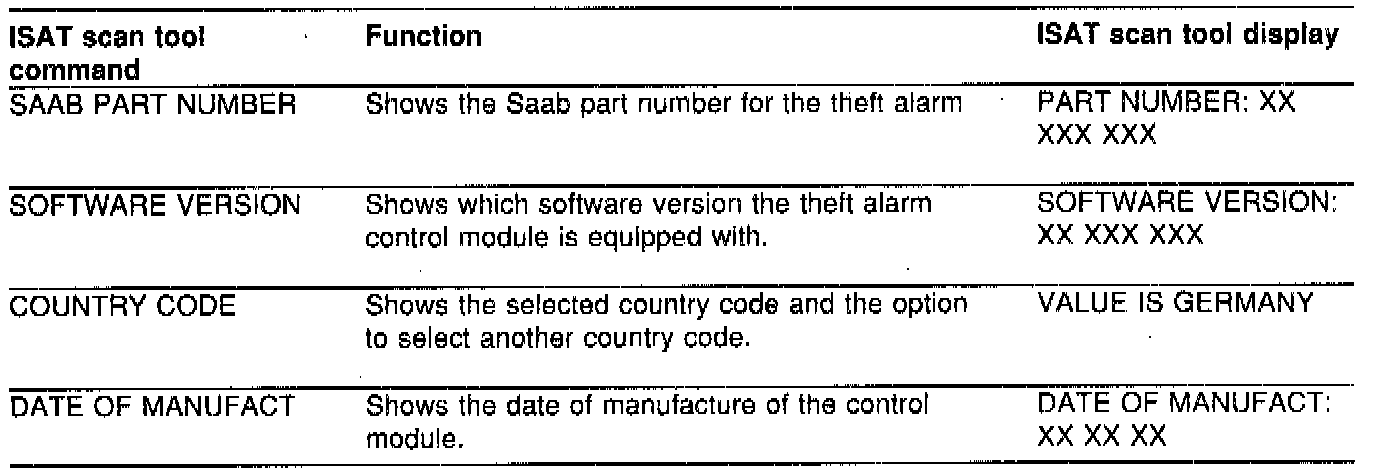

Command Menu "READ SYSTEM INFORMATION"
