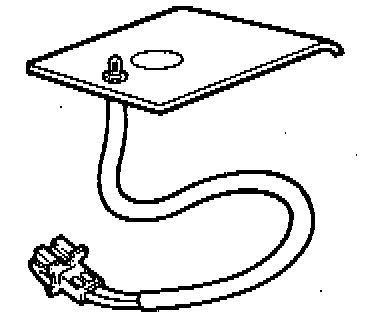

Connector Locations





Location On the dashboard
Current limiting from electronic control module Pin No.20 mA
Power supply Pin No.2
Ground Pin No.1
