Door Sensor/Switch (For Alarm): Service and Repair

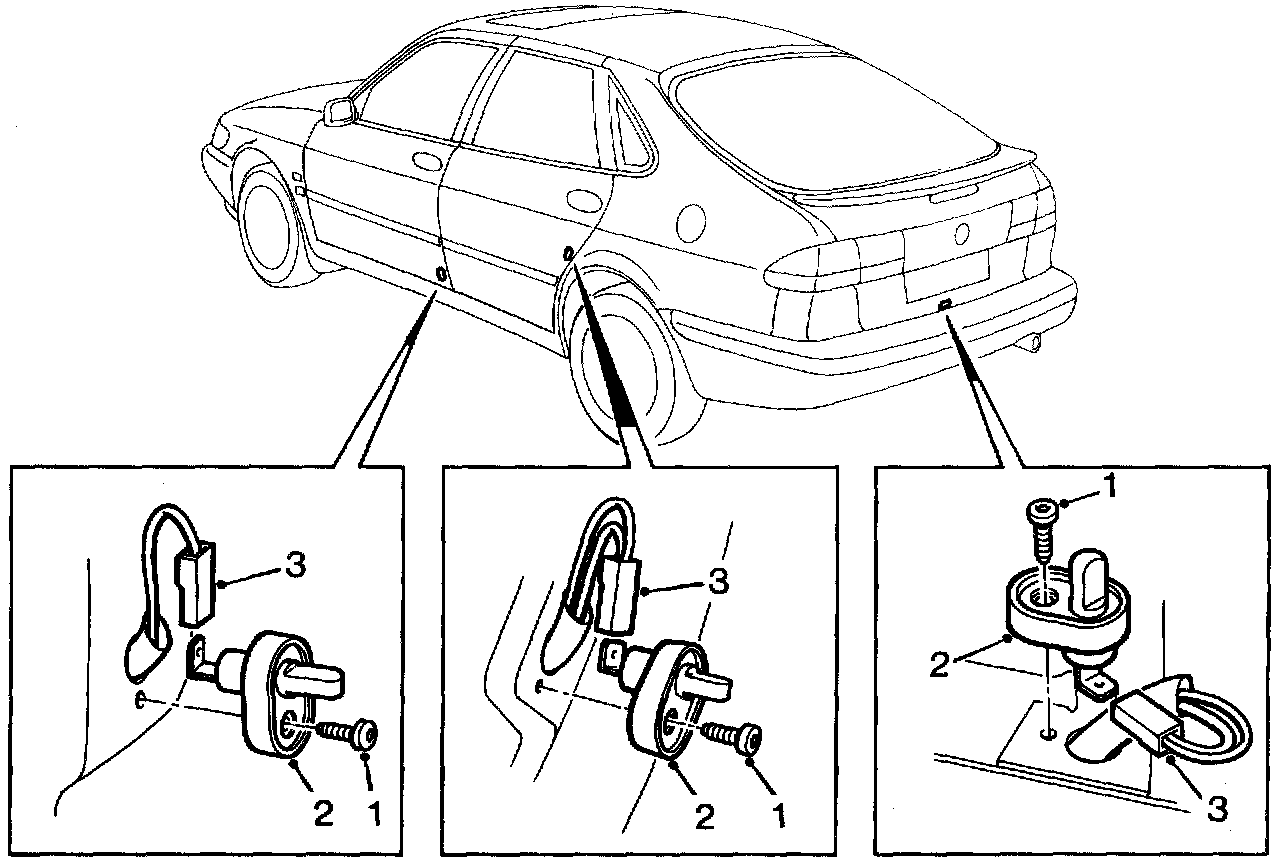

1 Remove the screw securing the door switch.
2 Lift the door switch out through the hole in the body.
3 Unplug the connector.
Install in reverse order.
