Tailgate





It is possible to open the tailgate with the key when the alarm has been activated, without triggering the alarm.

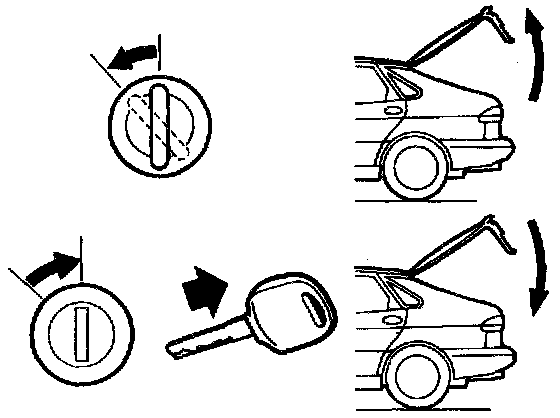

The tailgate will then be excluded from the monitoring system and must be unlocked and opened in the following manner to avoid triggering the alarm:
- Turn the key to the unlocked position.
- Open the tailgate.
- Turn the key back to the neutral position.
- Remove the key.
If the tailgate is opened with the key during the delay period, the LED will flash at the rate of 1 flash per second for 10 seconds. The alarm will be activated at the end of the delay period but the tailgate will be excluded from the monitoring system. When the tailgate is later closed, a new delay period will start but only for the tailgate. The LED will shine with a steady light.
The alarm remains activated for other doors or the top.
