Alarm Horn: Service and Repair

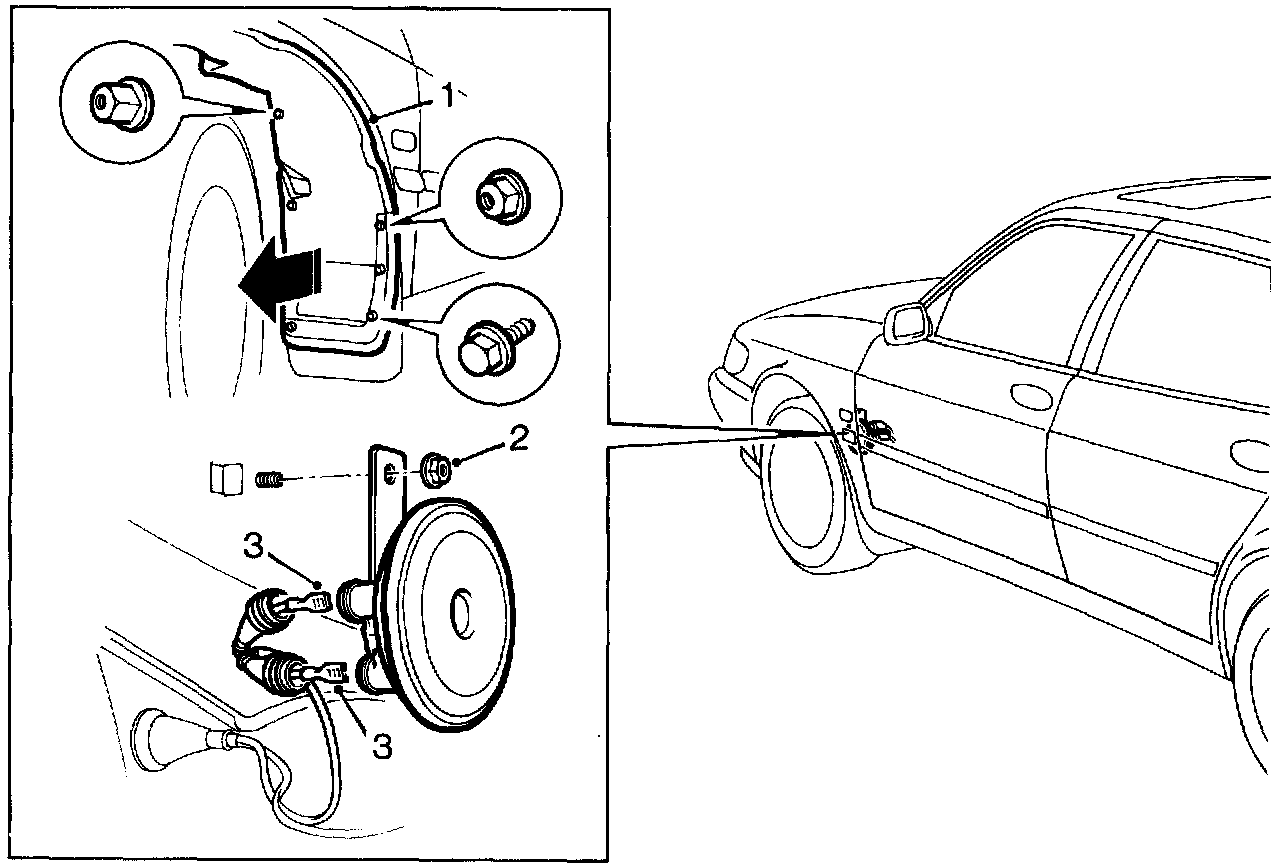

1 Remove the rear part of the wing liner in the front left-hand wheel housing.
2 Remove the screw securing the horn and lift out the horn.
3 Unplug the two single-pole connectors.
4 Install in reverse order.
