P1830

DIAGNOSTIC TROUBLE CODE P1830
TRANSMISSION'S GEAR SHIFTING FUNCTION IS FAULTY

Fault symptom

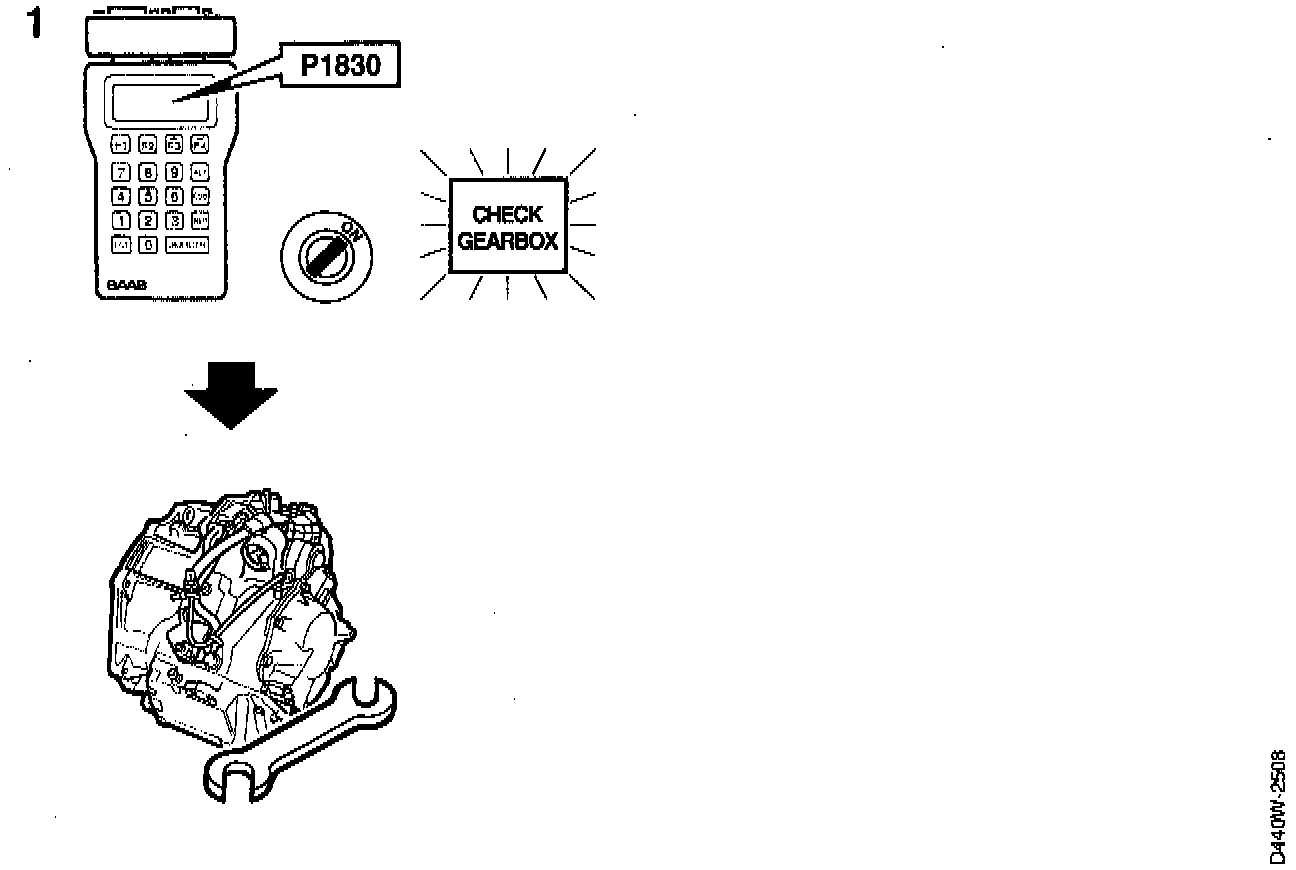

Warning lamp CHECK GEARBOX lit. The system's emergency program is activated.

Conditions.
The speed of the car is >25 km/h and more than 5 seconds has passed since a shifting of gear. Deviation in rpm may then not be more that 3% and not last more than 1 second.

Diagnostic procedure
The Transmission Control Module (TCM) calculates the ratio between incoming and outgoing transmission rpm. For each gear there is a fixed ratio which is determined by the gear ratio. The fault is probably a mechanical fault. The fault can hardly occur because of a fault in the control system.

Wear in the transmission which results in hard gear shifting and a non-operating lock-up function.
