Brakes and Traction Control

Fig. 8 ABS System Wiring Circuit (part 1 Of 3):

Fig. 8 Part 2 Of 3:

Fig. 8 ABS System Wiring Circuit (part 3 Of 3):

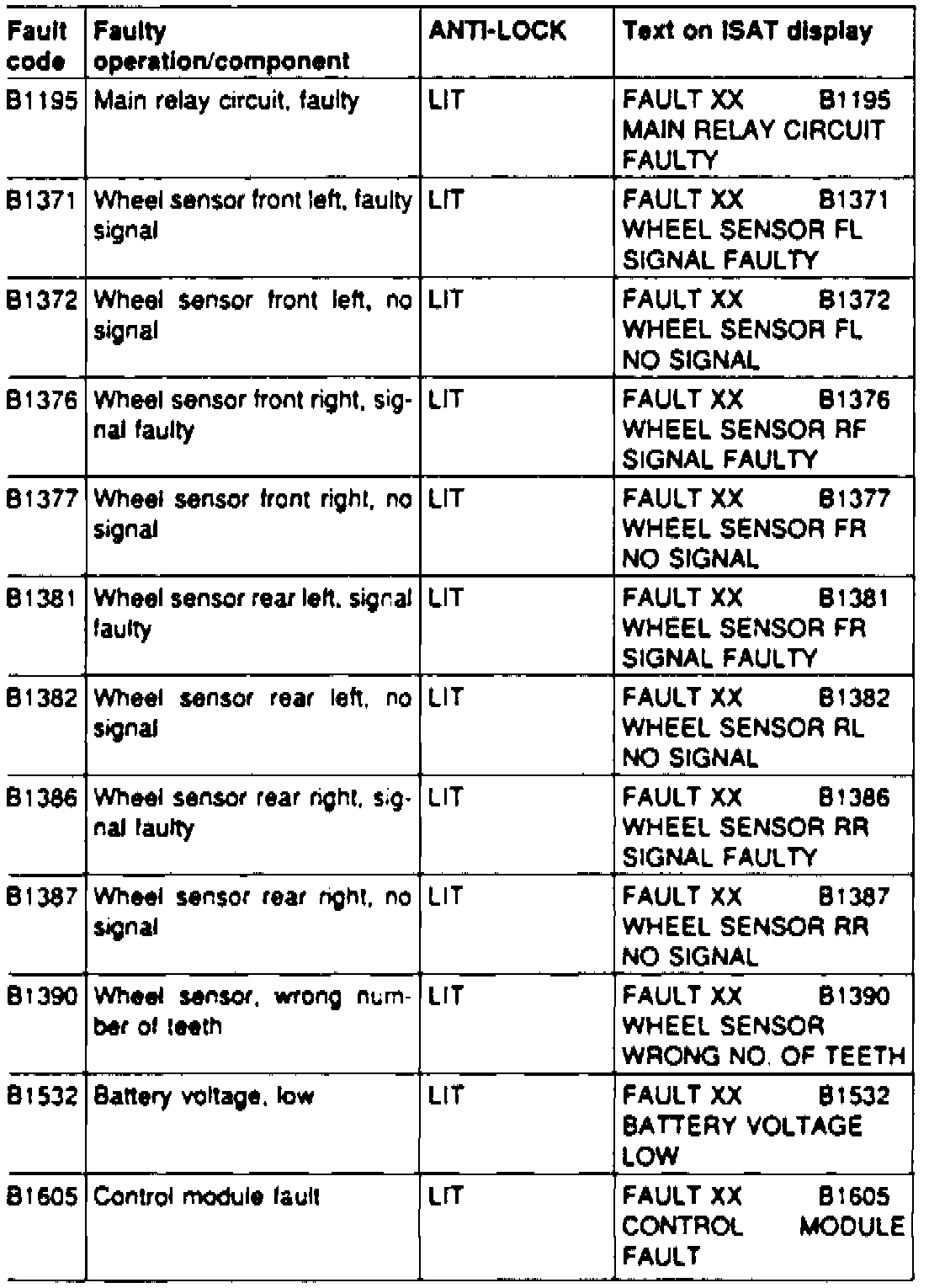

Fig. 12 ABS Diagnostic Trouble Codes (part 1 Of 2):

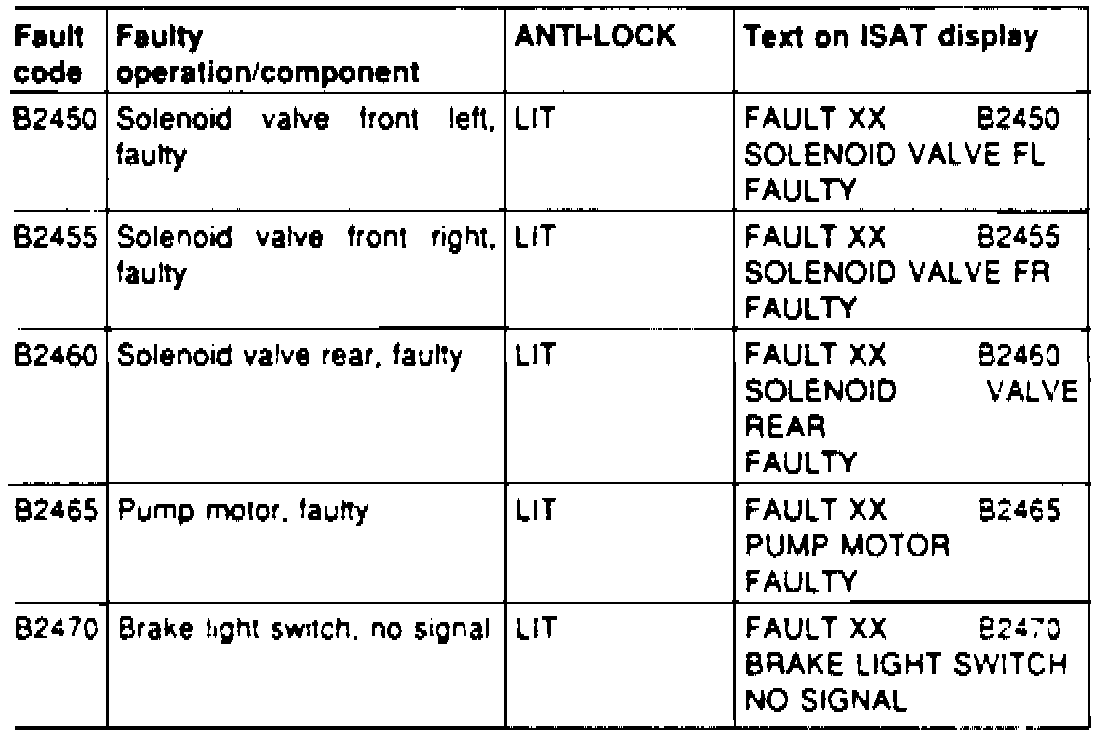

Fig. 12 ABS Diagnostic Trouble Codes (part 2 Of 2):

When performing diagnostic trouble code diagnosis and repair, refer to Fig. 8 for ABS wiring circuit and Fig. 12 for diagnostic trouble code identification.
Refer to Fig. 13 for explanation of valve test, Front Left (FL) and Front Right (FR). The rear valve test is similar to hte front valve test, but is simpler. Refer to Fig. 13 for an explanation of the rear valve test, noting that only displays 1, 2, and 8-12 apply.
