Brakes and Traction Control

Fig. 6 ABS Control Module Connector View:

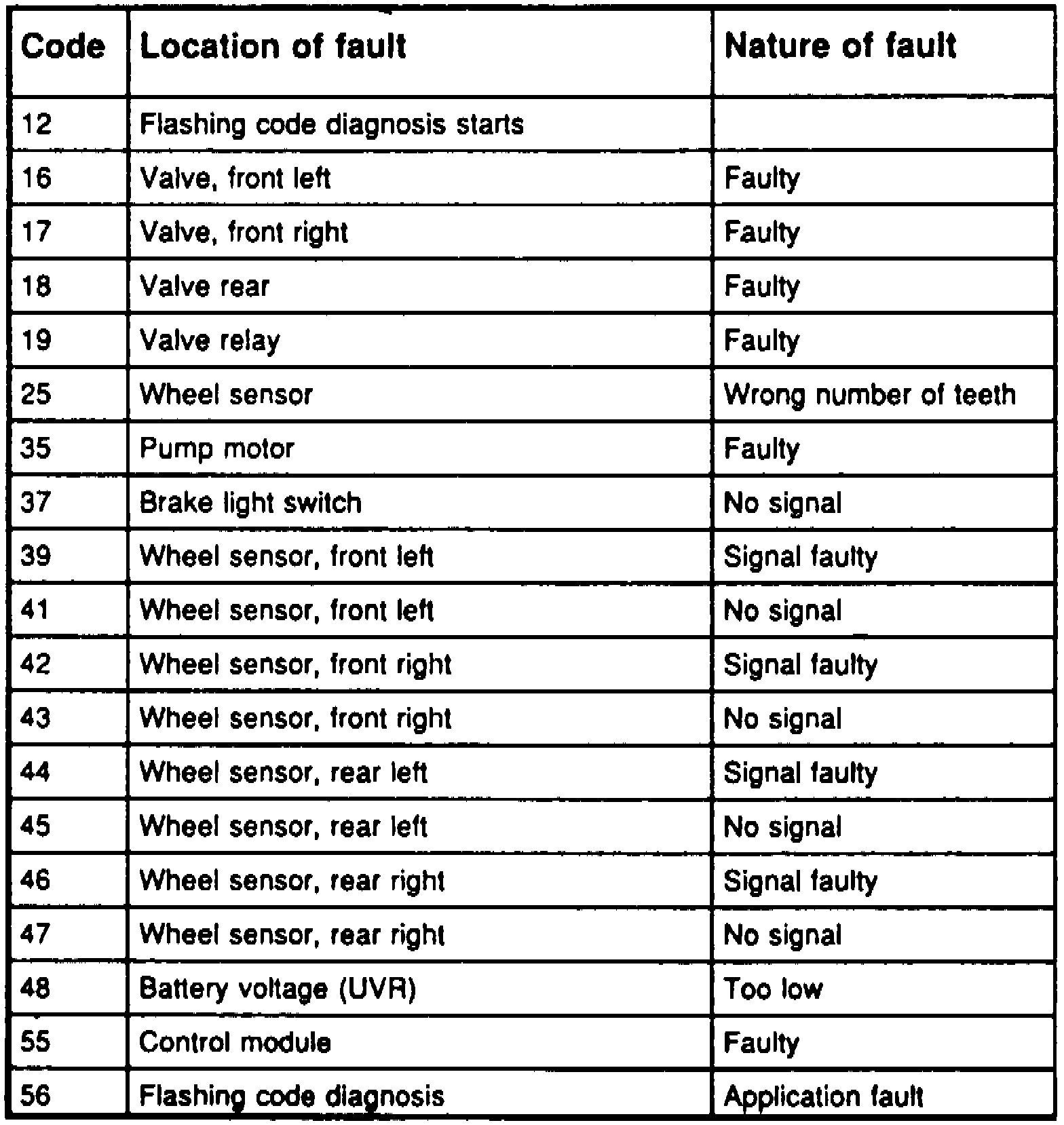

Fig. 9 ABS Flashing Codes:

To begin flashing code diagnosis, ground pin 24 in 25 pin connector of control module, Fig. 6, before ignition is turned ON. Refer to Fig. 9 for description of flashing codes.
