Relay DTC Fault Symptoms

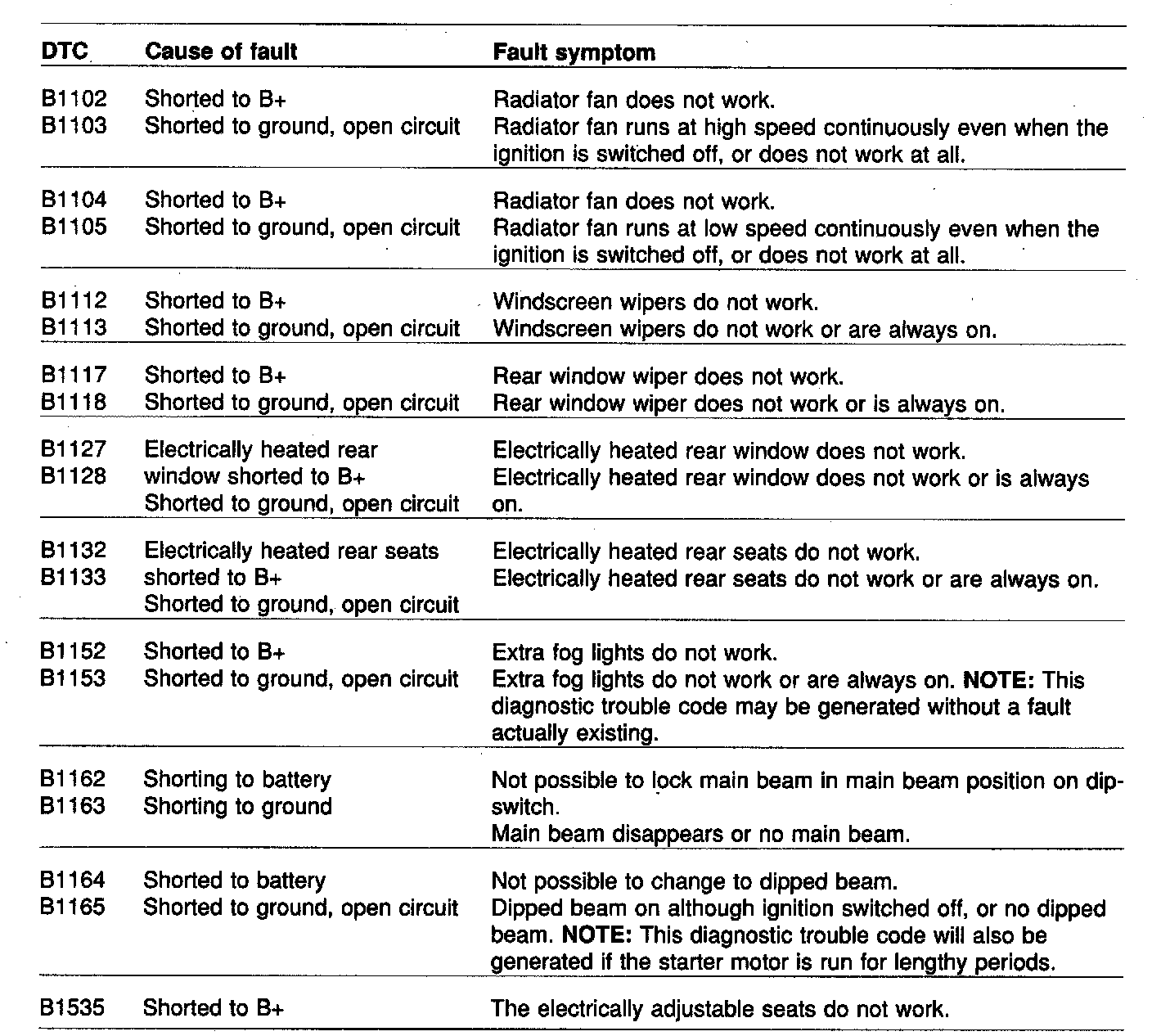

The table below lists the diagnostic trouble codes for faults which have probably developed in the relay circuit.

If the Intelligent Saab Tester (ISAT) scan tool displays any of the diagnostic trouble codes below, continue fault diagnosis on the relay itself as described in "General Relay Fault Diagnosis on Generation of a DTC".
