Airbag (SRS)

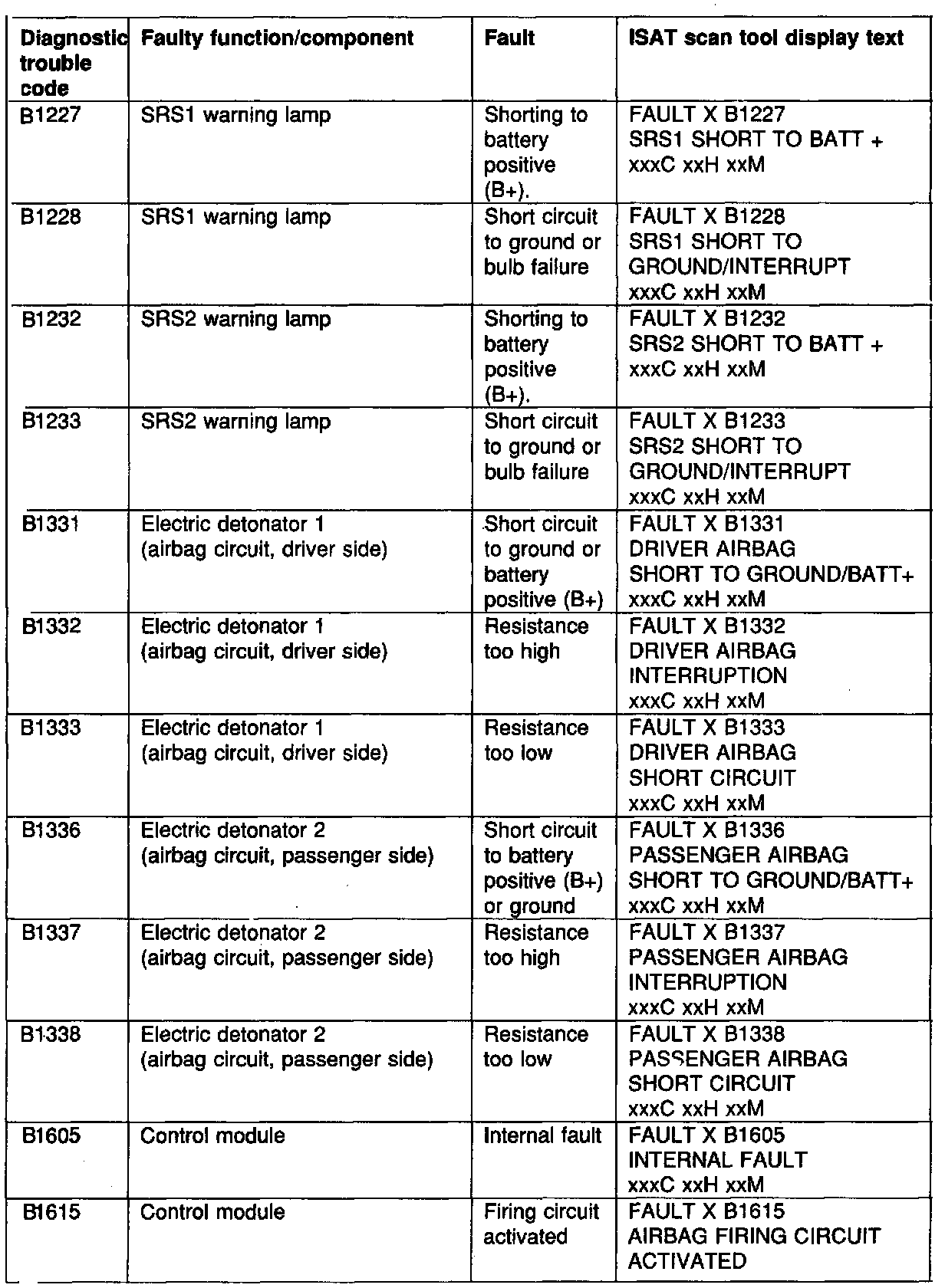

FAULT X = diagnostic trouble code's ordinal number
xxxC = number of times each fault has been registered (0-255)
xxH = number of hours passed since the diagnostic trouble code was first registered (max 40 hours)
xxM = number of minutes passed since the diagnostic trouble code was registered for the first time
BATT+ = Battery positive voltage (BPV)
SHORT = short circuit
