B1360

DTC B136O
Fault in the ACC panel's pushbuttons.

Conditions
The trouble code is generated if the buttons on the ACC panel are pressed continuously for more than four minutes at a time.

Diagnostic procedure

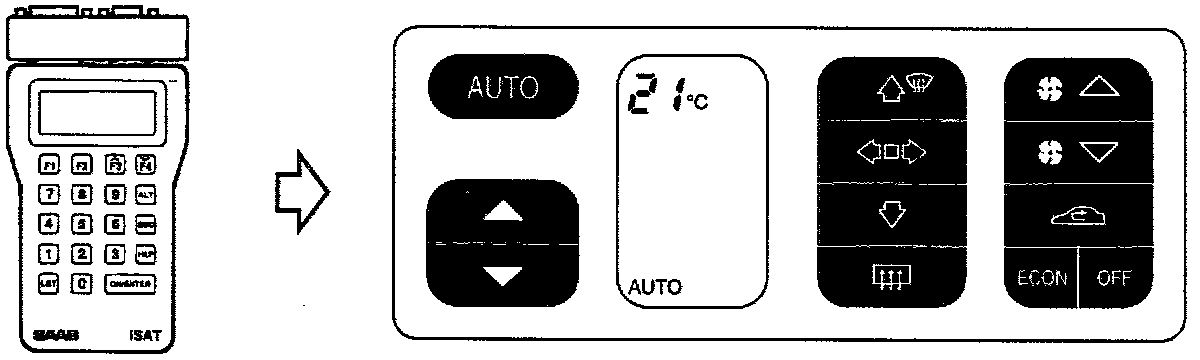

Issue the ISAT command "PUSHBUTTONS" and then press the buttons on the ACC panel. If a button is OK, the ISAT will answer "ON". If the ISAT shows "ON" without a button being pressed, then one of the buttons has jammed. Locate and rectify.

NOTE: The ACC control module reacts when a button is pressed, not when it springs back to its original position.
