B1212

Seat-belt warning lamp shorted to battery positive, shorted to ground, open circuit

Fault symptom
The lamp does not work or is on all the time.

Conditions
B1212: Seat-belt warning lamp shorted to battery positive.
B1213: Seat-belt warning lamp shorted to ground or open circuit.


NOTE: DTC B1213 will also be generated if the starter motor is run for lengthy periods.


Diagnostic procedure
1 Check the lamp in the dashboard.


Important: The seat-belt warning lamp lights up for only 6 seconds when the ignition is switched on. Check points 2 and 3 when the lamp is on. (The lamp can be switched on with the Intelligent Saab Tester (ISAT) scan tool.)

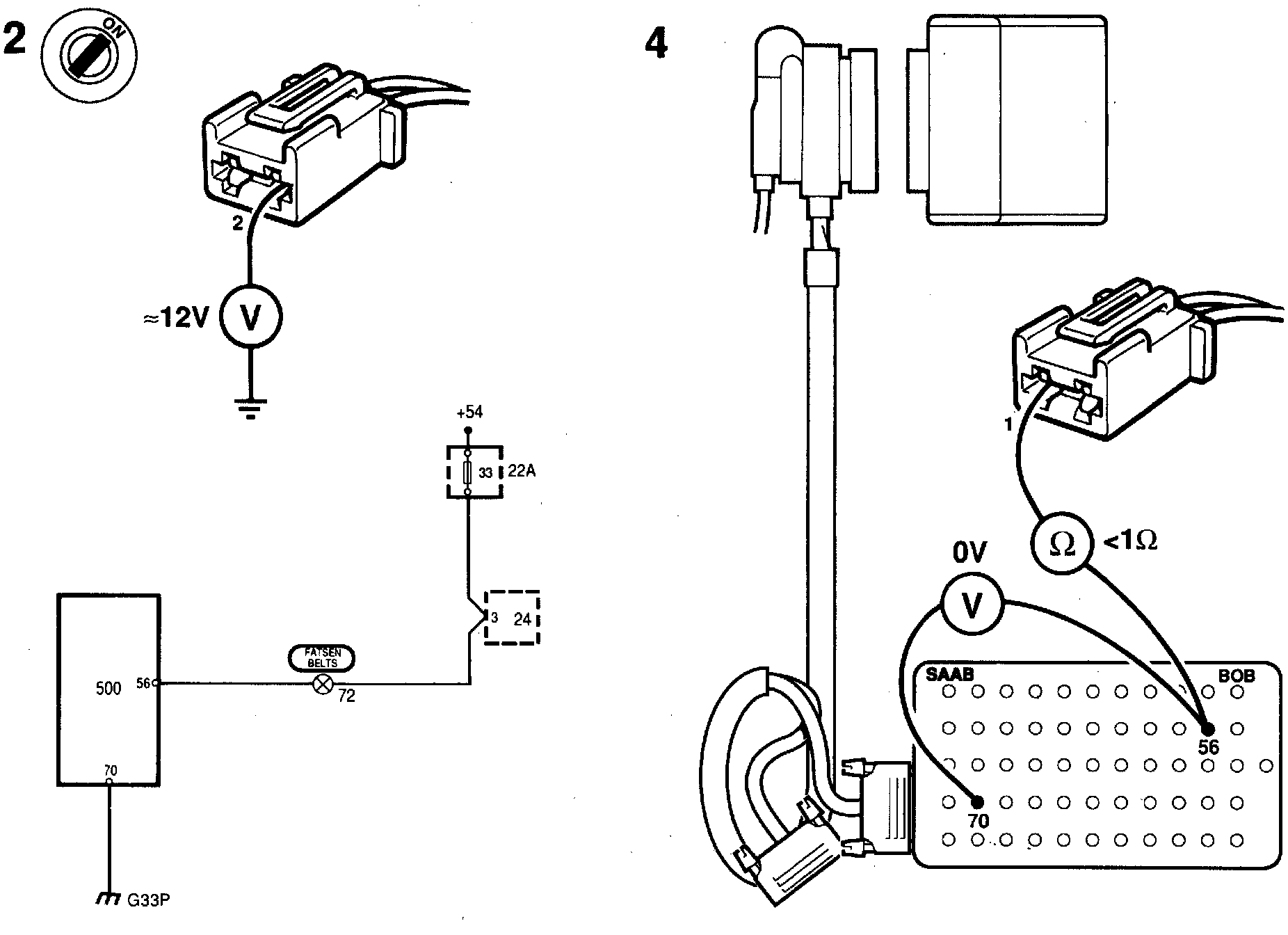

2 Check that 12 V is present across pin 2 of the seat-belt warning lamp connector and a good ground. If it is not, check the lead between fuse 33 and the lamp.
3 Check that pin 1 of the lamp is connected to ground when activated.
4 If no ground connection is obtained, connect a BOB and check the lead between pin 56 of the Integrated Central Electronics (ICE) connector and pin 1 of the lamp connector for continuity/shorting.
5 Proceed to "Before Changing an Electronic Control Module".
