3:5 Electrical System Instruments
Page 14 Technical Description of ICE^ Different sounds for direction indicator, seat belt and ignition key reminder signals (SID unit).
Page 21 Technical Description of ICE
Filament monitor
"Imbalance will occur in the event of a fault developing in the front lighting circuit, resulting in the grounding of connection C2 in the filament monitor and a message appearing in SID unit 2 or 3. Alternatively, the "Bulb blown" warning lamp will light up in main instrument display panel 1."
Page 34 Technical Description of ICE
Delete the last paragraph: "If the ignition is switched off..."
Page 59 ICE Fault diagnosis
Connection of relays to ICE
Position in distribution box - in facia
Relay, rear window wiper D(LHD), K(RHD)
Relay, electrically heated rear window H(LHD), G(RHD)
Relay, windscreen wipers G(LHD), L(RHD)
Page 61 ICE Fault diagnosis
Diagnostic procedure
Change the second bullet as follows:
^ between the side direction indicator connector (grey/black cable, LH, and green/black, RH) and a good grounding point.
Page 105 ICE Fault diagnosis
Under 6 - second bullet
^ between the LH side direction indicator connector (grey/black cable) and a good grounding point.
Under 7 - second bullet
^ the side direction indicator connector (grey/black cable, LH and green/black, RH).
Page 152 Fault diagnosis main instrument 1
In the illustration the cables between connector H33-3 and main instrument display panel 540A are transposed. The cable from pin 13 of connector H33-3 should be connected to pin 6 of the main instrument display panel (540A) and the cable from pin 14 of connector H33-3 should be connected to pin 1 of the main instrument display panel (540A).
Resistance values under the heading Diagnostic procedure, step 1 is 20-450 ohms. Should be 50-390 ohms.
Page 166 Changing components
Delete replacement of rear panel since main instrument display panel 1 is sold as a complete unit.
Page 168 Technical Description Main Instrument 2
"G8S" in the illustration should be "G33S".
Page 175 Technical Description Main Instrument 2
Delete the "Starter motor voltage" section, as main instrument display panel 2 does not have this function.
Page 222 Fault diagnosis main instrument 2
Pin 25, in the illustration, should be pin 22.
Replace step 6 as follows:
6 Check between pin 5 of the BOB at the main instrument display panel and pin 22 of the other BOB for an open circuit or shorting to ground.
If the lead is OK, continue fault diagnosis as described in Service Manual 5 ABS Braking system.
Page 243 Fault diagnosis main instrument 2
Pin 22, in the illustration, should be pin 1.
Replace step 6 as follows:
6 Check for continuity between pin 16 of the BOB at the main instrument display panel and pin 1 of the BOB at the ABS control module.
Page 253 Technical Description of SID

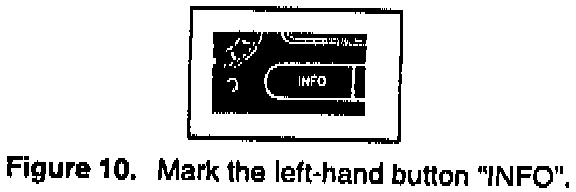

In the illustration SID module 2, the left-hand button should read "INFO" instead of "SET". See Figure 10.
Page 275 Fault diagnosis SID
"Range 0-10 litres in intervals of 0.1 litre" should be
"Range 0-10 litres in 1-litre intervals".
Page 276 Fault diagnosis SID
4 "SERVICE INDICATOR" has been replaced with the table in Service Bulletin 11/93-0406 (Sect. 3, page 59).
