Cylinder Bore/Piston Dimension - Corrections

Category
Specifications

Section
0

Page
17

Issue
05/95-0577

Code
020

Subject:
Correction to Cylinder Block Bore Dimensions and Piston Dimensions

Application:
1991-93 900, 1994 Convertible with B212 Engine

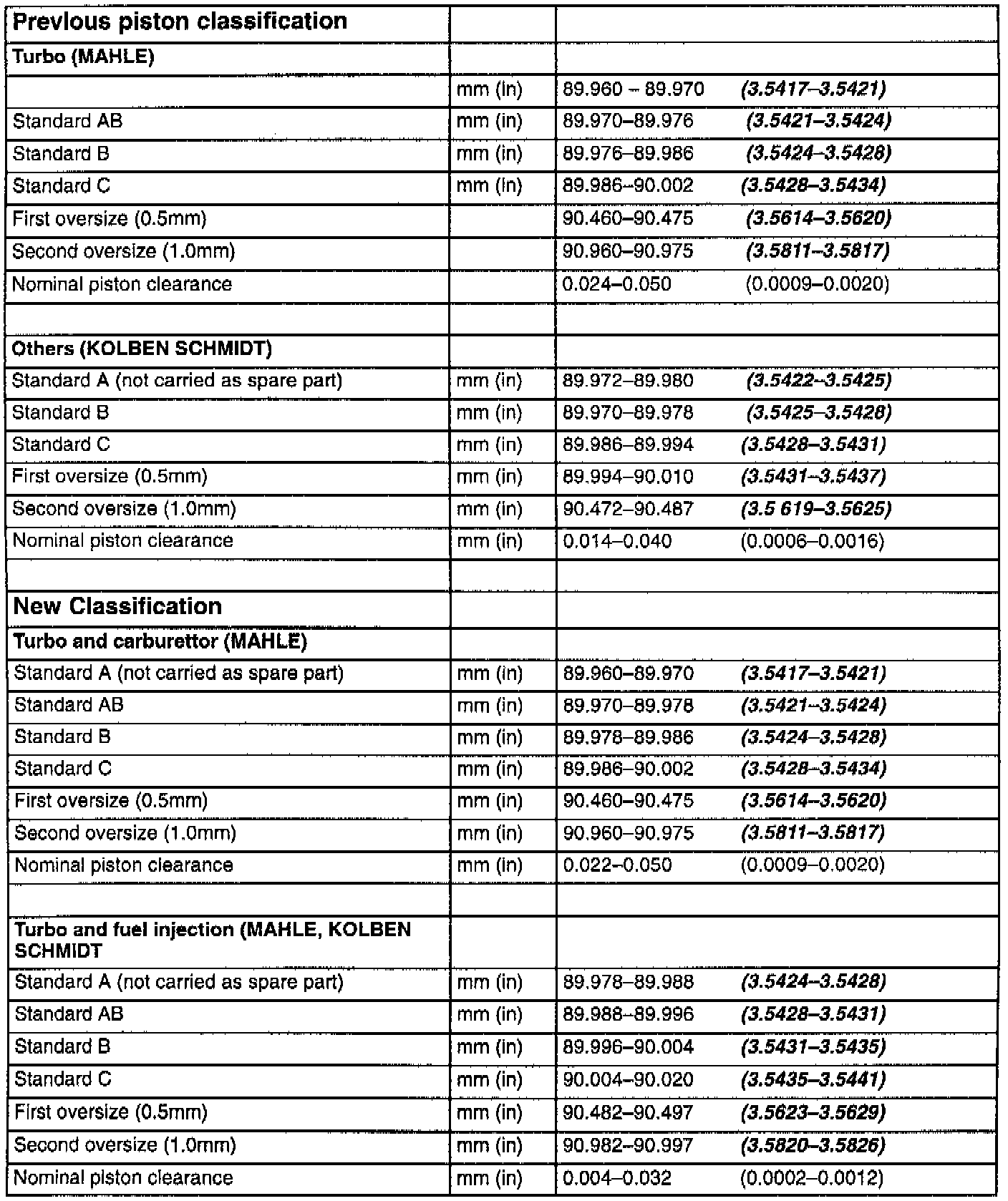

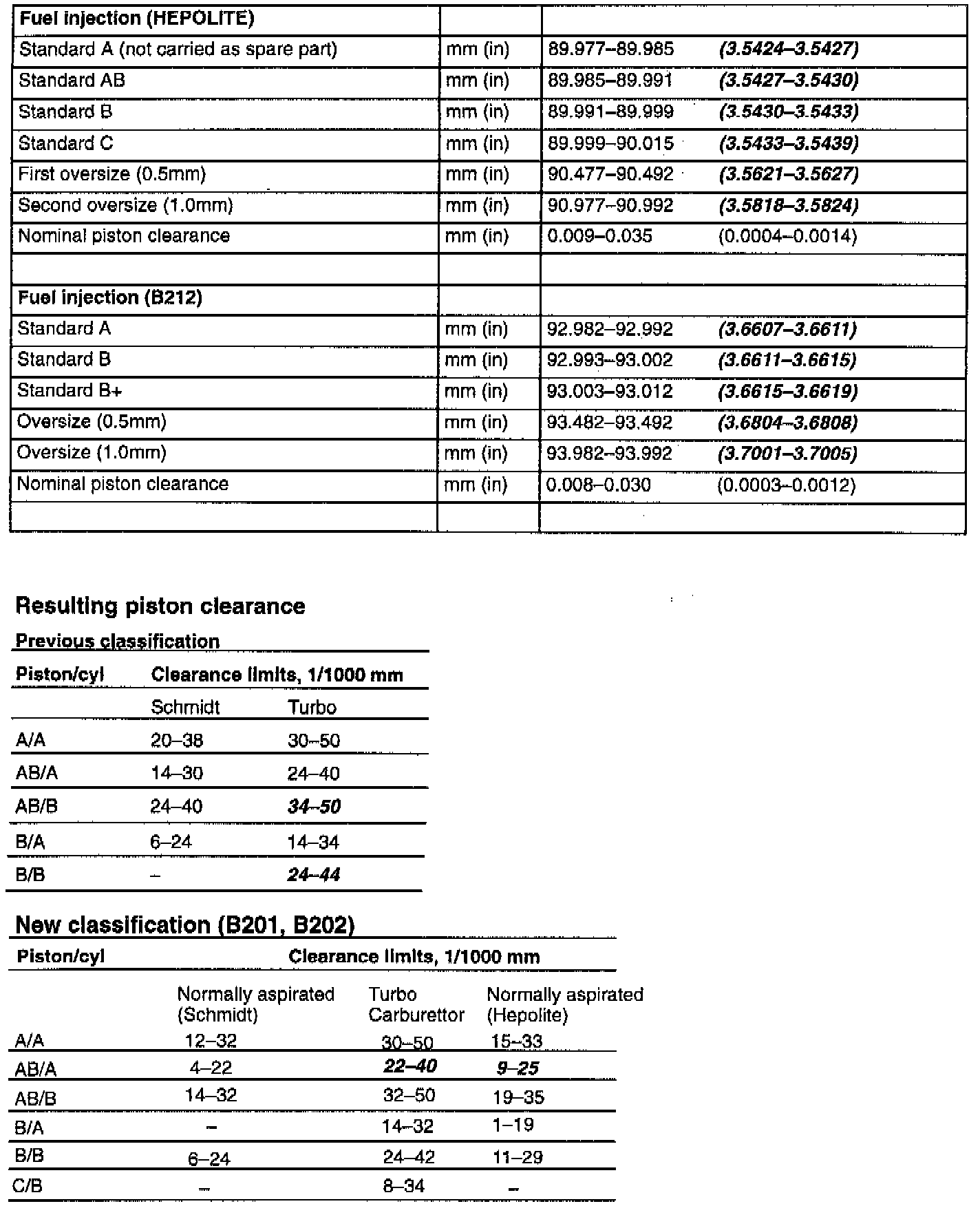

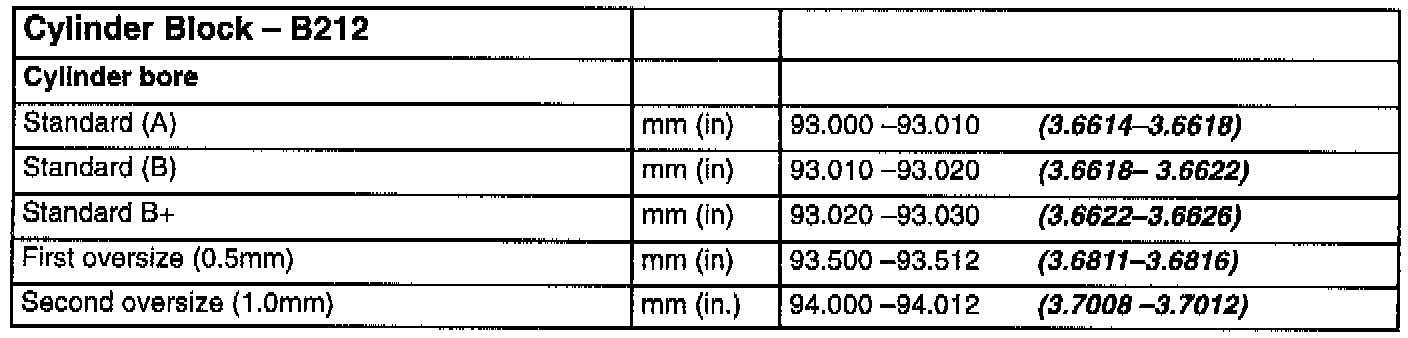

Please note the following corrections (dimensions in bold italic type) to Service Manual Section 0 Technical Data, M1981-93 (P/N 03 48 268). It has been determined that some of the dimensions shown are incorrect.

Cars Affected:

1991-93 900s with B212 engine

1994 900 Convertible with B212 engine














See Pages 022-5 through 022-9 in Service Manual Section 0 Technical Data, M1981-93.
