Engine Control Module

Motronic ECM Connector:

ECM Connector

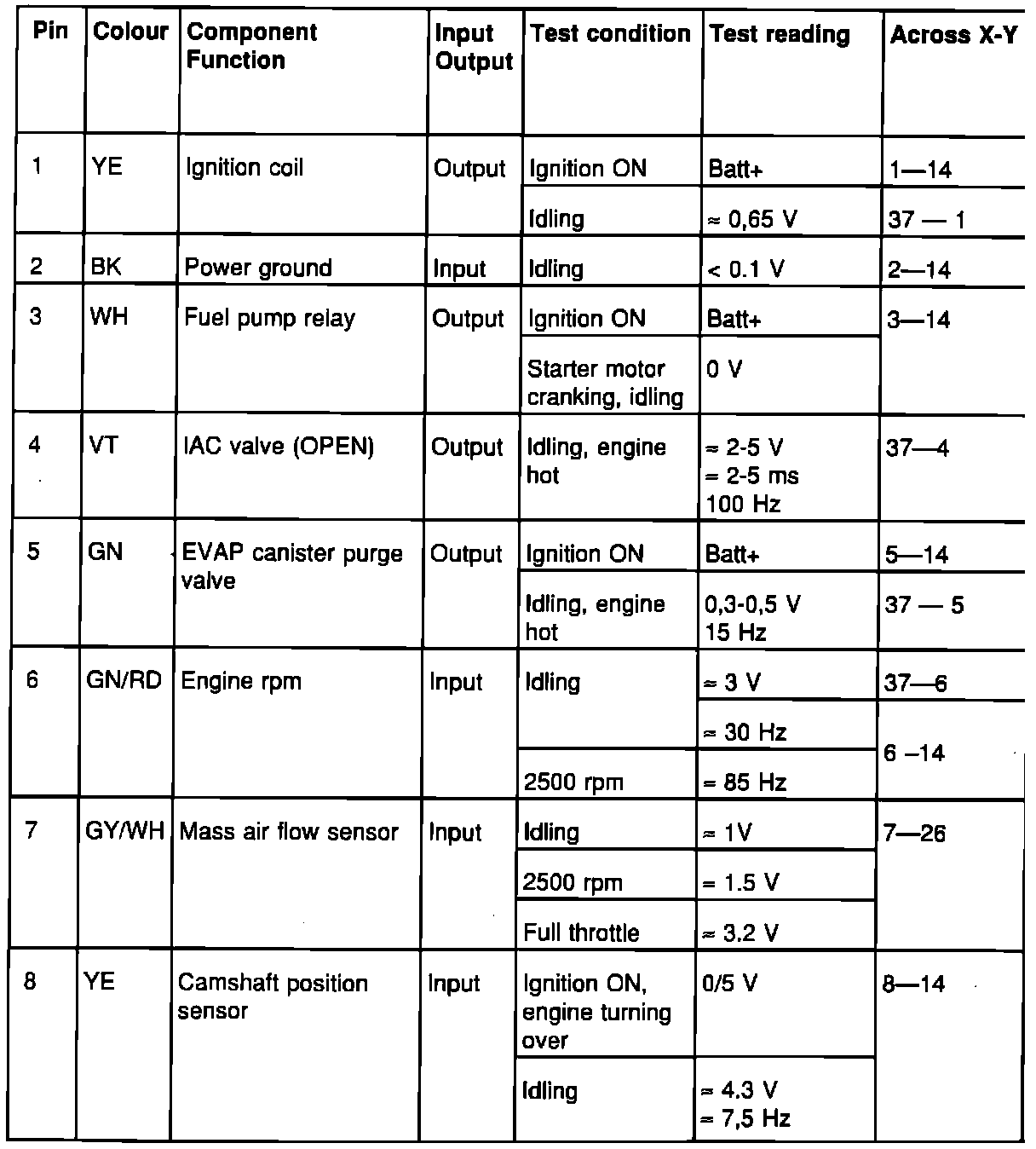

Motronic 2.10.1 ECM Pin-outs (1 - 8):

ECM Pins 1 - 8

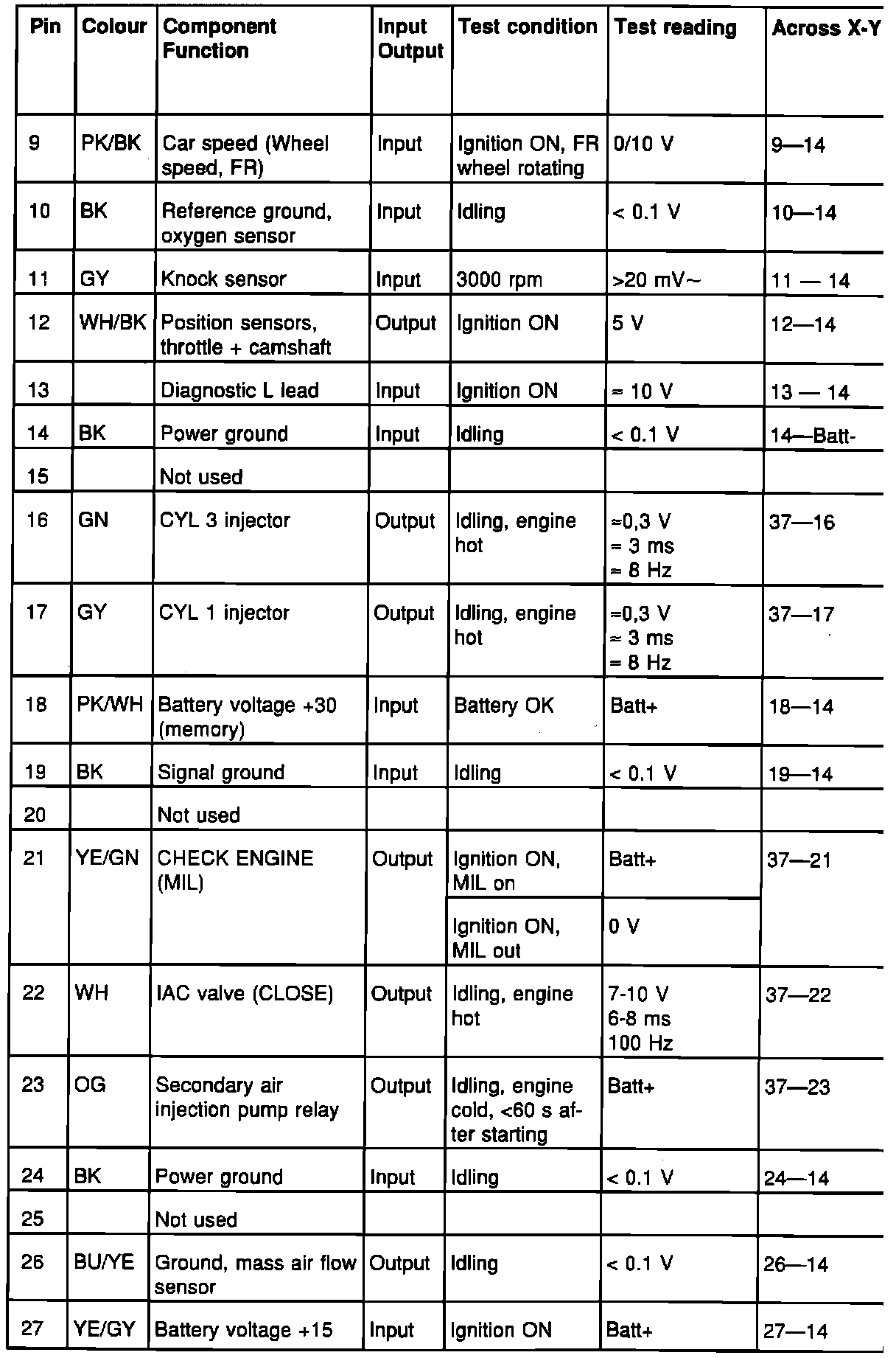

Motronic 2.10.1 ECM Pin-outs (9 - 27):

ECM Pins 9 - 27

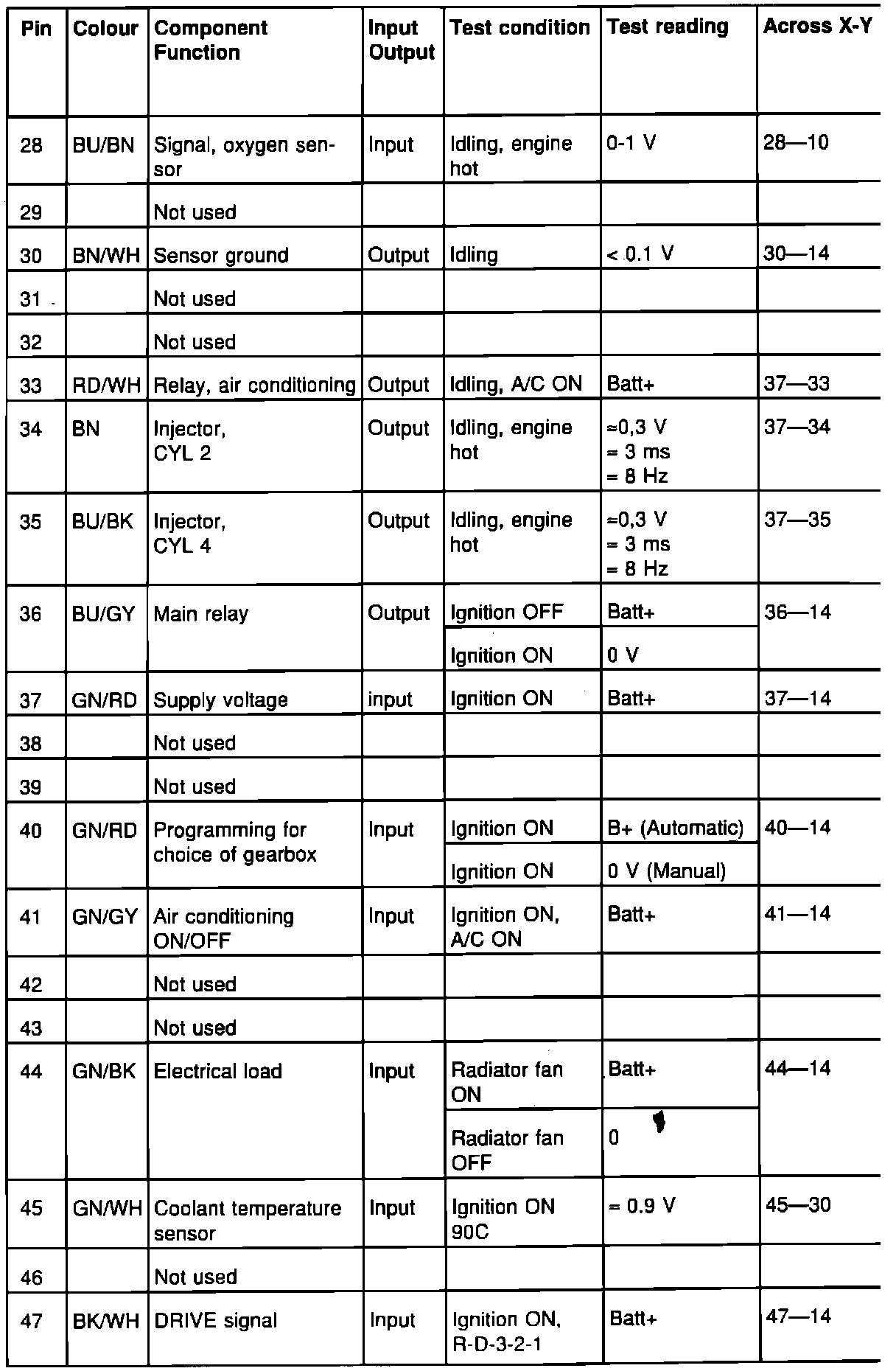

Motronic 2.10.1 ECM Pin-outs (28 - 47):

ECM Pins 28 - 47

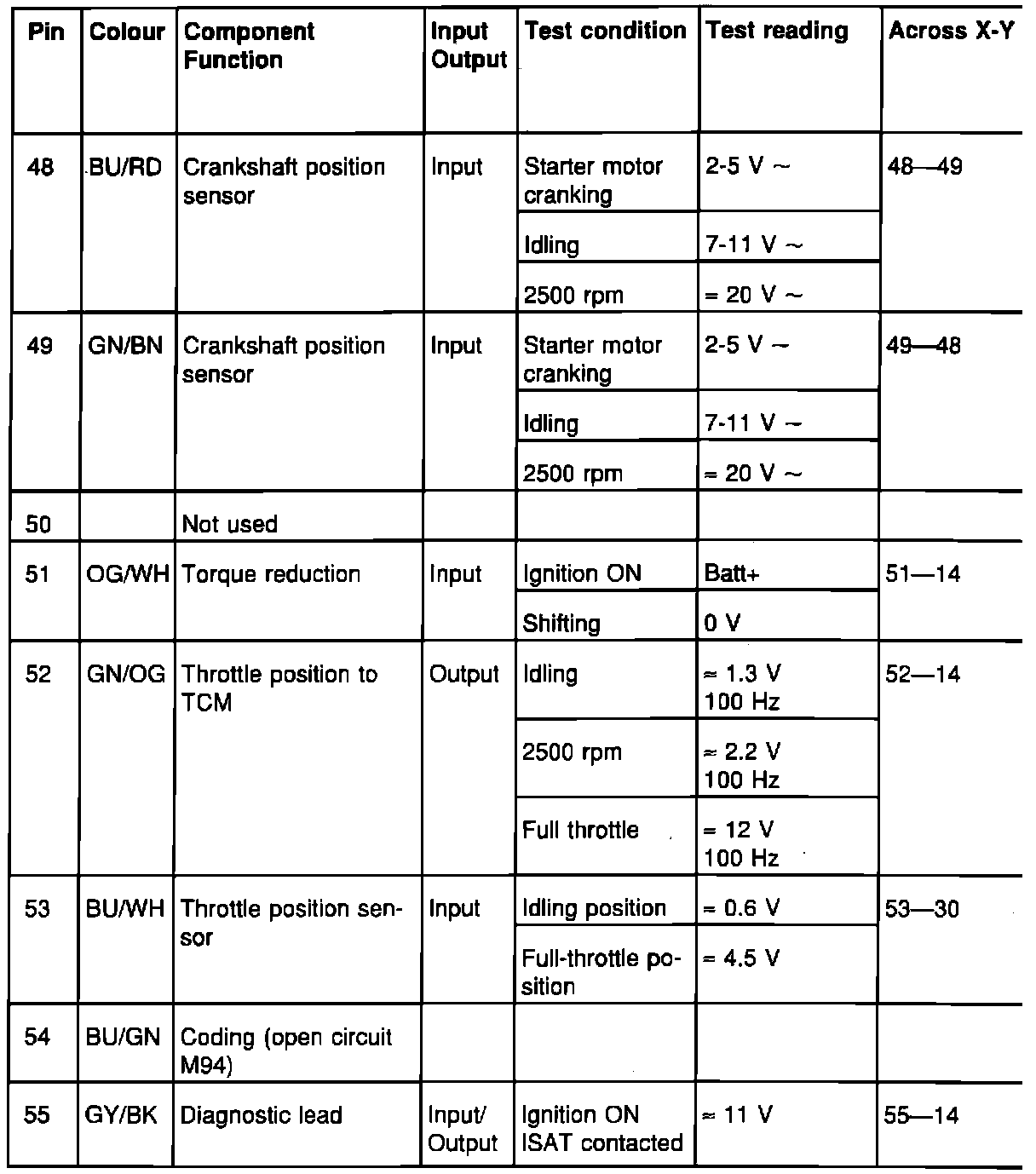

Motronic 2.10.1 ECM Pin-outs (48 - 55):

ECM Pins 48 - 55
