Home >> Renault >> 1986 >> Alliance/Encore L4-1721cc 105 CID >> Repair and Diagnosis >> Windows and Glass >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Electrical Diagrams >> Liftgate REL., PWR Windows & R. Wipe/Wash Circuit

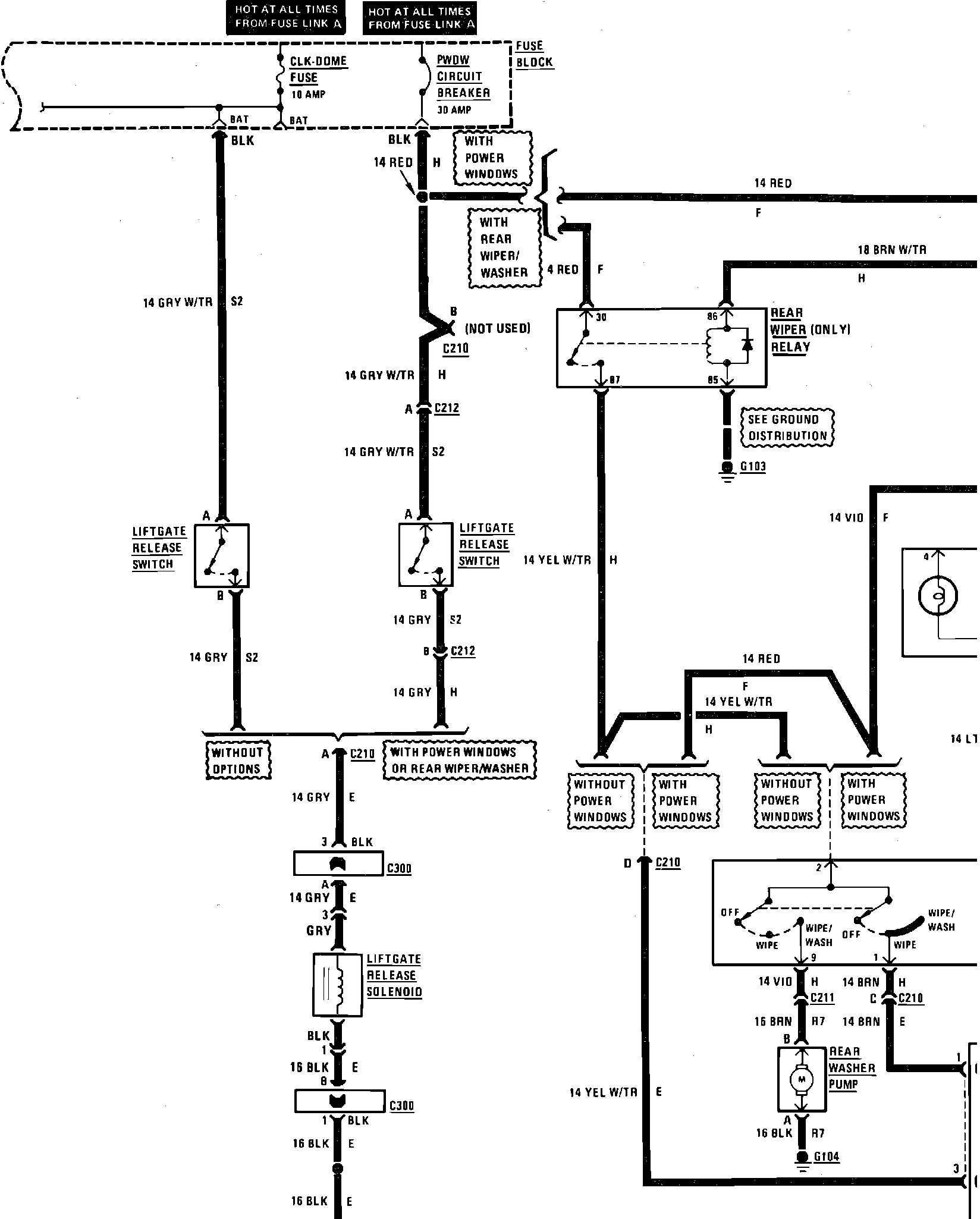

Liftgate REL., PWR Windows & R. Wipe/Wash Circuit

;�`:
