Ignition Ballast Resistor: Locations

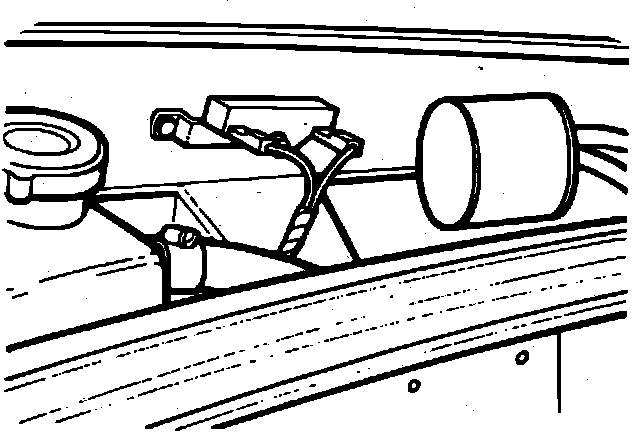

Ballast Resistor.:




RH Side Of Plenum Chamber

Applicable to: Alliance & Encore w/Throttle Body Injection
