Home >> Renault >> 1986 >> Alliance/Encore L4-1721cc 105 CID >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams >> Encore

Encore

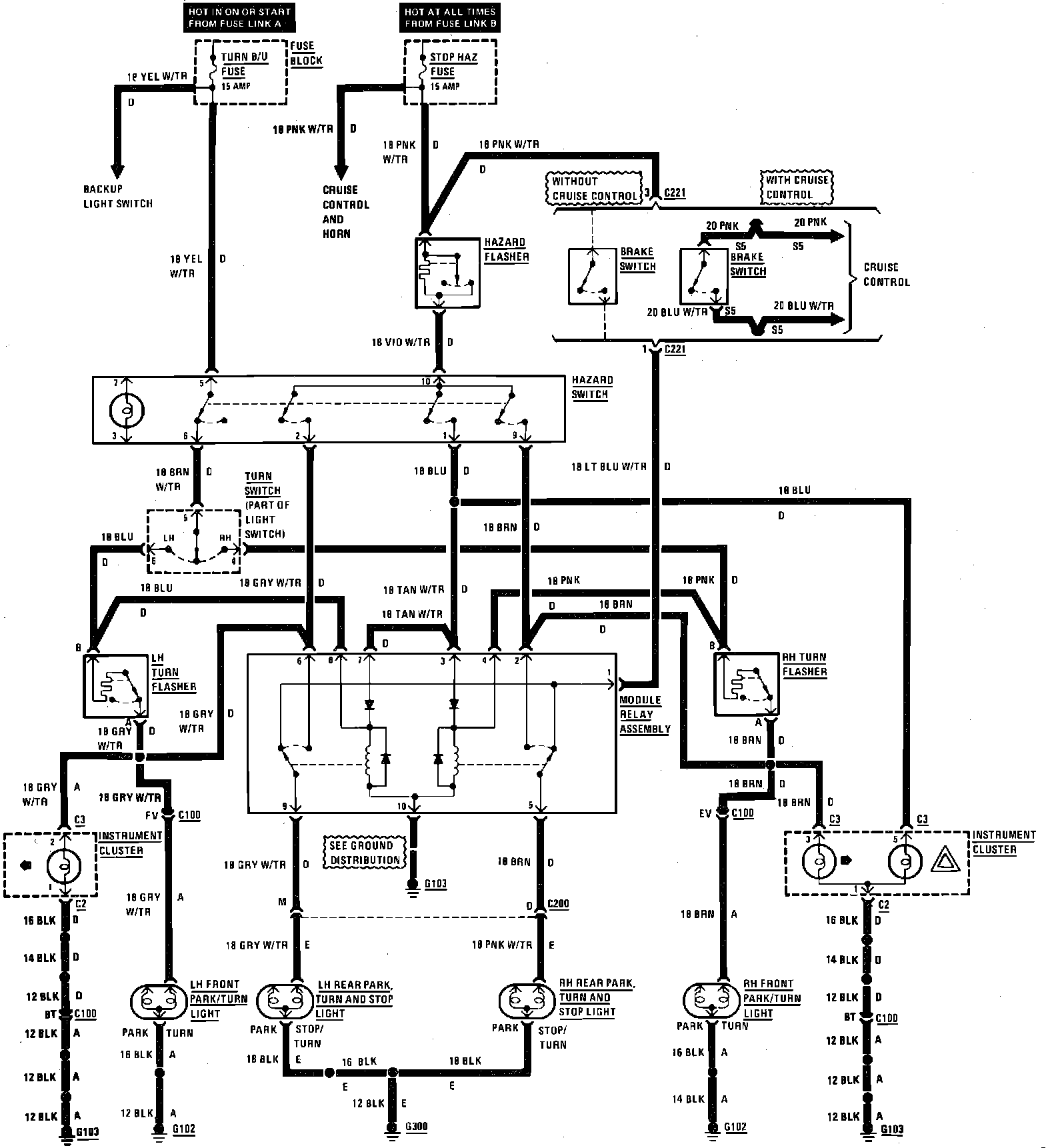

Fig. 15 Hazard, stop, & turn signal lights wiring circuit:
