Alliance/Encore L4-1721cc 105 CID
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution & Starter Wiring Circuit
Power Distribution & Starter Wiring Circuit

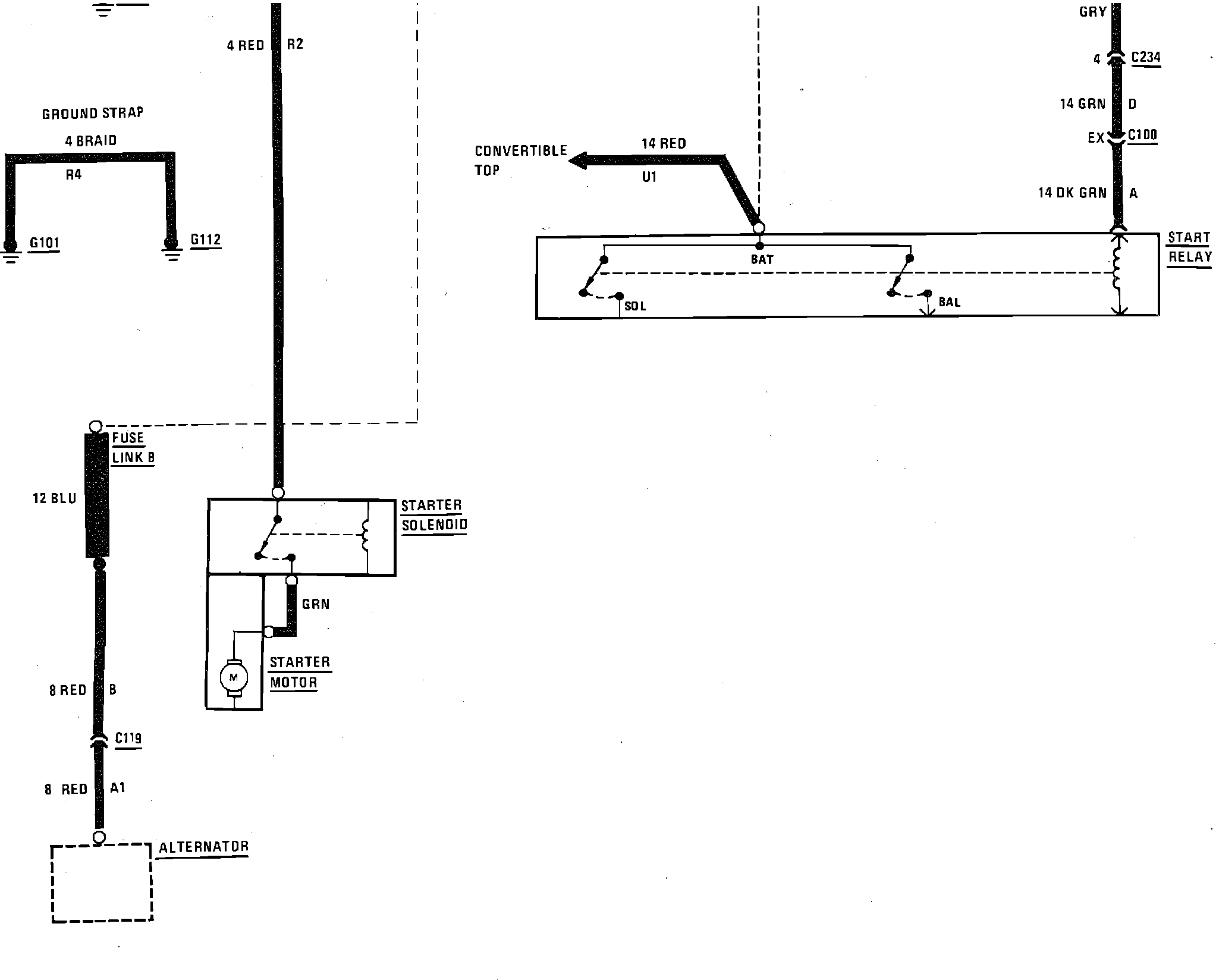

'j�mj°jw�jF�j��j��jFig. 24 Power distribution & starter wiring circuit:
