1986
>>
Alliance/Encore L4-1721cc 105 CID
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Data Link Connector
>>
Diagnostic Connectors W/Multi-Point Fuel Injection System
Diagnostic Connectors W/Multi-Point Fuel Injection System

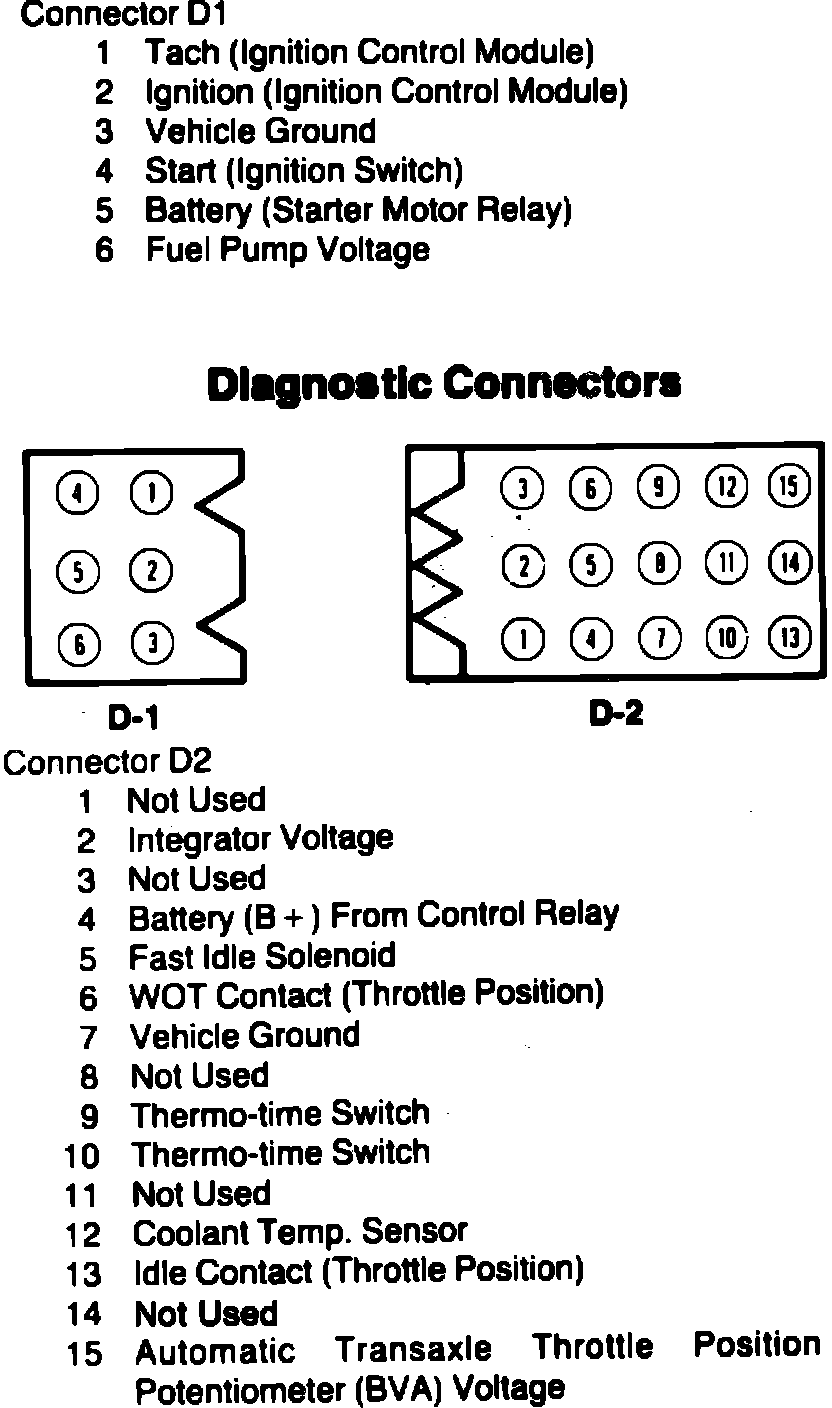

Fig. 3 Diagnostic connectors.:
