Home >> Porsche >> 2004 >> 911 Turbo AWD (996) F6-3.6L Turbo >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Component Tests and General Diagnostics >> Connector Assignment

Connector Assignment





Connector Assignment Instrument Cluster

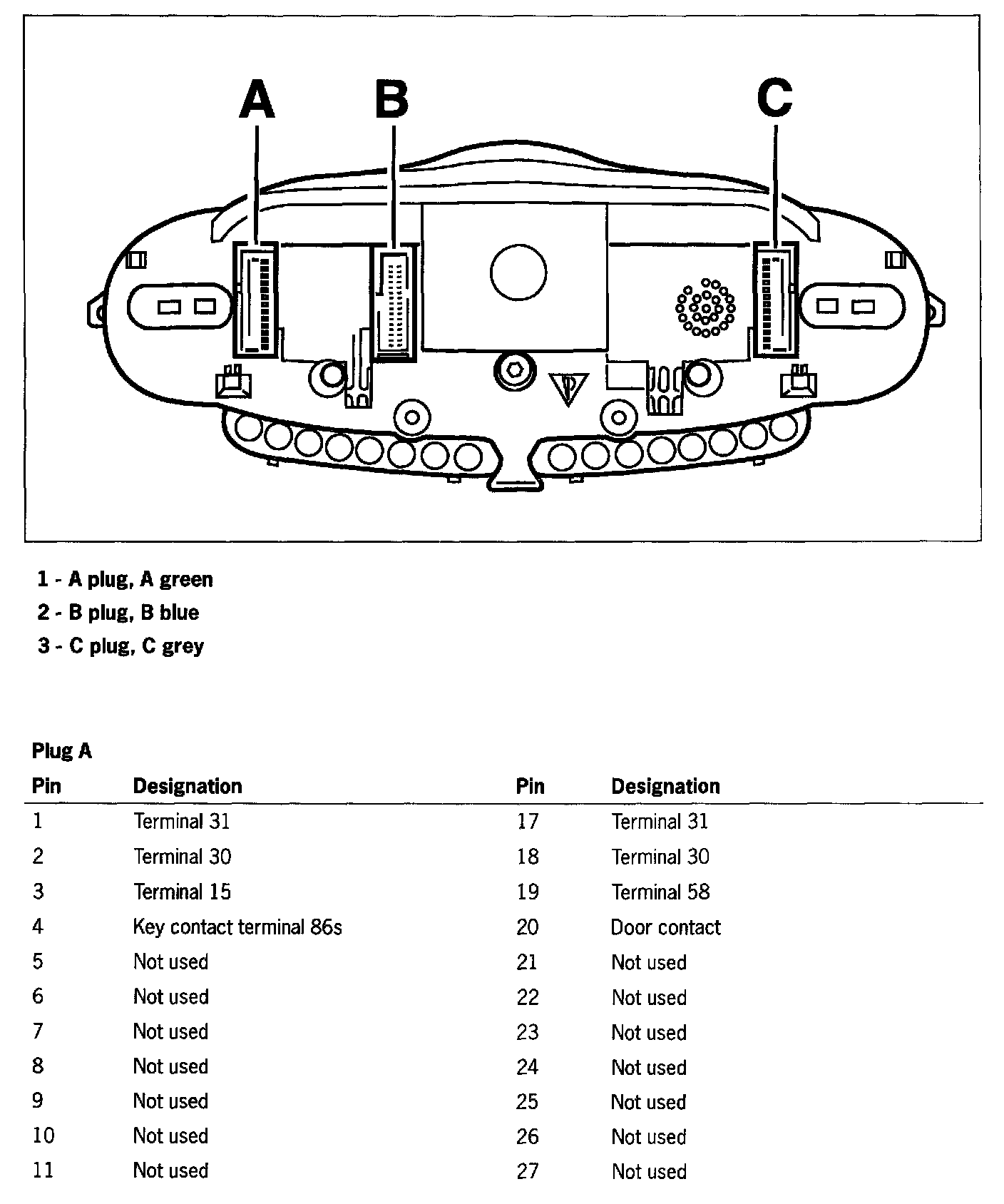

Instrument cluster view and Plug A




Plugs A, B, and C

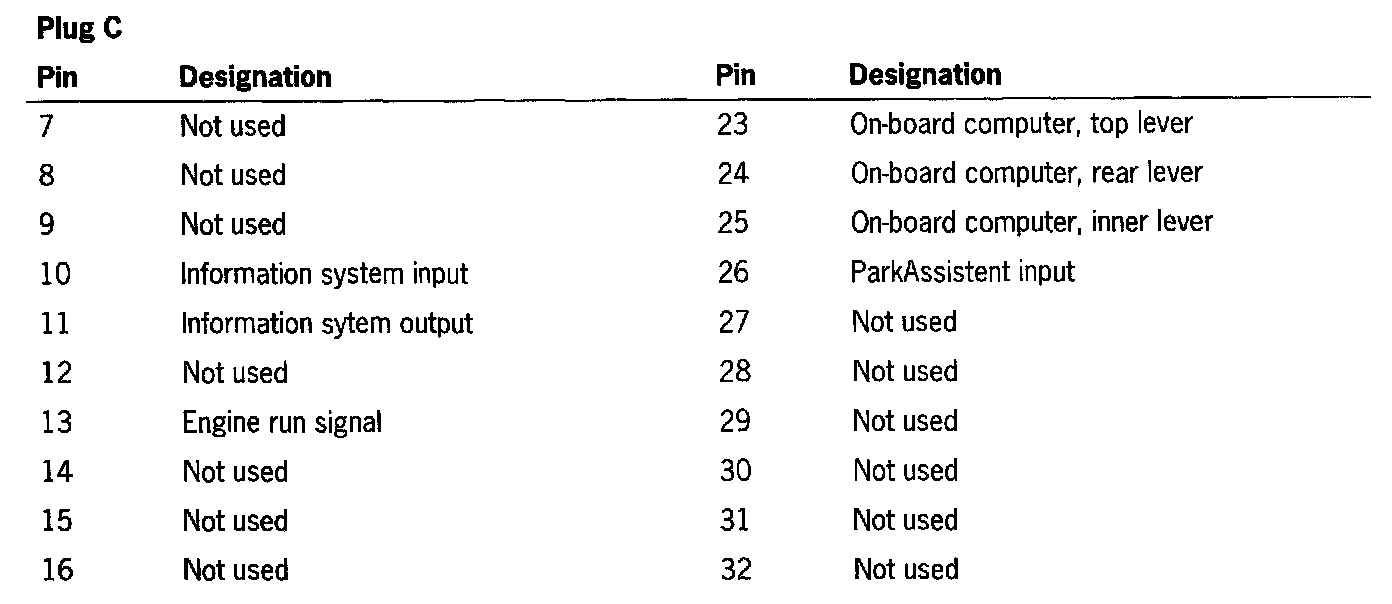

Plug C
