Telephone - Sheet 15B

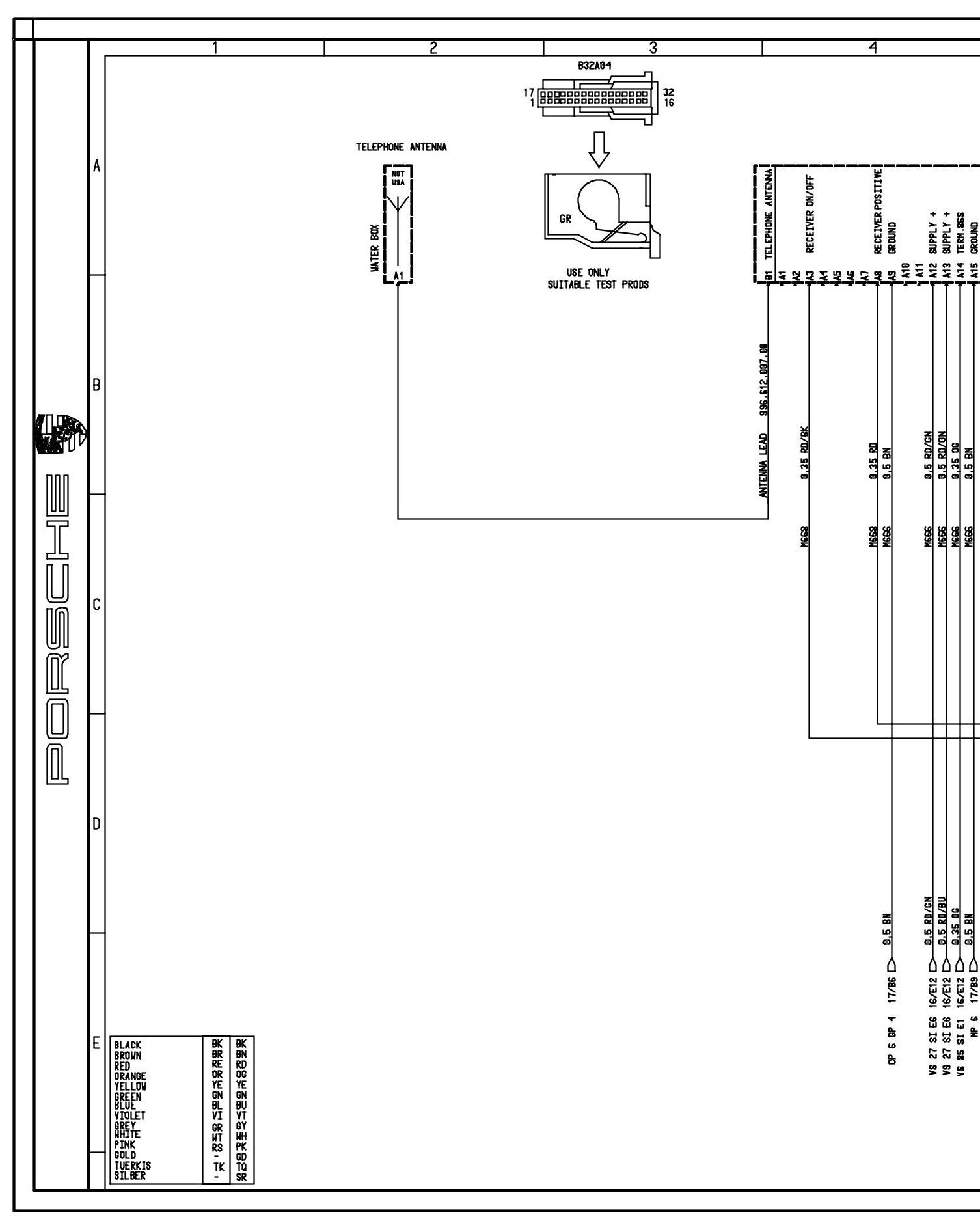

Telephone - Sheet 15B (Part 1):

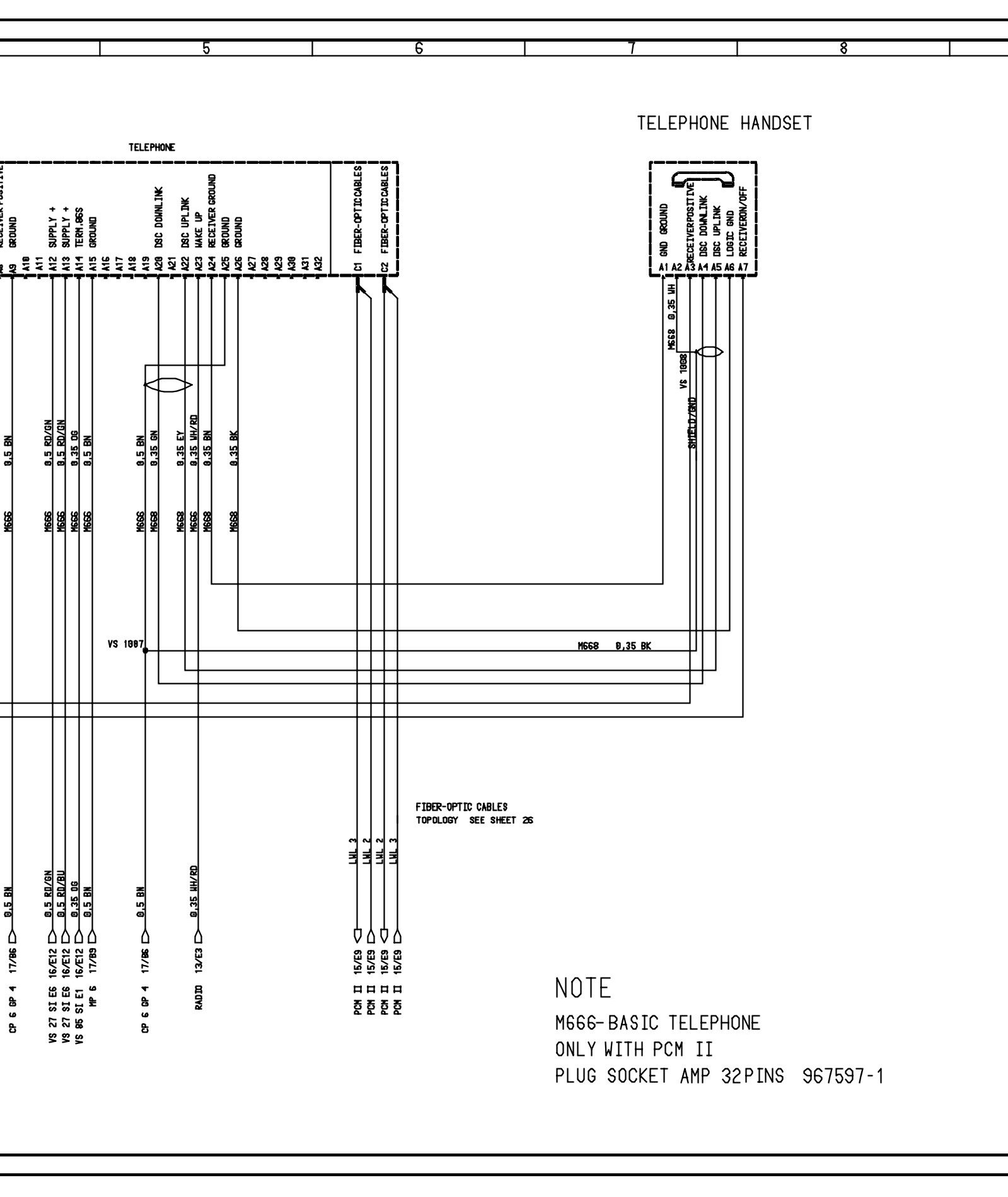

Telephone - Sheet 15B (Part 2):



Telephone - Sheet 15B (Part 3):
