Home >> Porsche >> 2004 >> 911 Turbo AWD (996) F6-3.6L Turbo >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Service and Repair >> Procedures >> Outside Rearview Mirror >> Disassembling and Assembling

Disassembling and Assembling



Disassembling And Assembling The Rearview Mirror

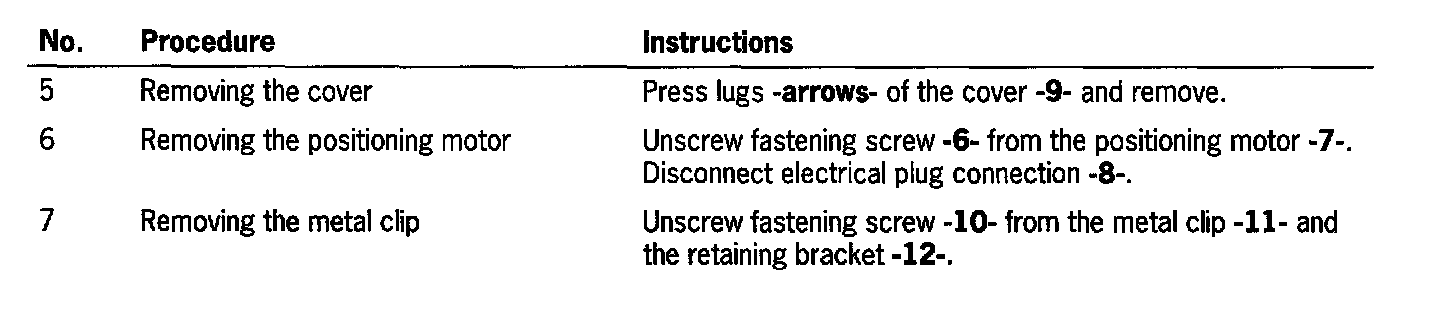

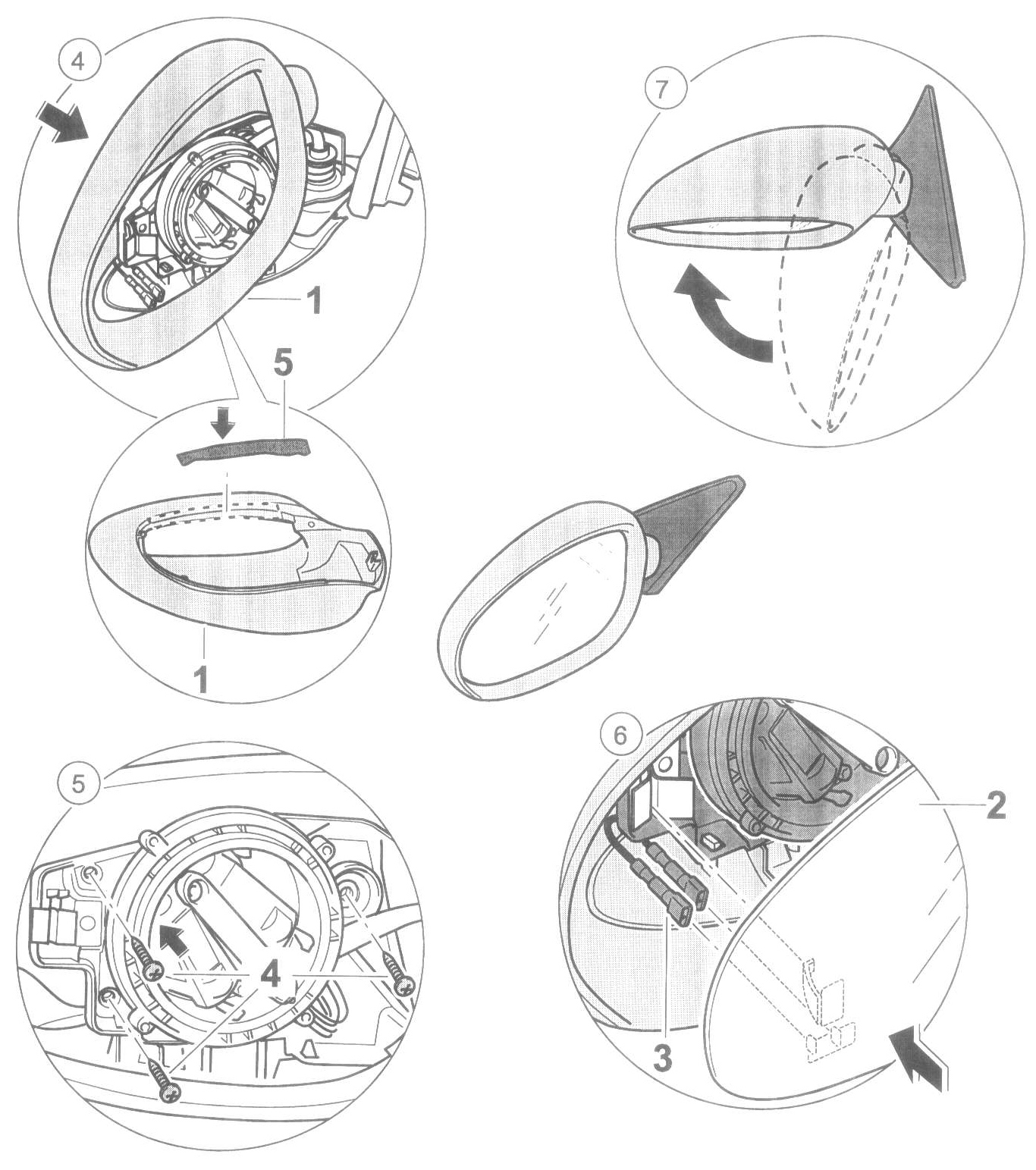

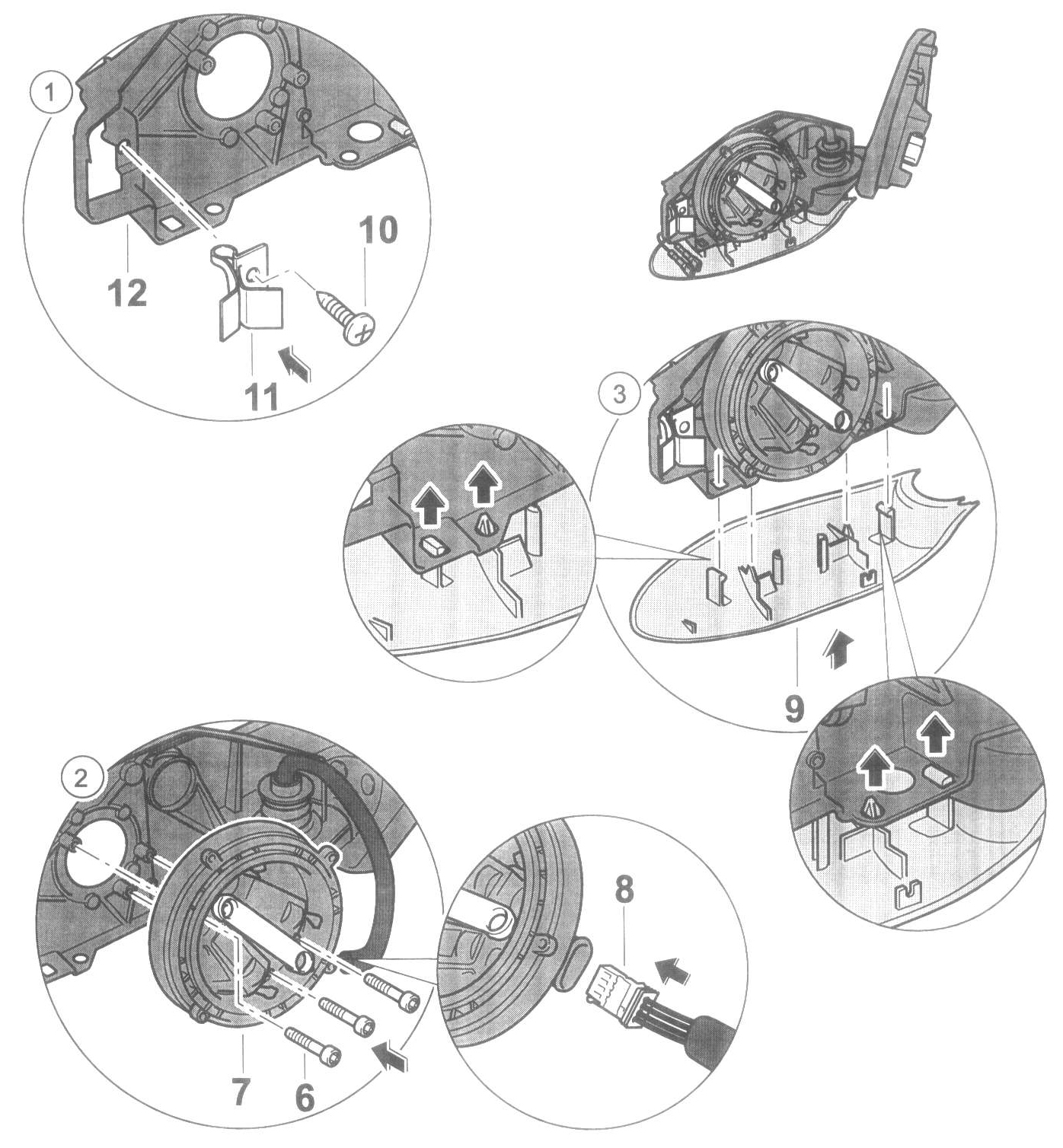

Disassemble The Rearview Mirror

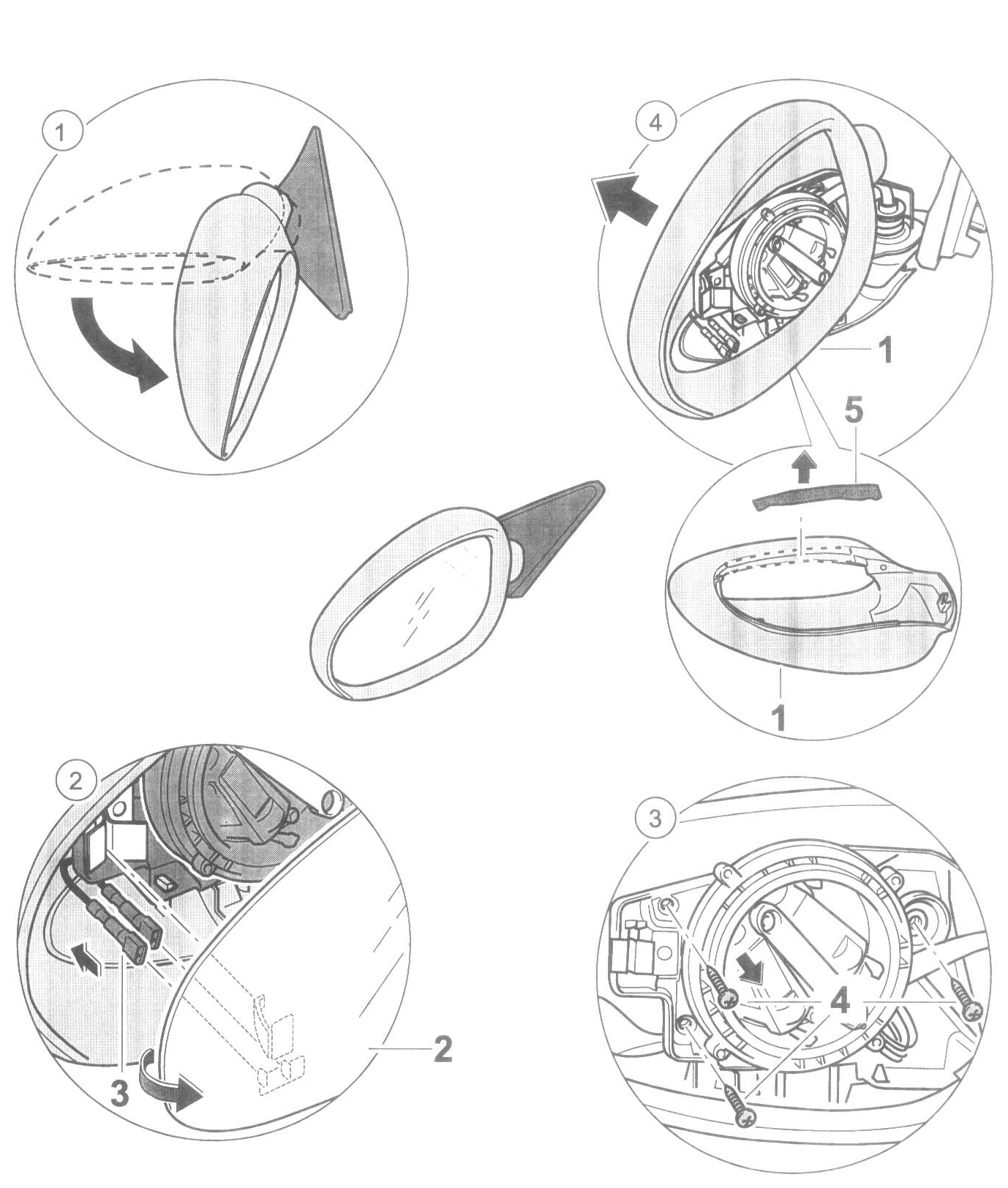

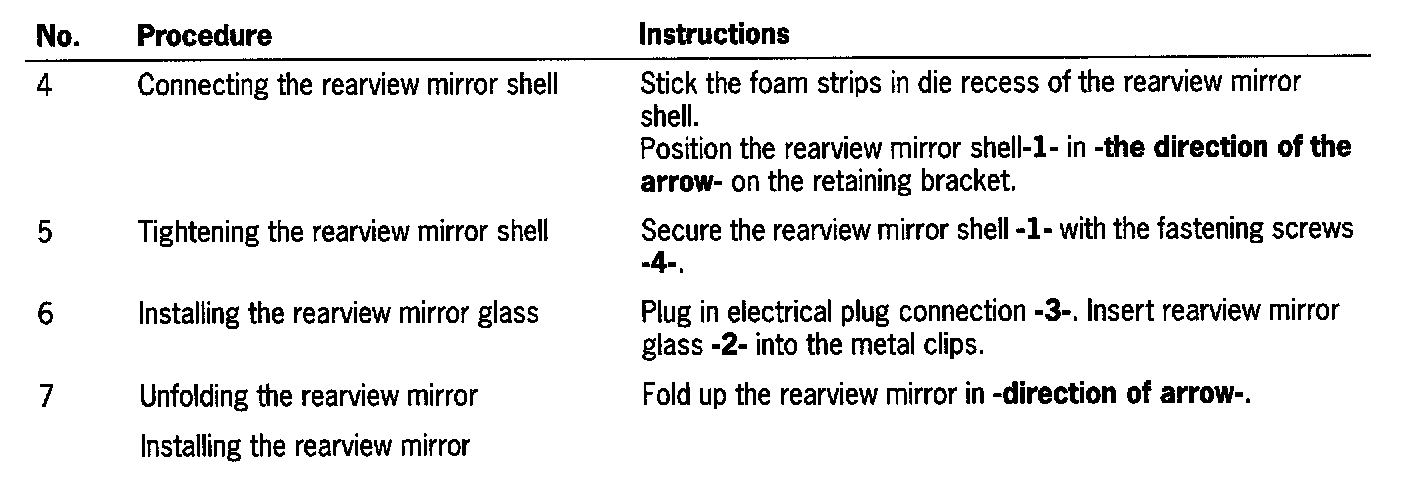

Assemble Rearview Mirror
