Home >> Porsche >> 2003 >> 911 Turbo AWD (996) F6-3.6L Turbo >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations >> Tiptronic System G1XX

Tiptronic System G1XX

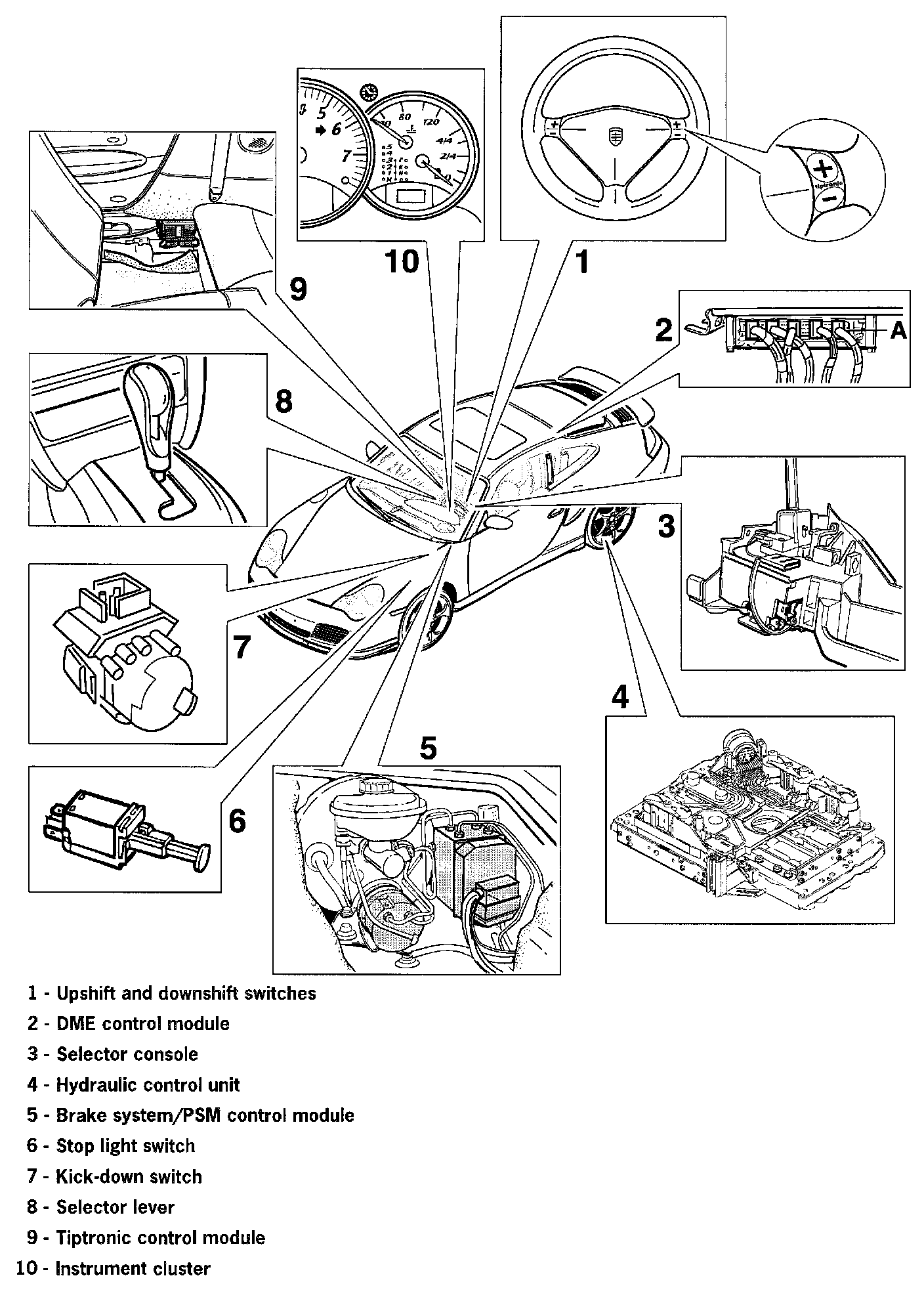

Component Arrangement





Components, location on vehicle
