911 Speedster F6-3600cc 3.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wheel Hub
Wheel Hub
Rear

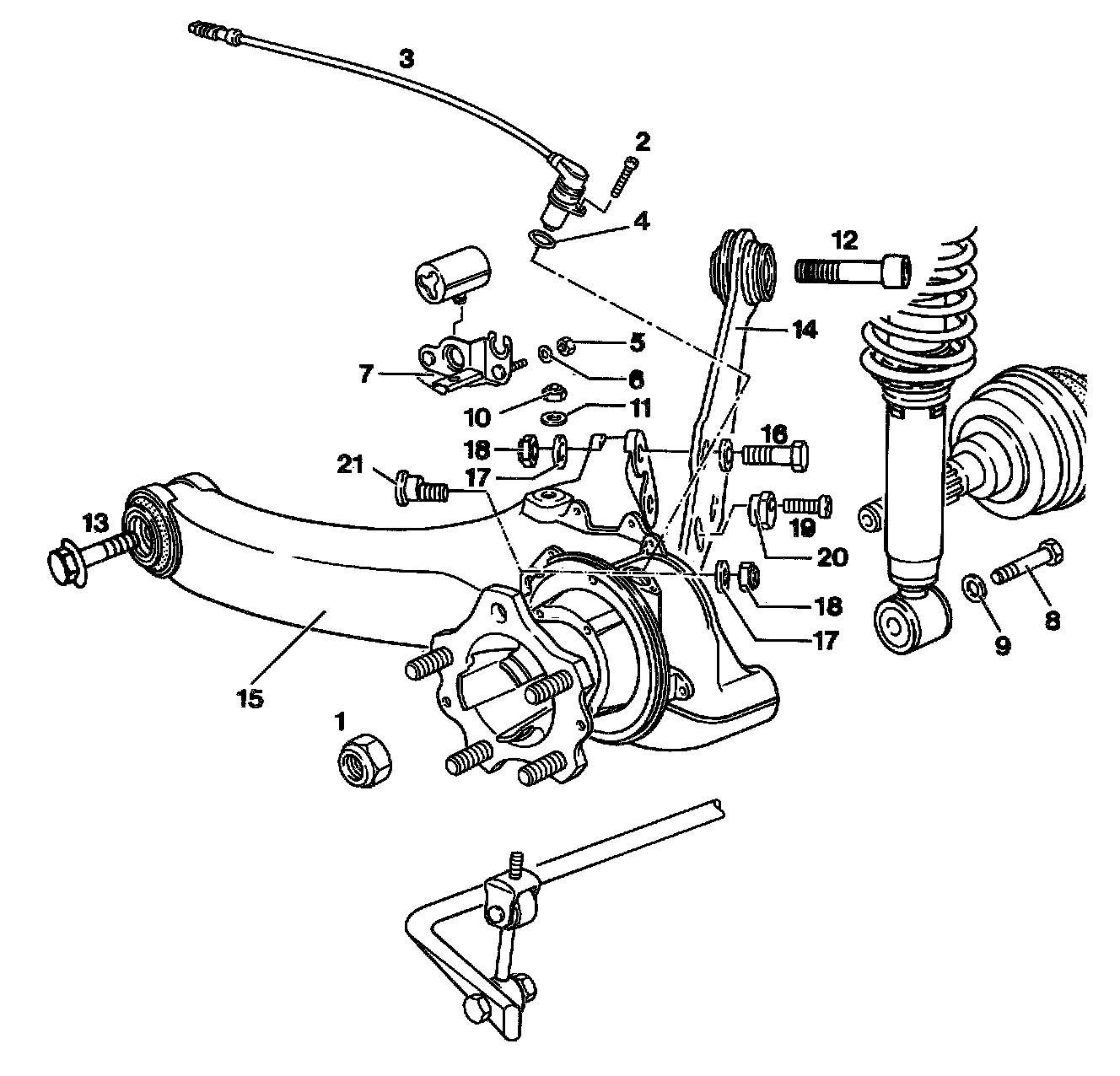

Exploded View Of Rear Wheel Suspension:

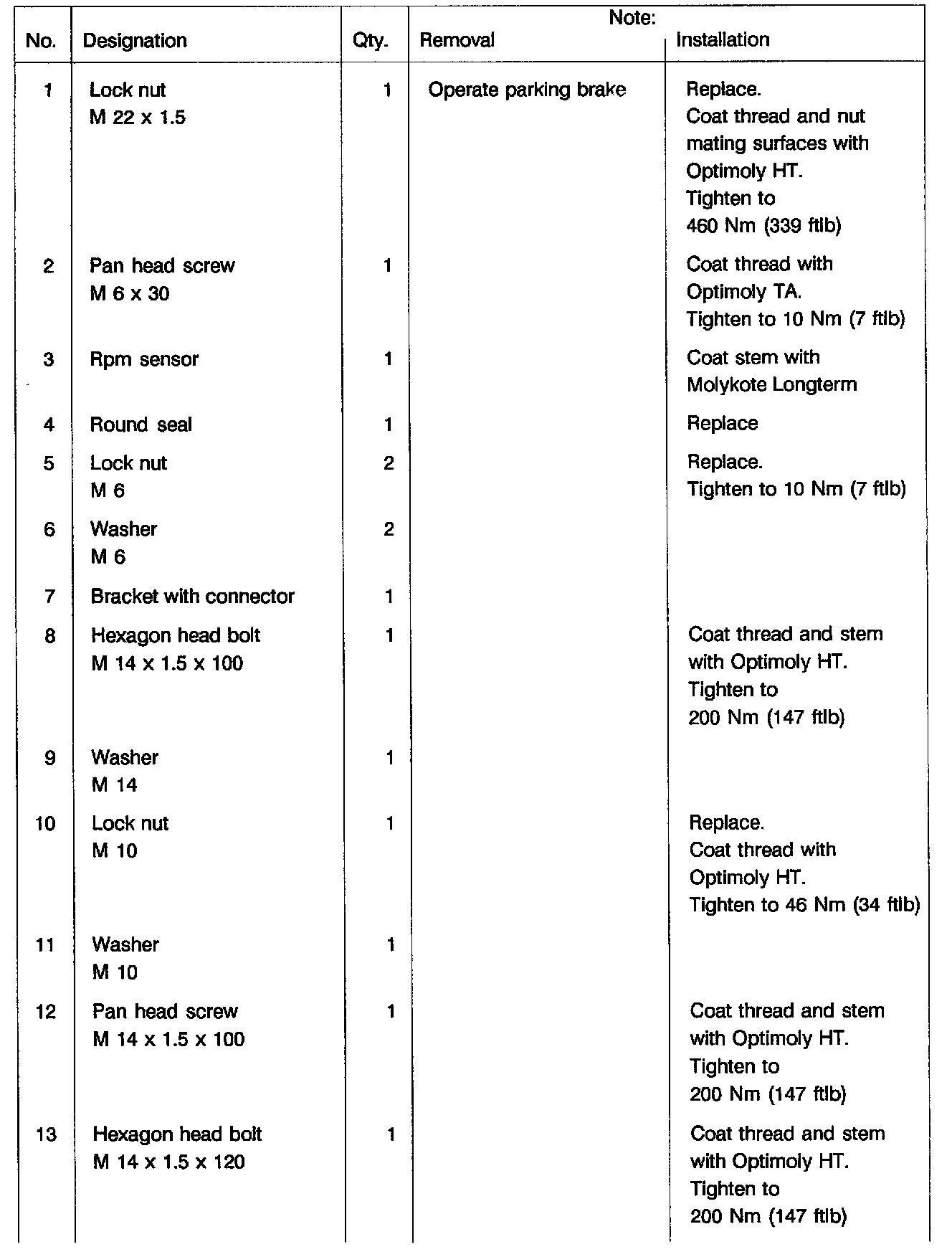

Components 1 - 13:

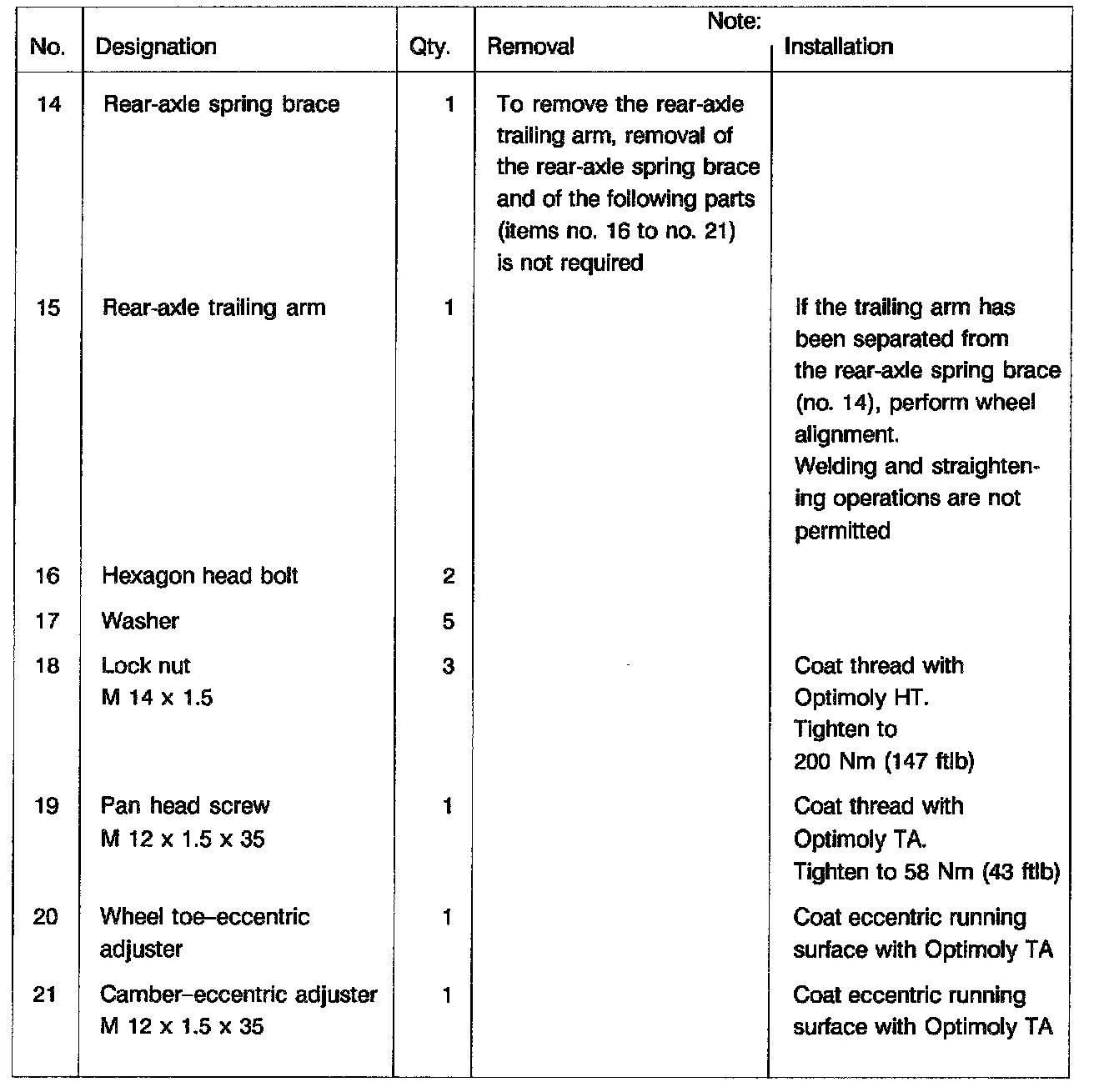

Components 14 - 21:
