MVC 5 Speed - Manual Transmission

Manual Transmission Shift Lever Cable Adjustment

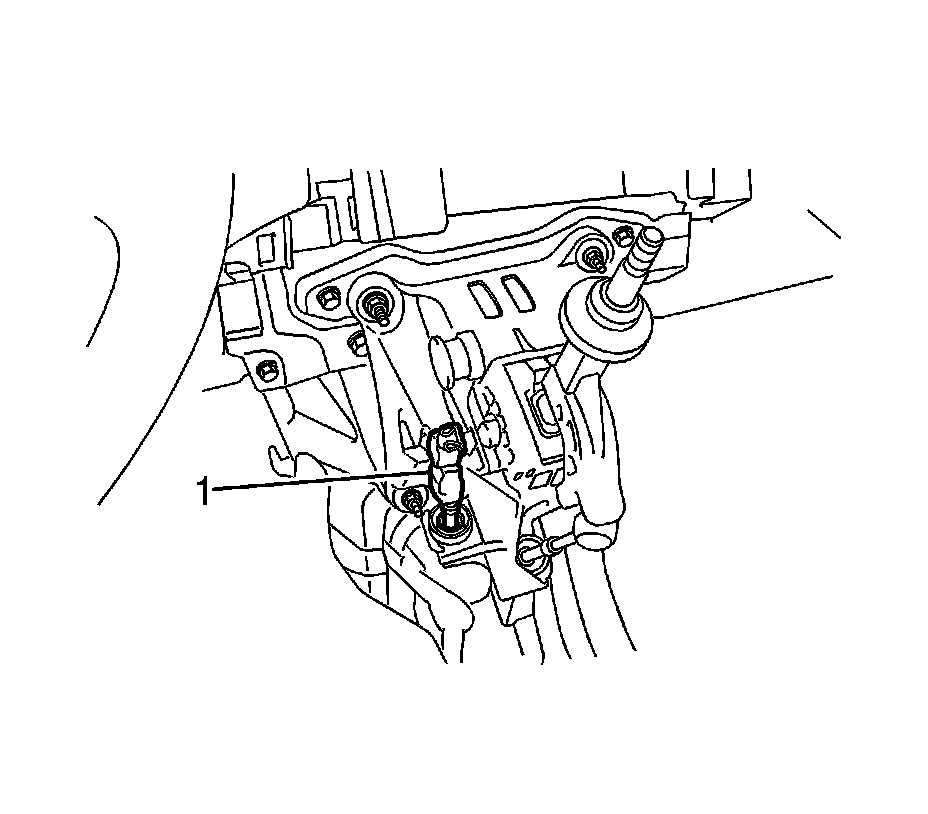

1. Disconnect the shift lever cable (1) from the shift lever assembly.

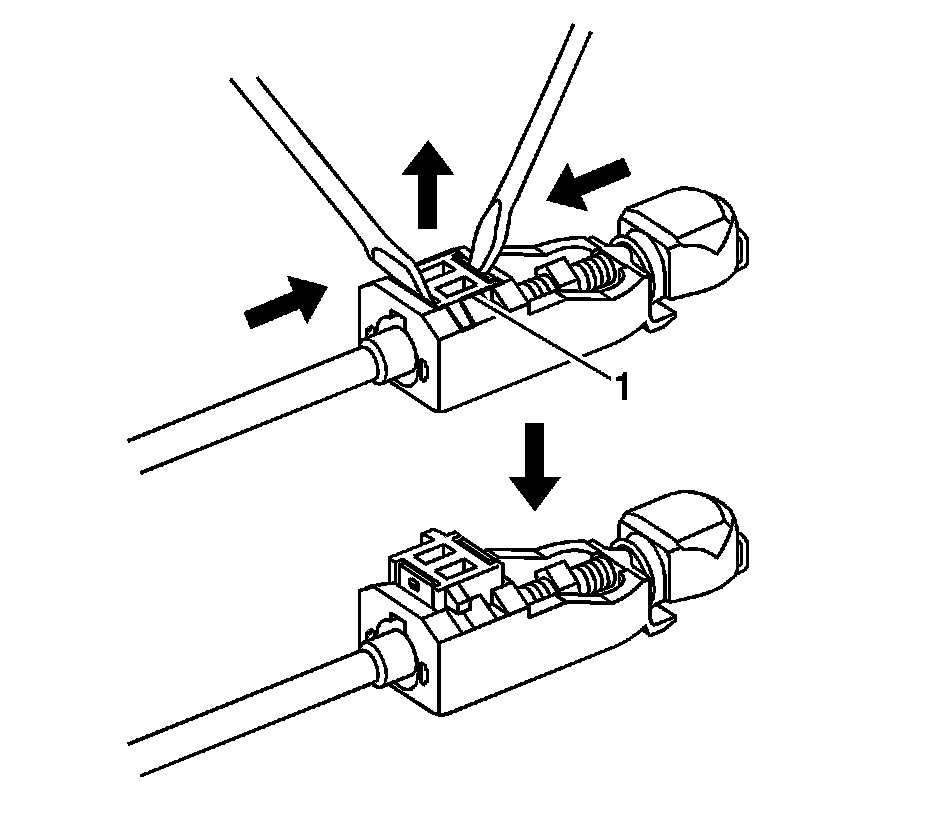

2. Using a screwdriver, pull the lock piece (1) out from the adjuster case.






Note:
* Ensure that the lock piece is protruding from the adjuster case.
* Make sure to adjust the length at the neutral shift position.

3. Install the shift lever cable to the shift lever assembly.

Note: Securely press in the lock piece until the lock engages.

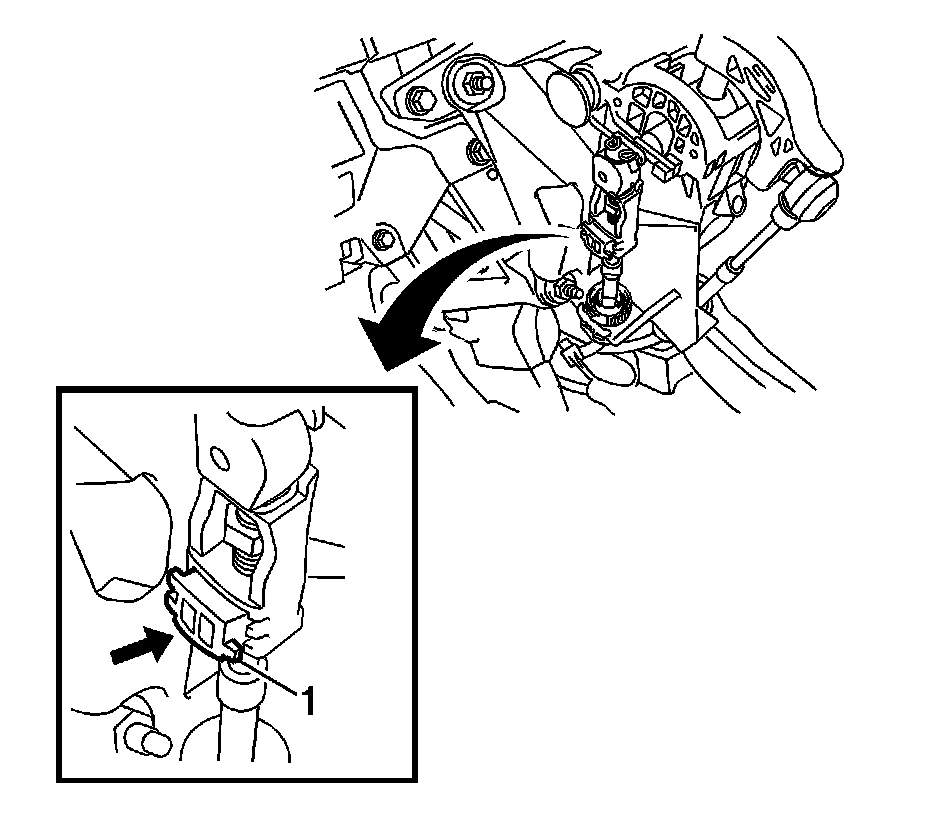

4. Press in and lock the lock piece (1) to the adjuster case.
