38. Rear Carrier Installation

Rear Carrier Installation




1. Coat the thrust bearings with ATF WS.

Note: Ensure that the parts are installed in the correct order and direction.

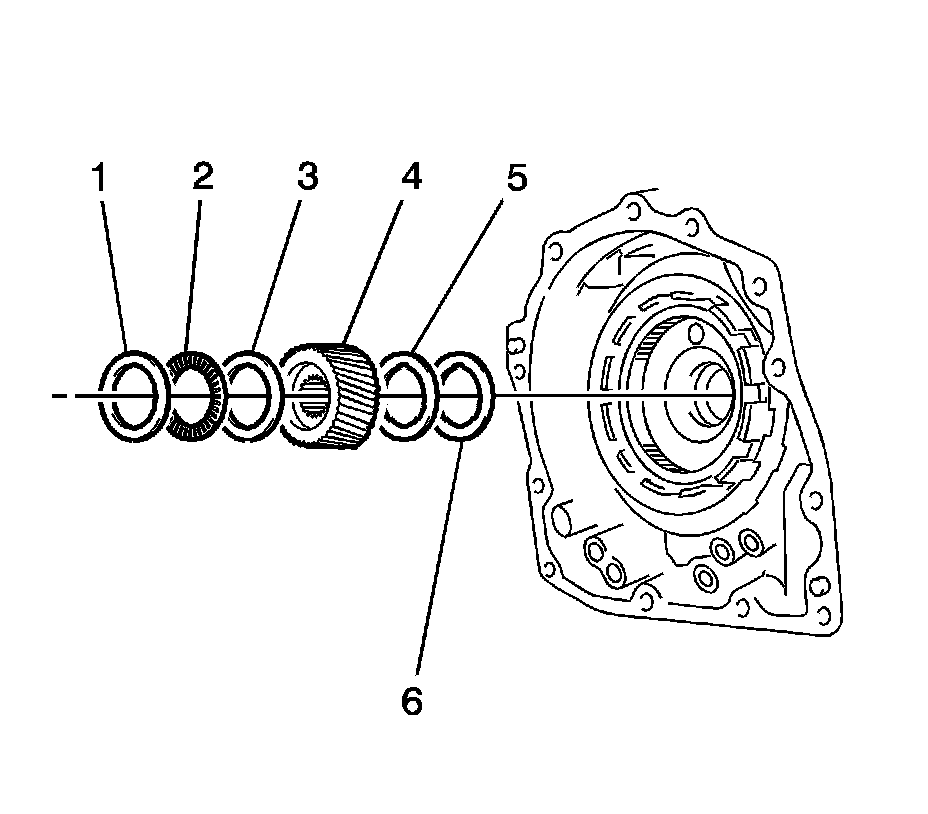

2. Install the sun gear (4), sun gear thrust needle roller bearings, sun gear thrust bearing races to the rear carrier case. Refer to Transmission General Specifications (Transmission General Specifications)

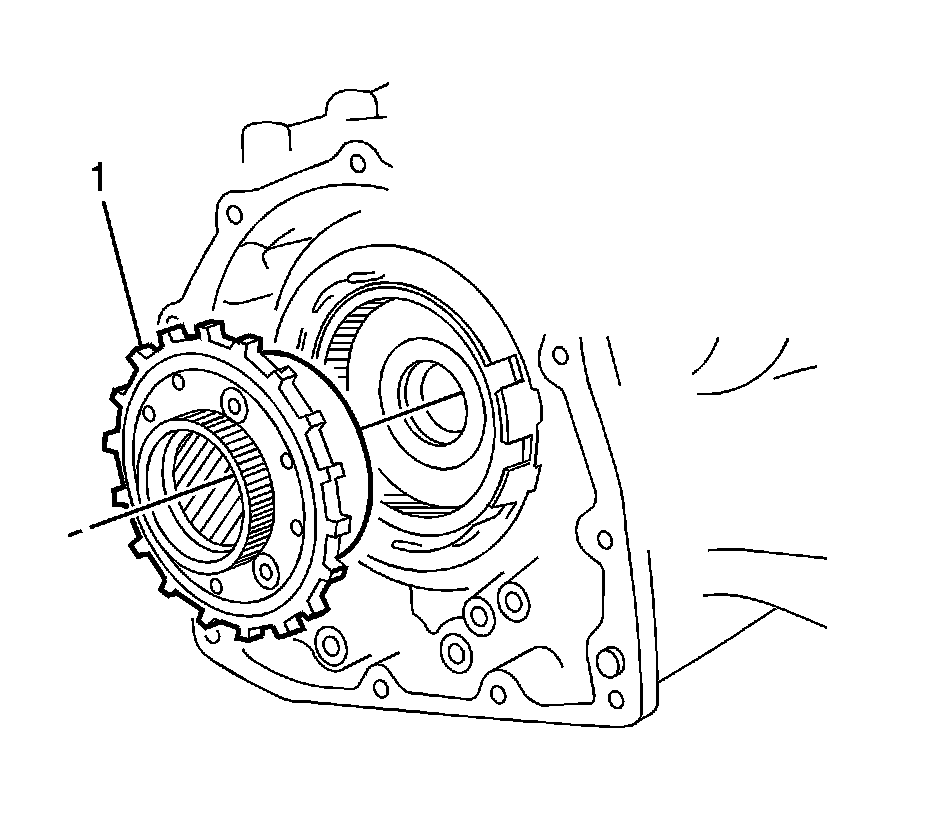

3. Install the rear carrier assembly (1) to the front carrier.

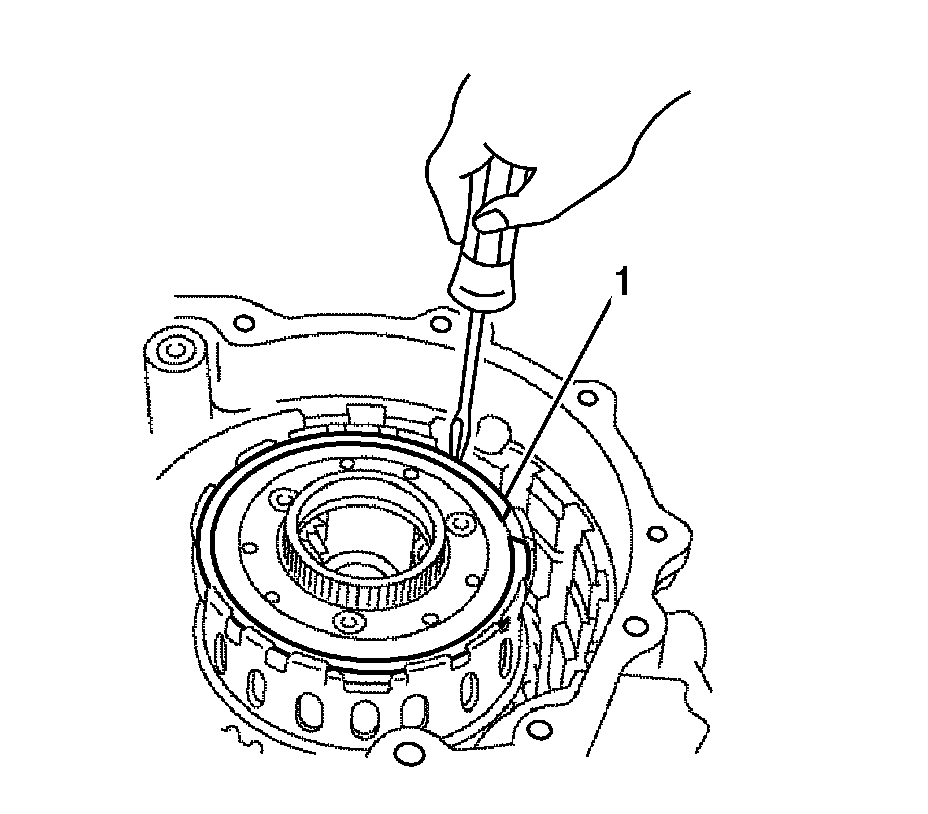

4. Using a screwdriver, install the snap ring (1).
