14. Case Cover Removal

Case Cover Removal

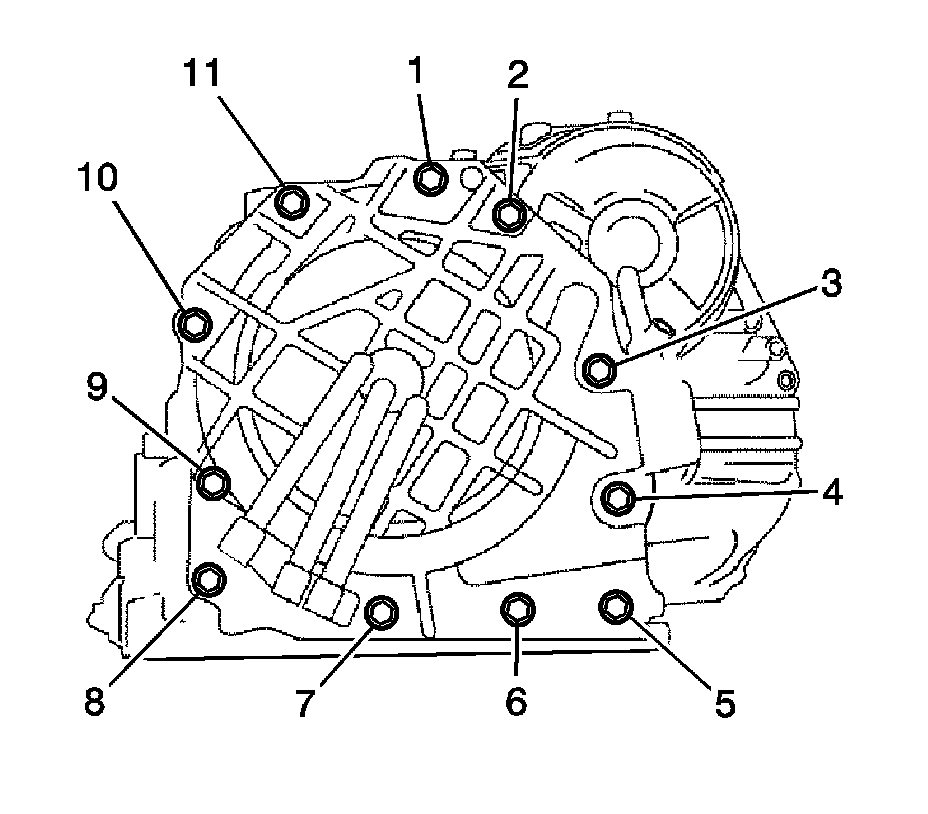

1. Remove the bolts (1-11).
2. Tap on the circumference of the case cover with a plastic hammer to remove the transmission case cover from the transaxle case.




3. Remove the fluid pressure test hole plugs and seals from the transmission case cover.
4. Remove the O-rings from the transaxle case plugs.
