6. Case Cover Removal

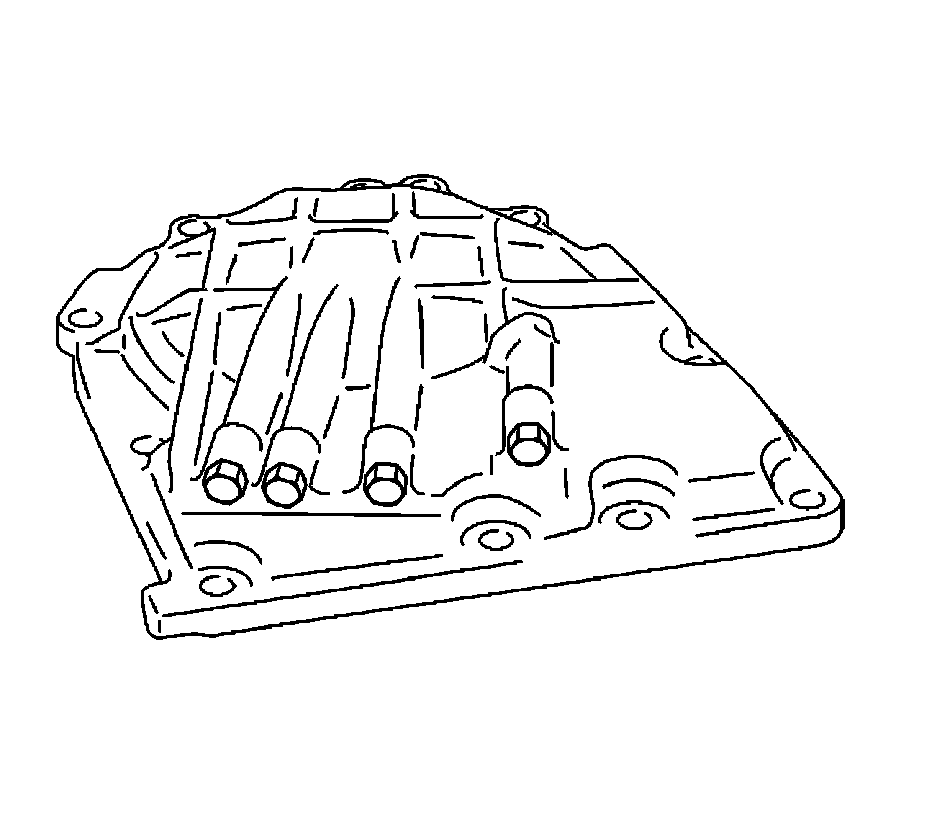

Case Cover Removal




1. Remove the bolts.
2. Tap around the circumference of the transmission case cover with a plastic hammer to remove.




3. Remove the fluid pressure test hole plugs from the transmission case cover.
4. Using a screwdriver, remove the O-rings from the fluid pressure test hole plugs.
