17. Front Differential Drive Pinion Gear and Carrier Removal

Front Differential Drive Pinion Gear and Carrier Removal

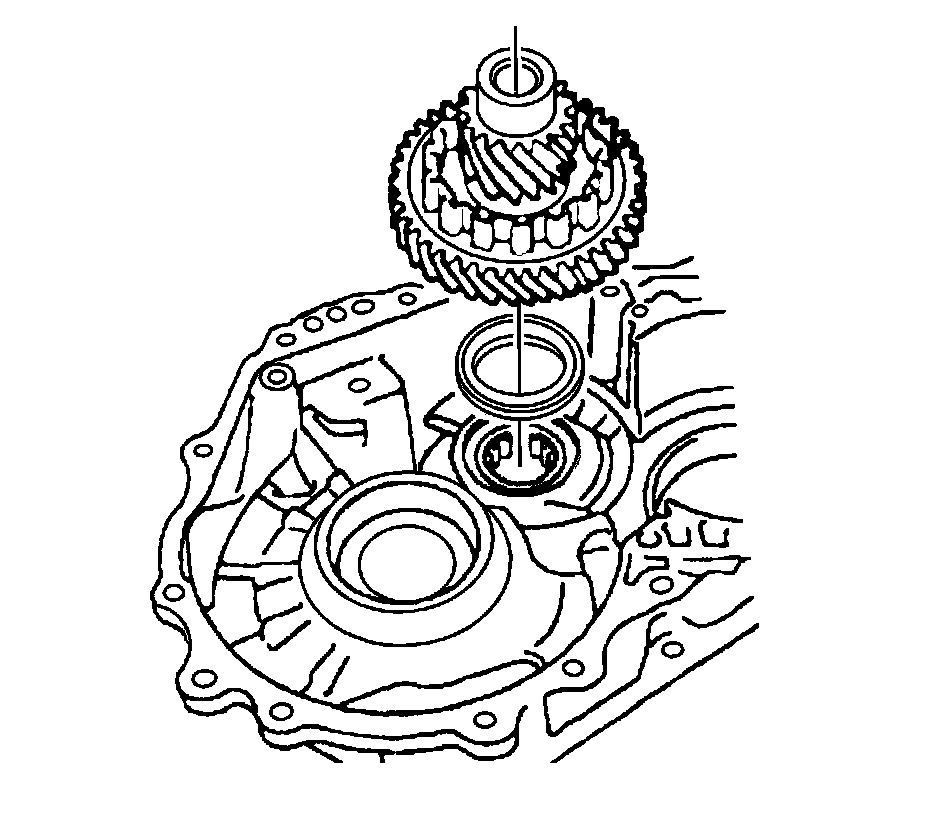

1. Remove the front differential drive pinion gear and thrust bearing from the transmission case.




2. Using a brass bar and a hammer, remove the front differential drive pinion plug.
