1st and Reverse Brake Assembly

Disassembled Views

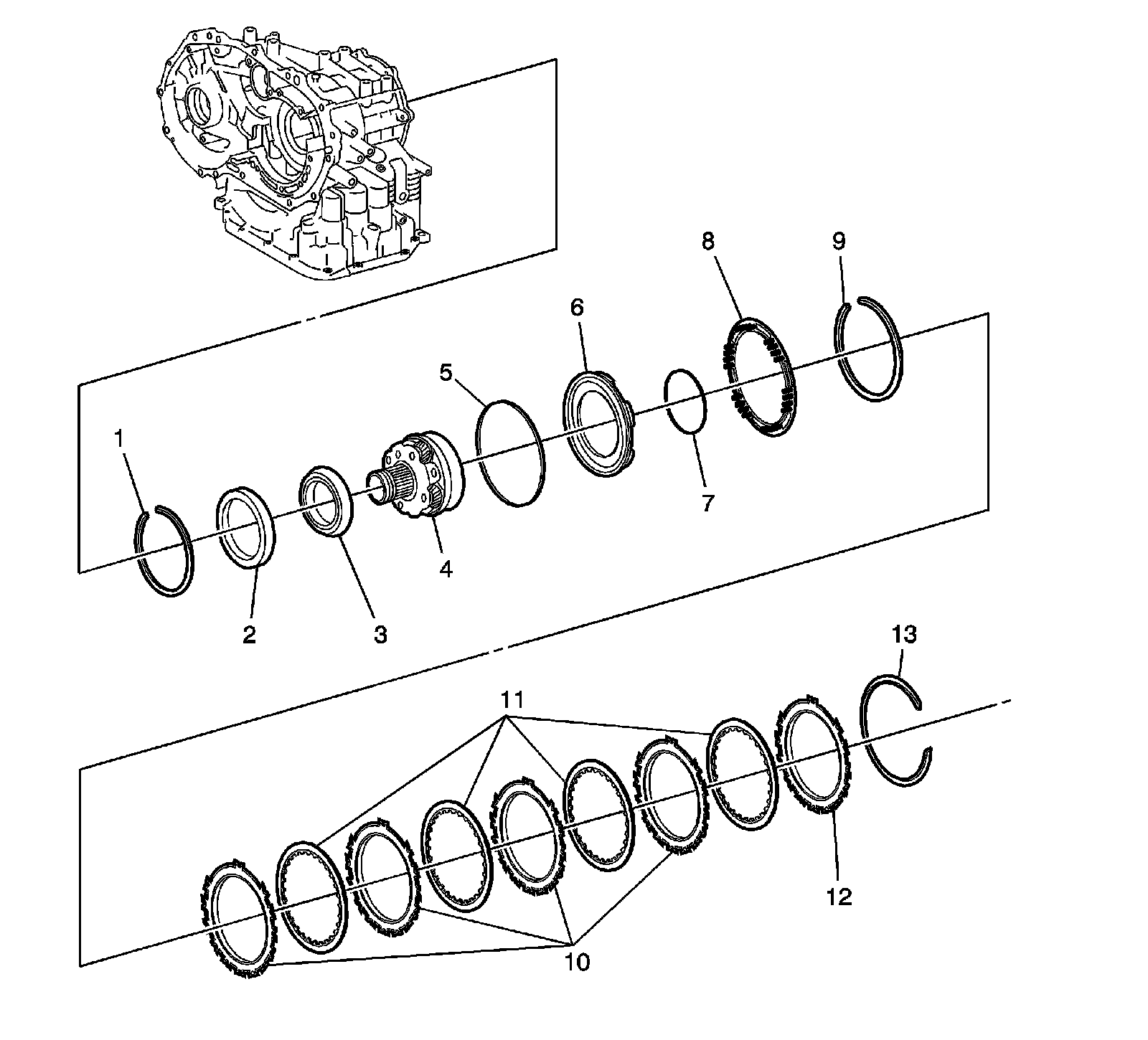

1st and Reverse Brake Assembly




1 - Counter Drive Gear Hole Snap Ring
2 - Counter Drive Gear Bearing Outer Race LH
3 - Counter Drive Gear Bearing LH
4 - Planetary Gear Assembly
5 - No. 2 1st and Reverse Brake Piston O-ring
6 - No. 2 1st and Reverse Brake Piston
7 - No. 2 1st and Reverse Brake Piston O-ring
8 - 1st and Reverse Brake Return Spring Sub-Assembly
9 - Snap Ring
10 - 1st and Reverse Brake Plate
11 - 1st and Reverse Brake Disc
12 - 1st and Reverse Brake Flange
13 - Snap Ring
