Underdrive Planetary Gear Assembly

Disassembled Views

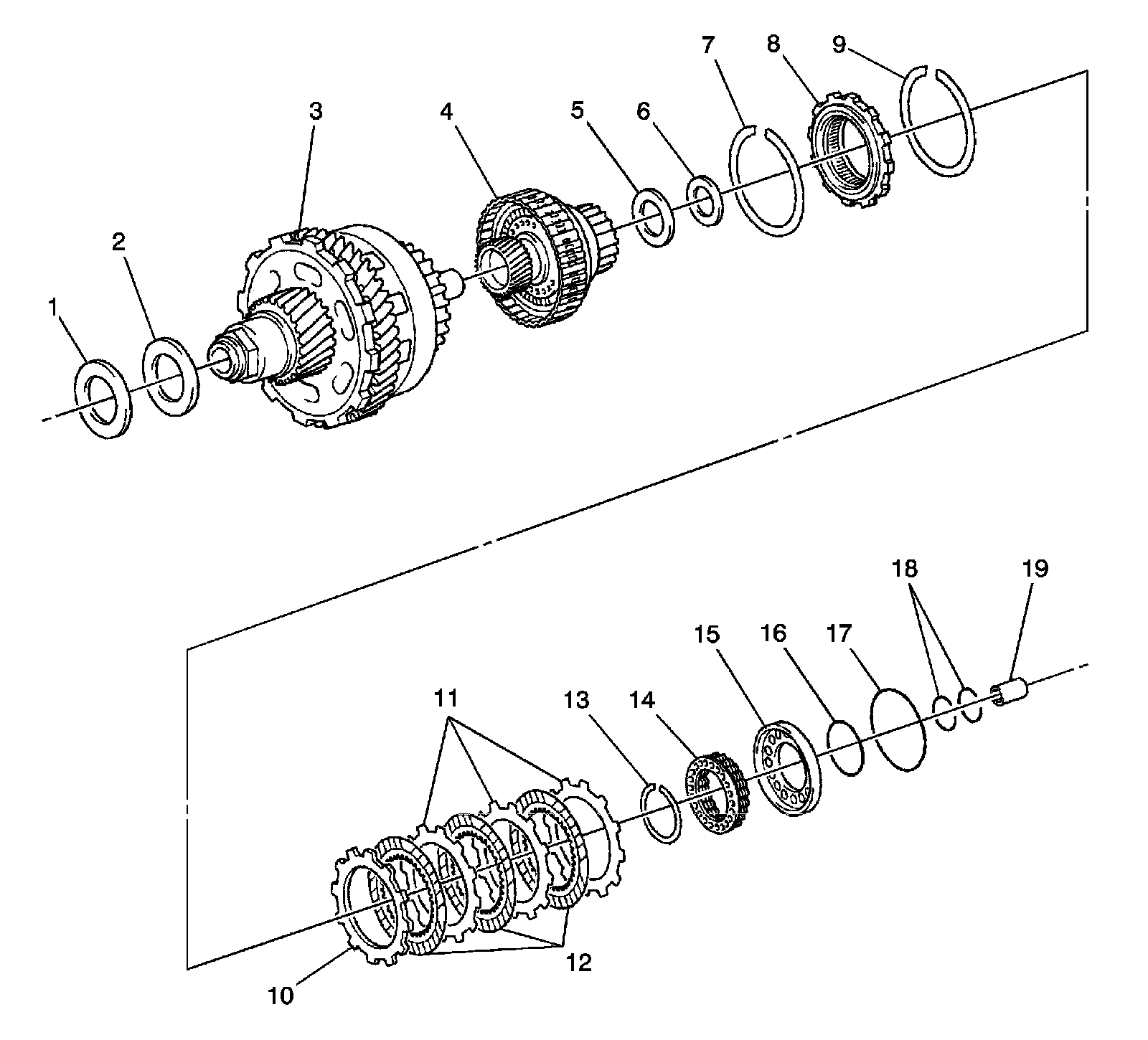

Underdrive Planetary Gear Assembly




1 - Thrust Bearing
2 - Bearing Race
3 - Underdrive Planetary Gear Assembly
4 - Underdrive Clutch Assembly
5 - Thrust Bearing
6 - Bearing Race
7 - Snap Ring
8 - Underdrive 1-Way Clutch Assembly
9 - Snap Ring
10 - Flange
11 - Plate
12 - Disc
13 - Snap Ring
14 - Underdrive Brake Return Spring Sub-Assembly
15 - Underdrive Brake Piston
16 - O-Ring
17 - O-Ring
18 - Underdrive Clutch Drum Oil Seal Ring
19 - Needle Roller Bearing
