Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> MVD 5 Speed - Automatic Transmission >> Drive Range, Third Gear

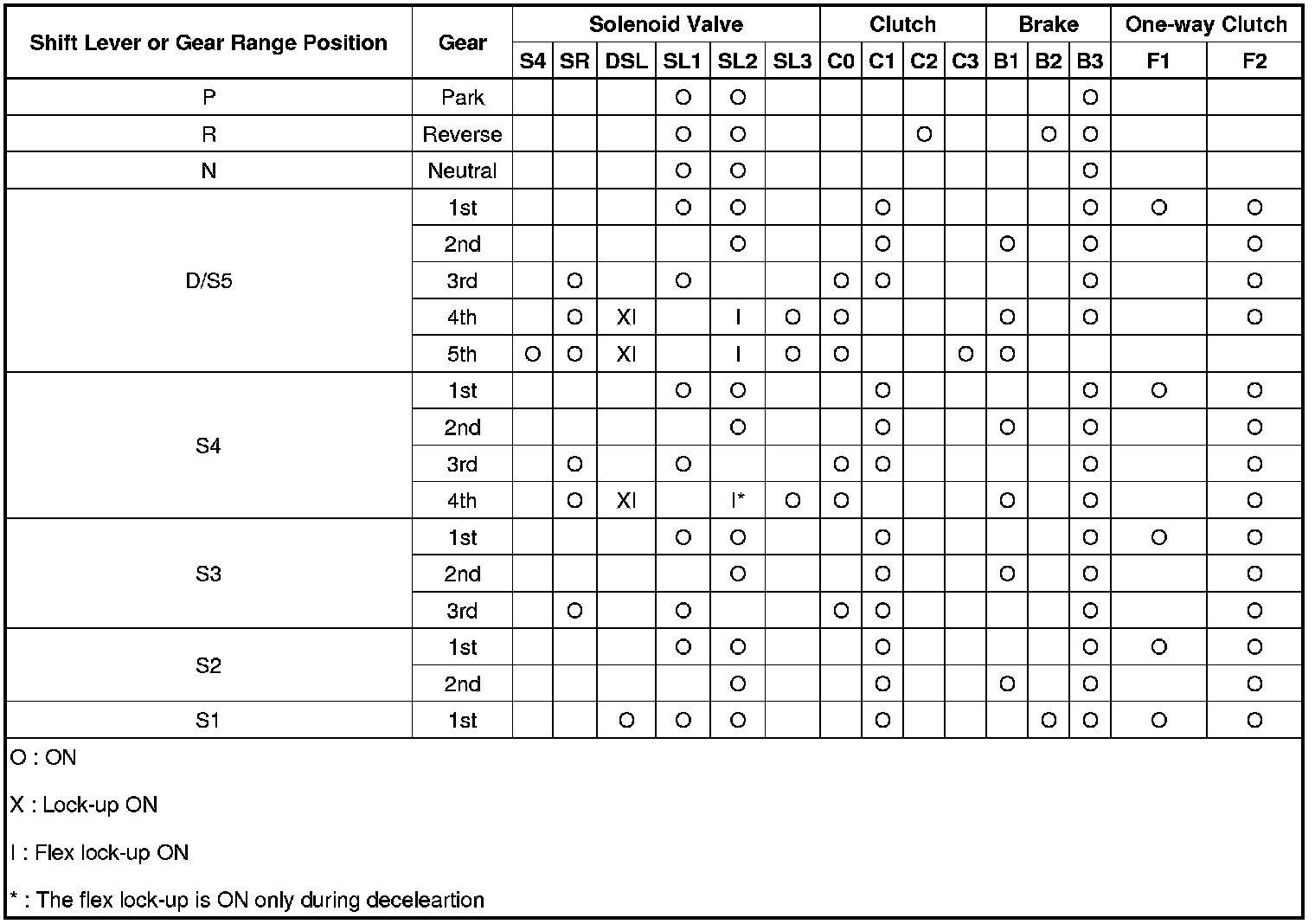

Drive Range, Third Gear




Drive Range, Third Gear

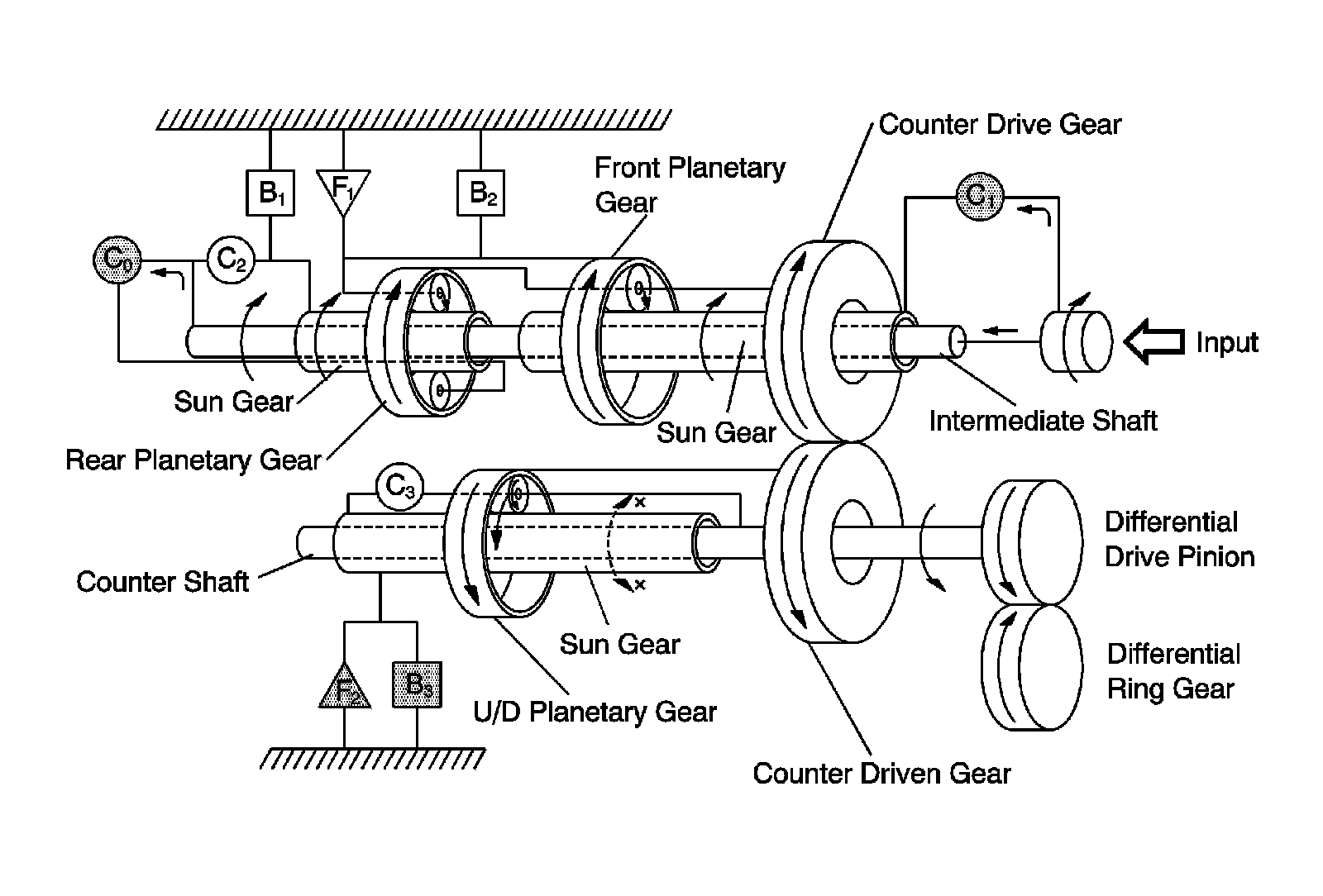

3rd Gear (D or S3 Position)
