Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> MVD 5 Speed - Automatic Transmission >> Drive Range, First Gear (S1 Position)

Drive Range, First Gear (S1 Position)




Drive Range, First Gear (S1 Position)

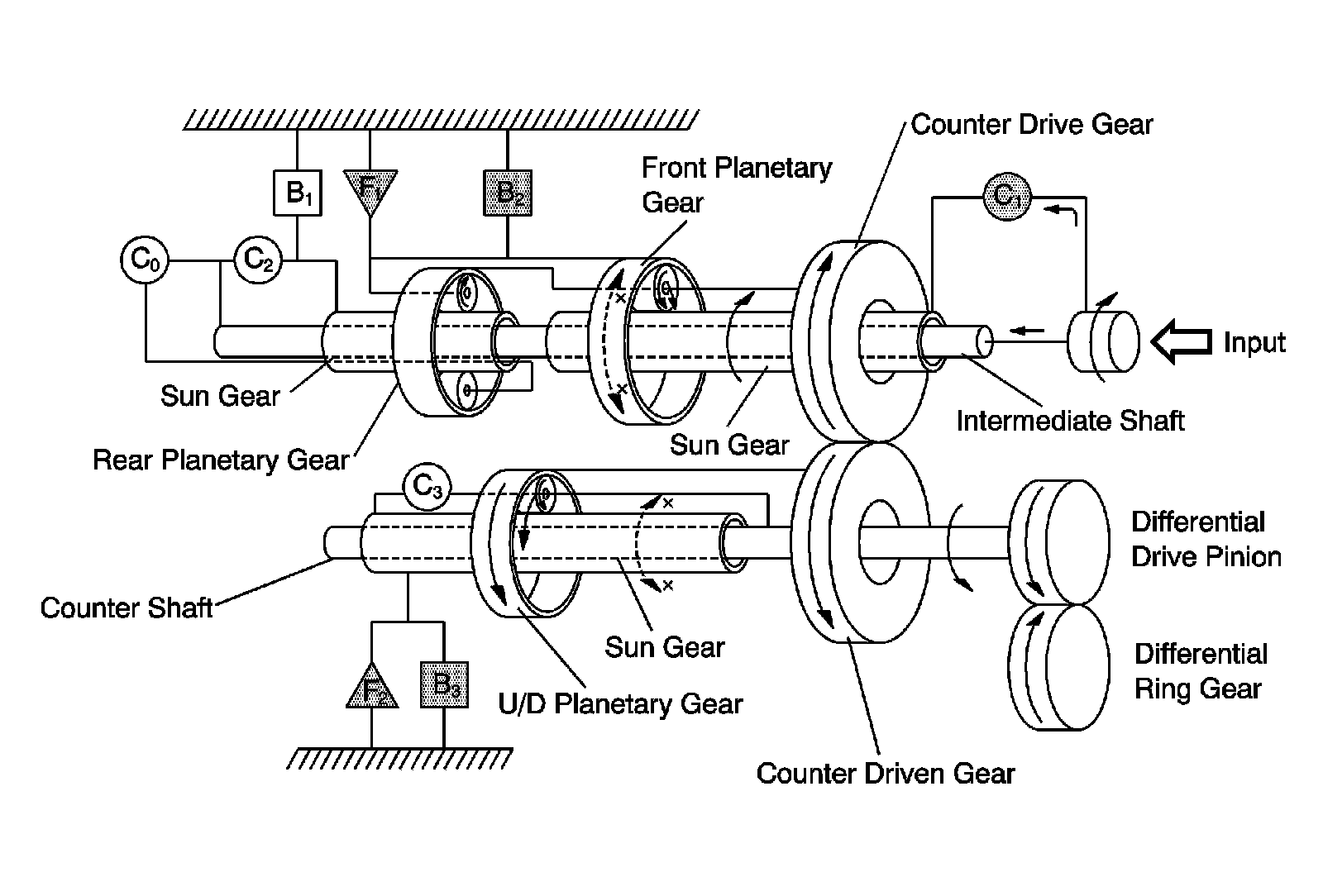

1st Gear (S1 Position)
