MVB 4 Speed - Automatic Transmission
>>

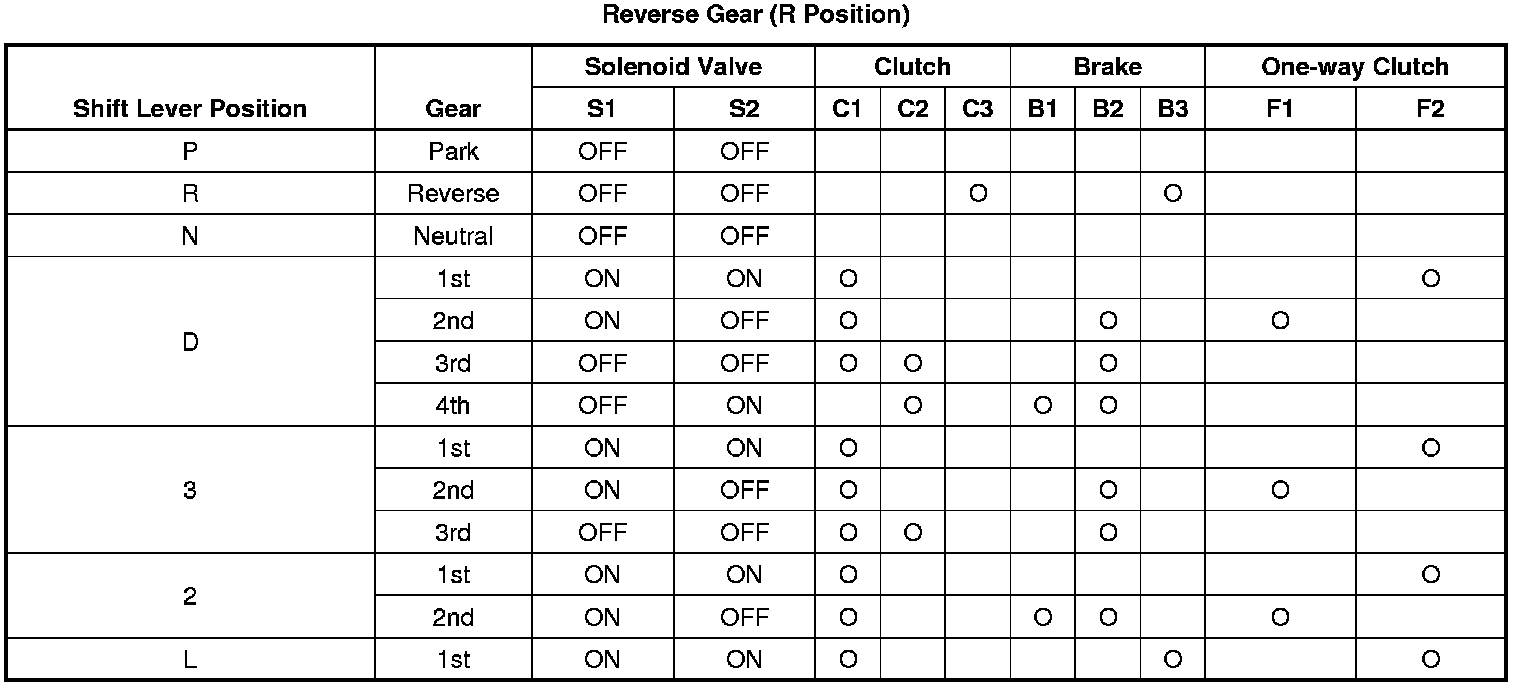

Reverse (R Position)
Reverse (R Position)
Reverse (R Position)

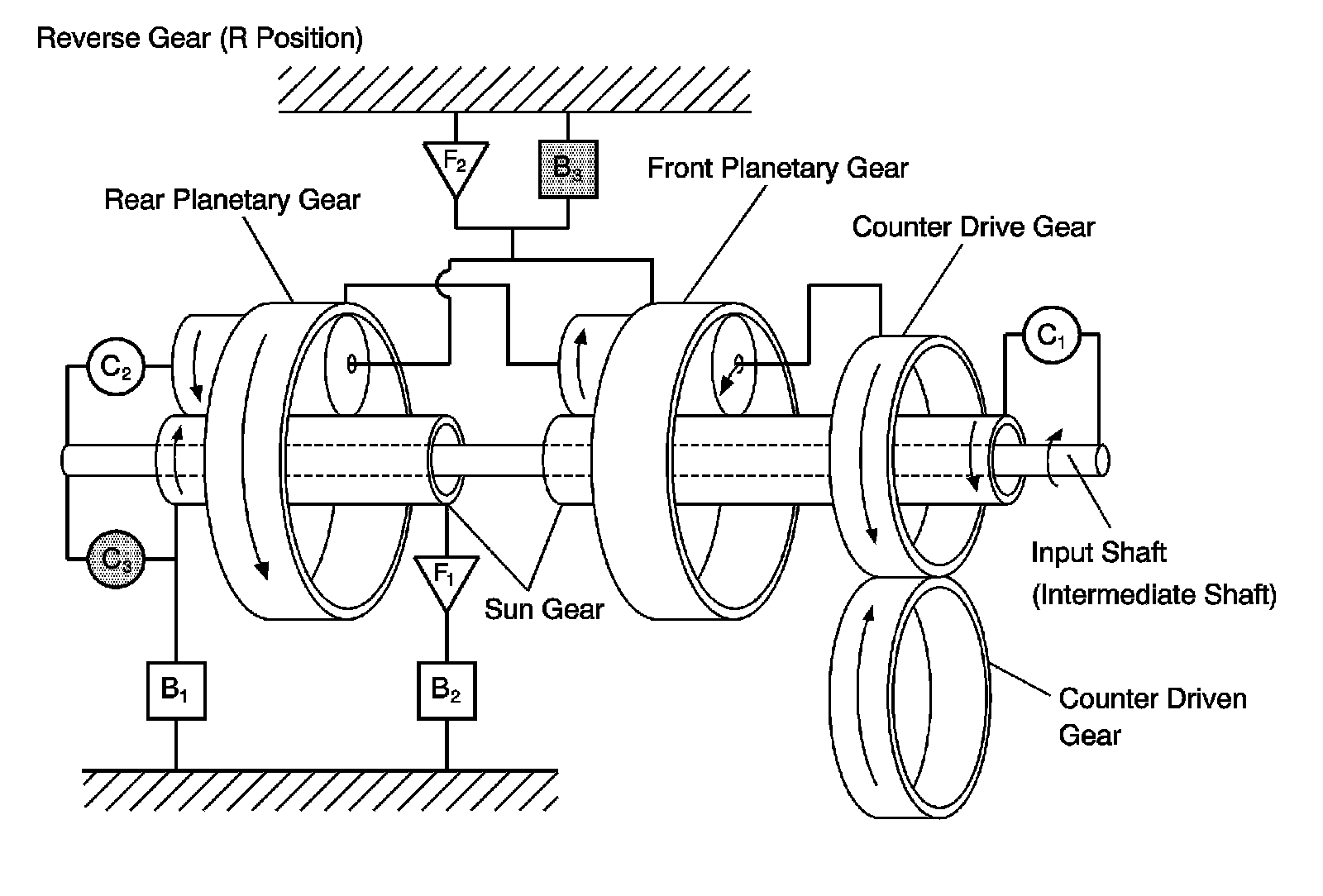

Reverse Gear (R Position)
