Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> MVB 4 Speed - Automatic Transmission >> Drive Range, Second Gear (2 Position)

Drive Range, Second Gear (2 Position)




Drive Range, Second Gear (2 Position)

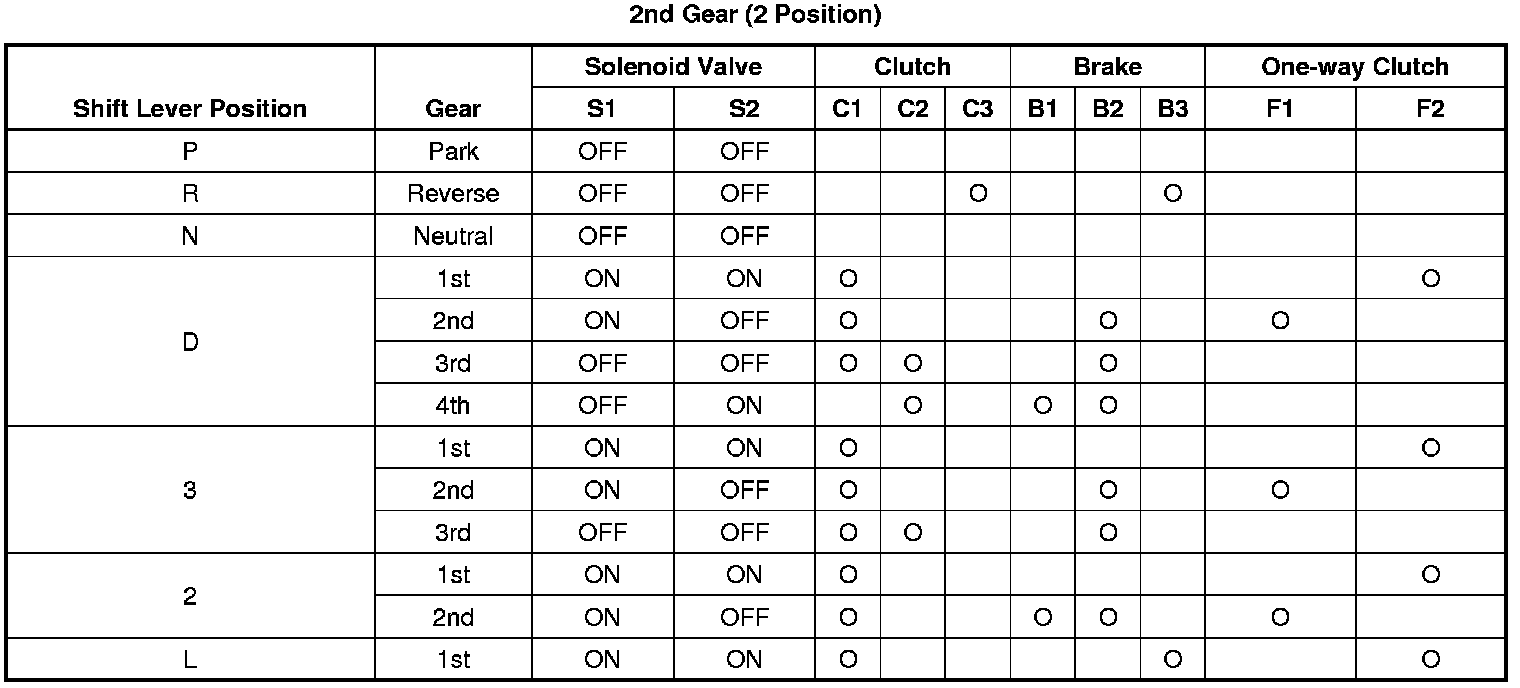

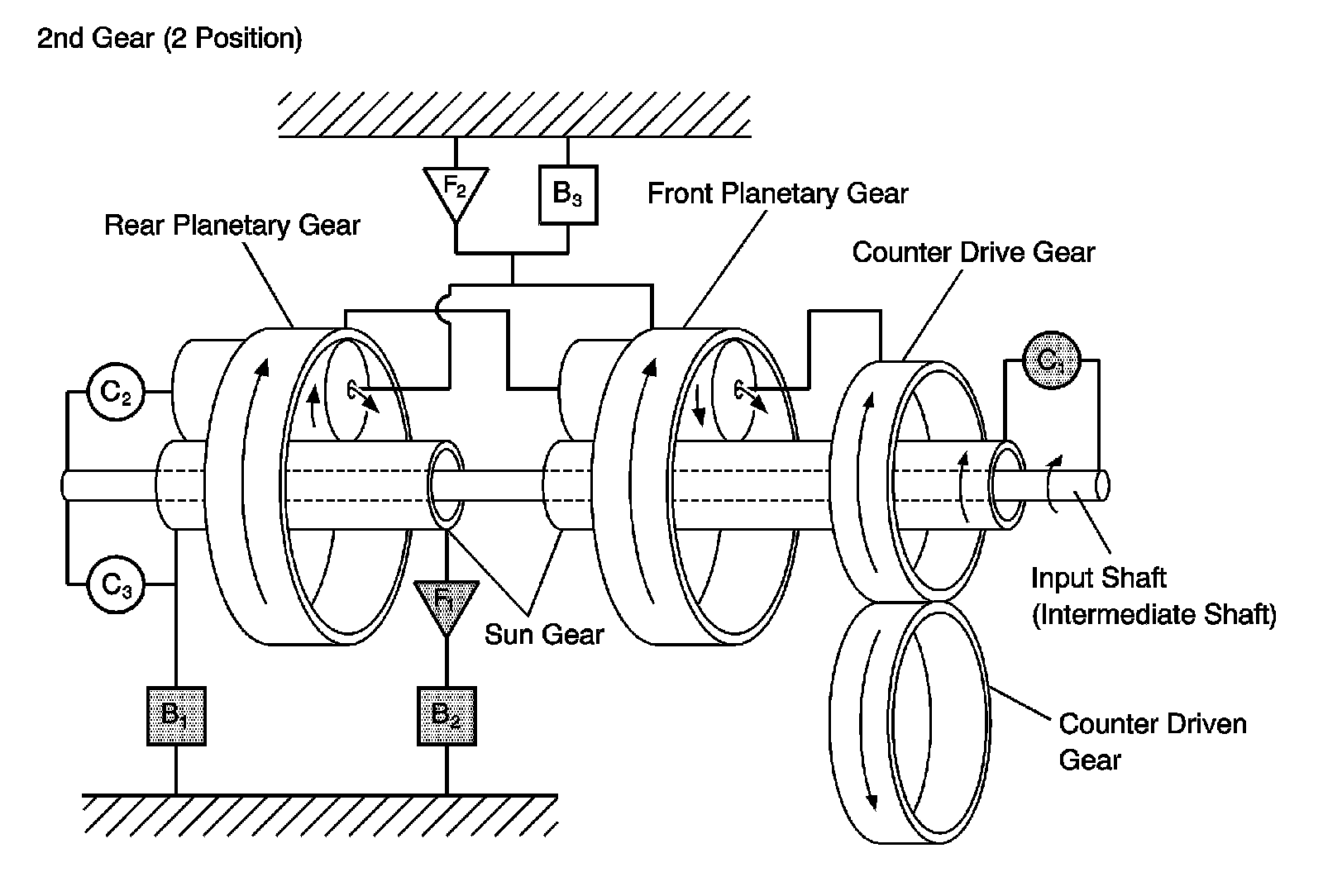

2nd Gear (2 Position)
