MVB 4 Speed - Automatic Transmission
>>
Drive Range - Fourth Gear (D Position)
Drive Range - Fourth Gear (D Position)
Drive Range - Fourth Gear (D Position)

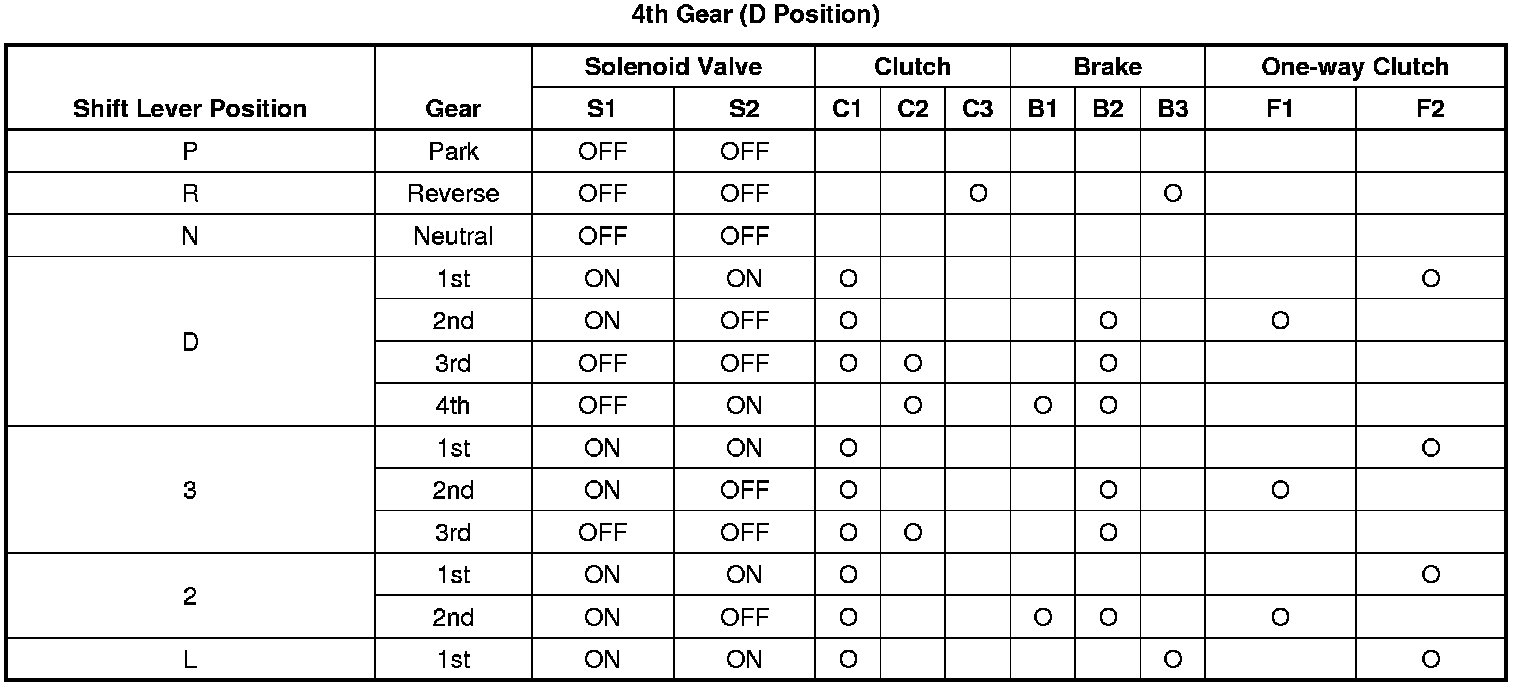

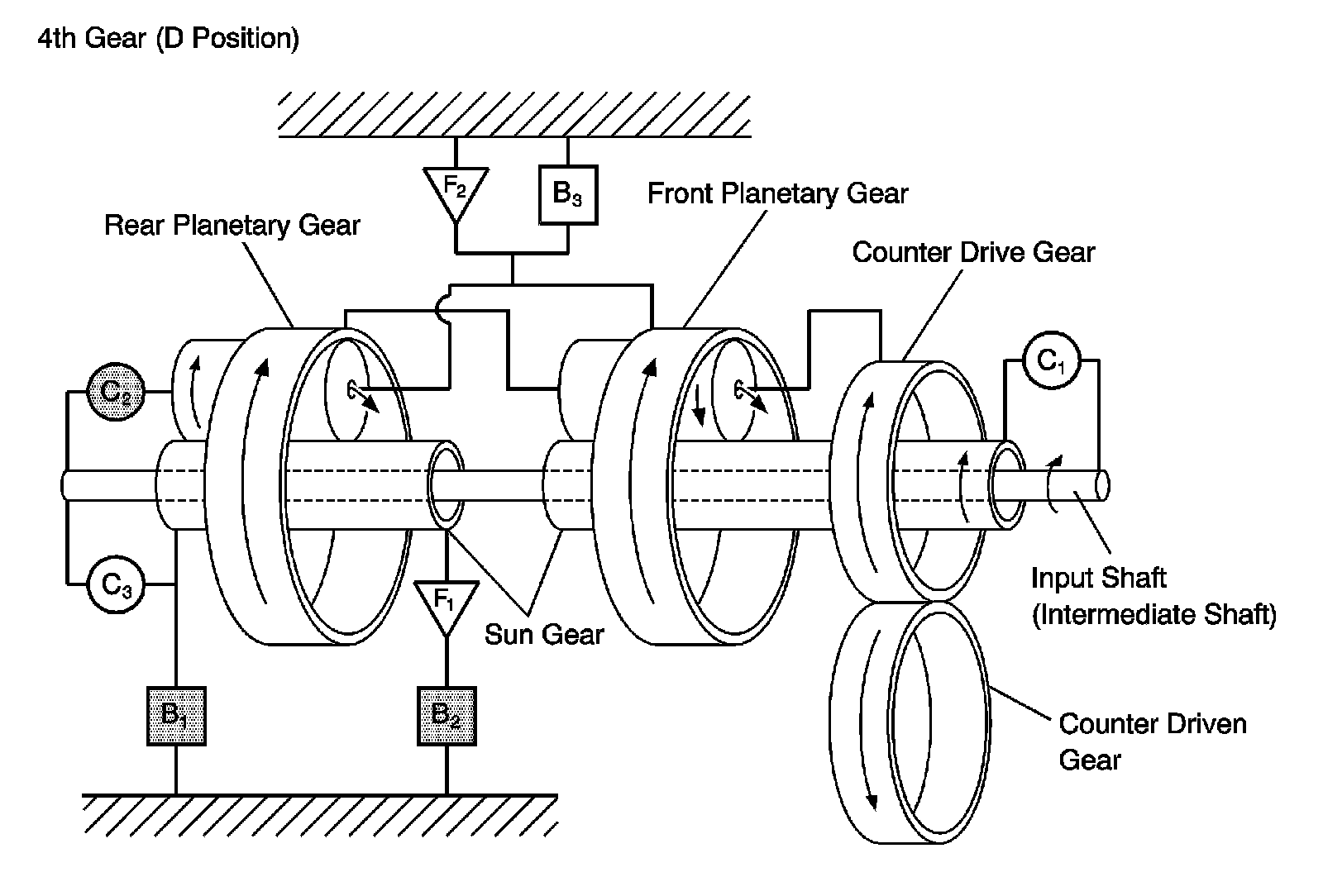

4th Gear (D Position)
