Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X200 - X299 >> X224

X224

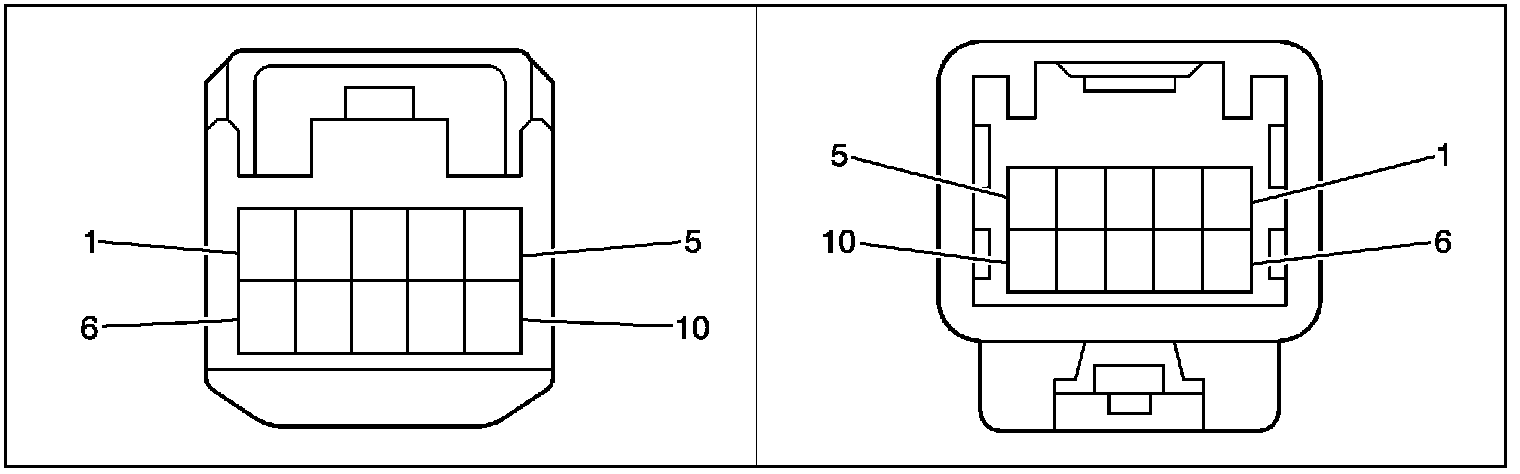

Inline Harness Connector End Views

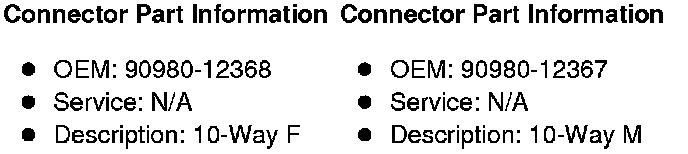

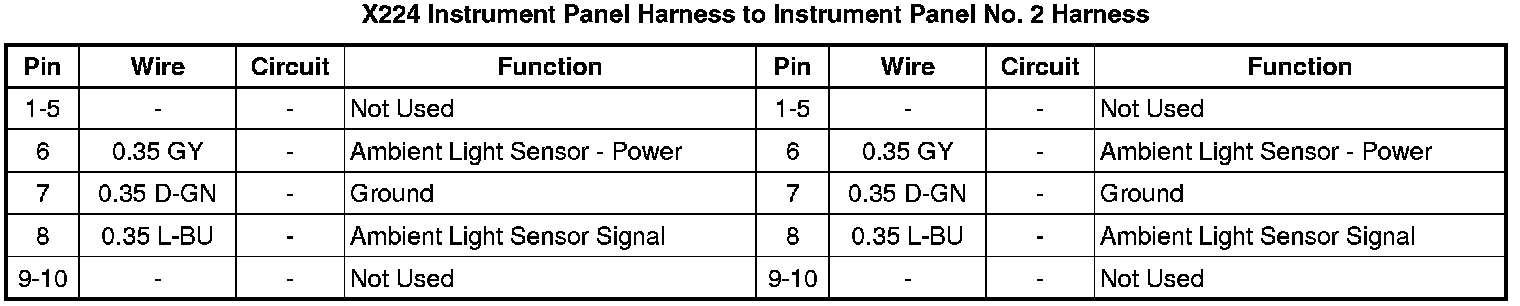

X224 Instrument Panel Harness to Instrument Panel No. 2 Harness
