Wheel Speed Sensor: Locations

Wheels/Vehicle Underbody Component Views

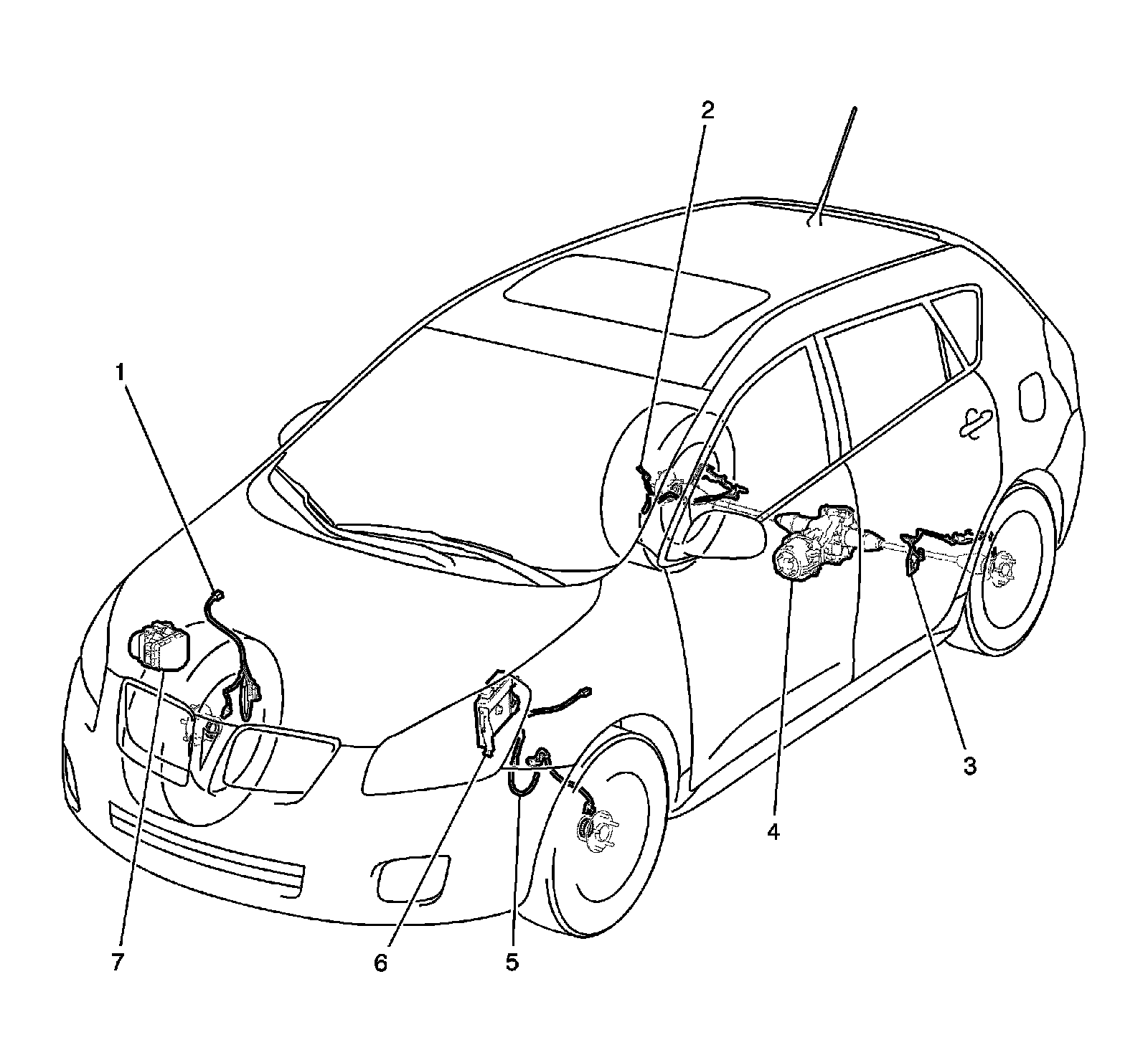

Wheel Speed Sensors Components




1 - Wheel Speed Sensor (WSS) - Right Front
2 - Wheel Speed Sensor (WSS) - Right Rear
3 - Wheel Speed Sensor (WSS) - Left Rear
4 - Transfer Case Clutch Coil (F46)
5 - Wheel Speed Sensor (WSS) - Left Front
6 - Powertrain Control Module (PCM)
7 - Electronic Brake Control Module (EBCM)
