Rear Seat Center Belt Buckle Replacement

Rear Seat Center Belt Buckle Replacement

Removal Procedure




1. Remove the rear seat. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).

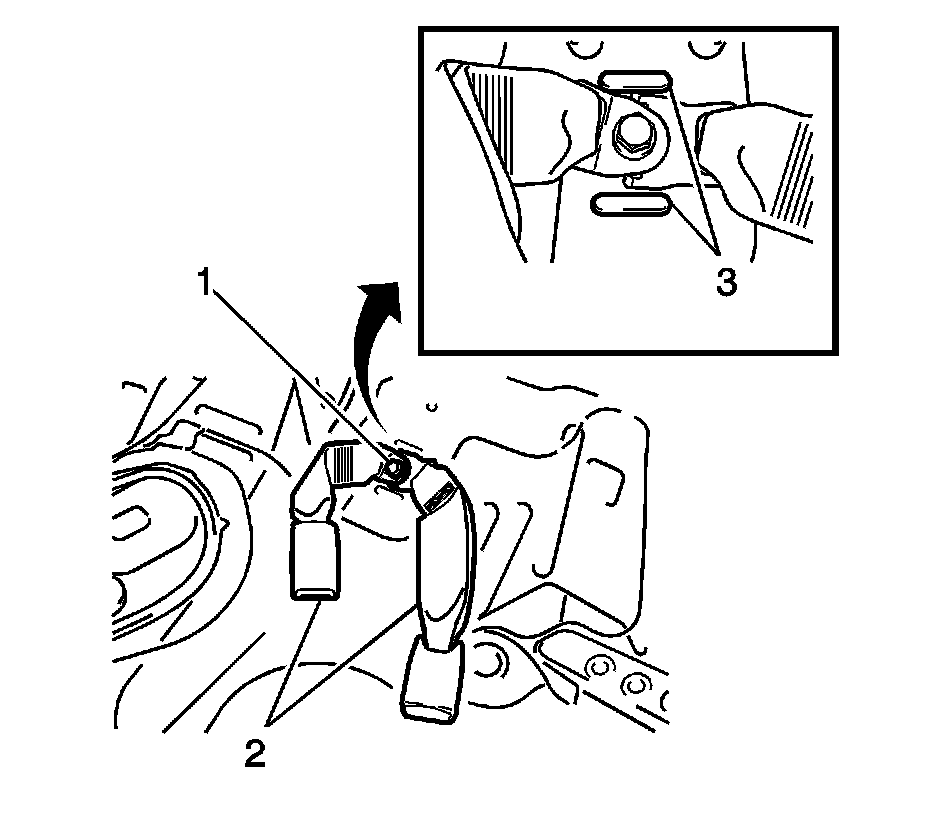

2. Remove the following components from the vehicle:

* The anchor bolt (1)
* The rear seat belt buckle (2)

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

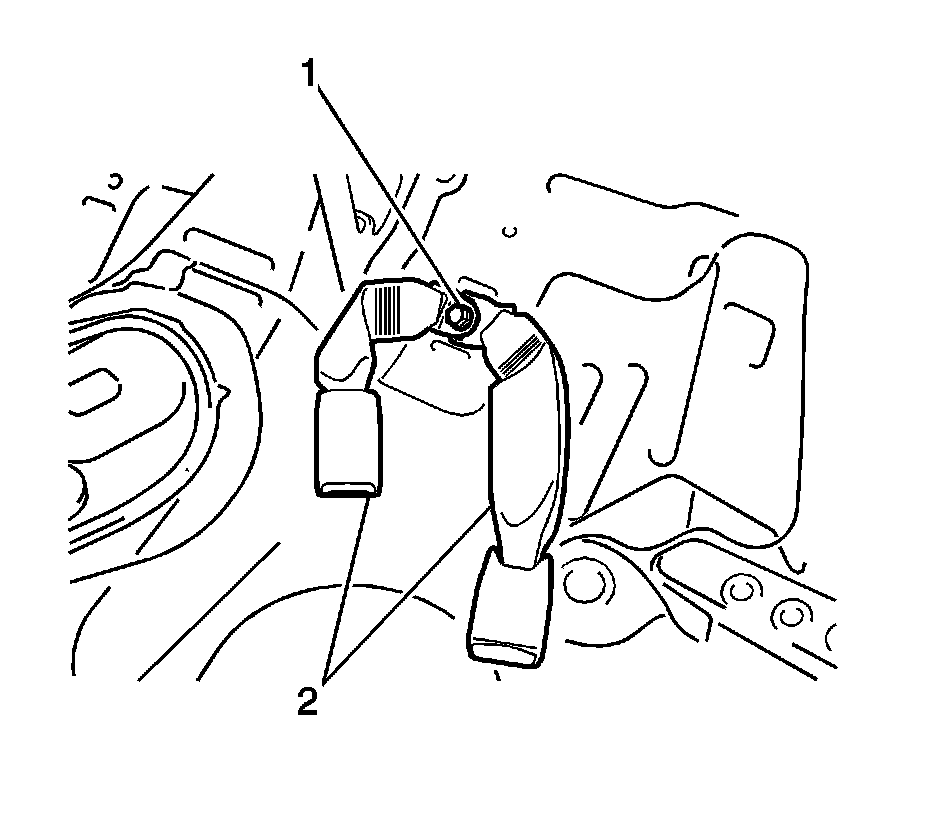

1. Install the rear seat belt buckle (2) to the vehicle. Secure the buckle with the anchor bolt (1).

Tighten the rear seat belt buckle anchor bolt to 41 Nm (30 lb ft).

2. Install the rear seat. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).
