Driver or Passenger Seat Belt Buckle Replacement

Driver or Passenger Seat Belt Buckle Replacement

Removal Procedure

1. Remove the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
2. Disconnect the seat belt buckle harness connectors.

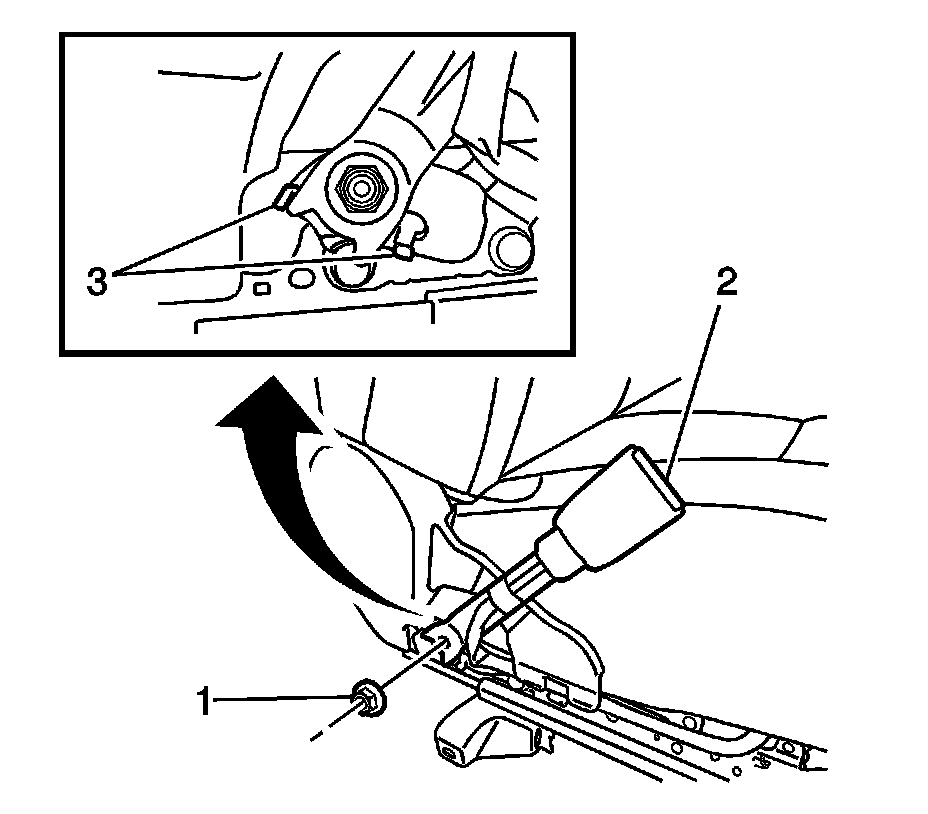

3. Remove the following components from the front seat:

* The inner adjuster finish cover
* The nut (1)
* The seat belt buckle (2)

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

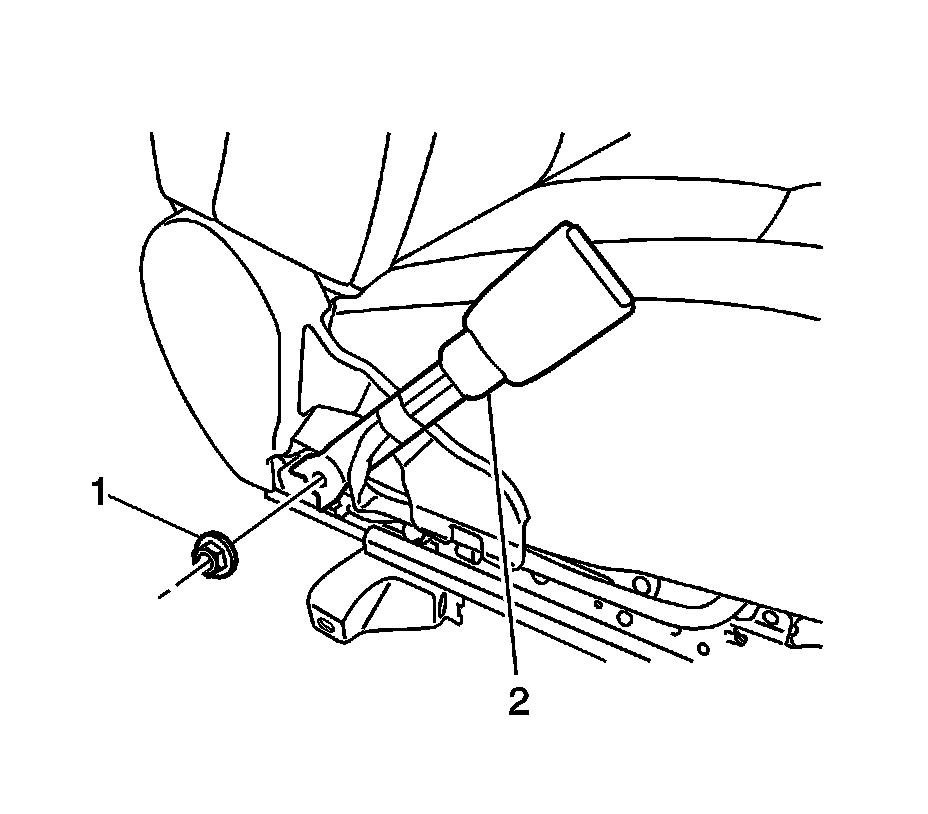

1. Install the seat belt buckle (2) to the front seat. Secure the buckle with the bolt (1).

Tighten the front seat belt buckle bolt to 42 Nm (31 lb ft).

2. Install the inner adjuster finish cover to the front seat.
3. Connect the seat belt buckle harness connectors.
4. Install the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket).
