Home >> Pontiac >> 2010 >> Vibe FWD L4-2.4L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

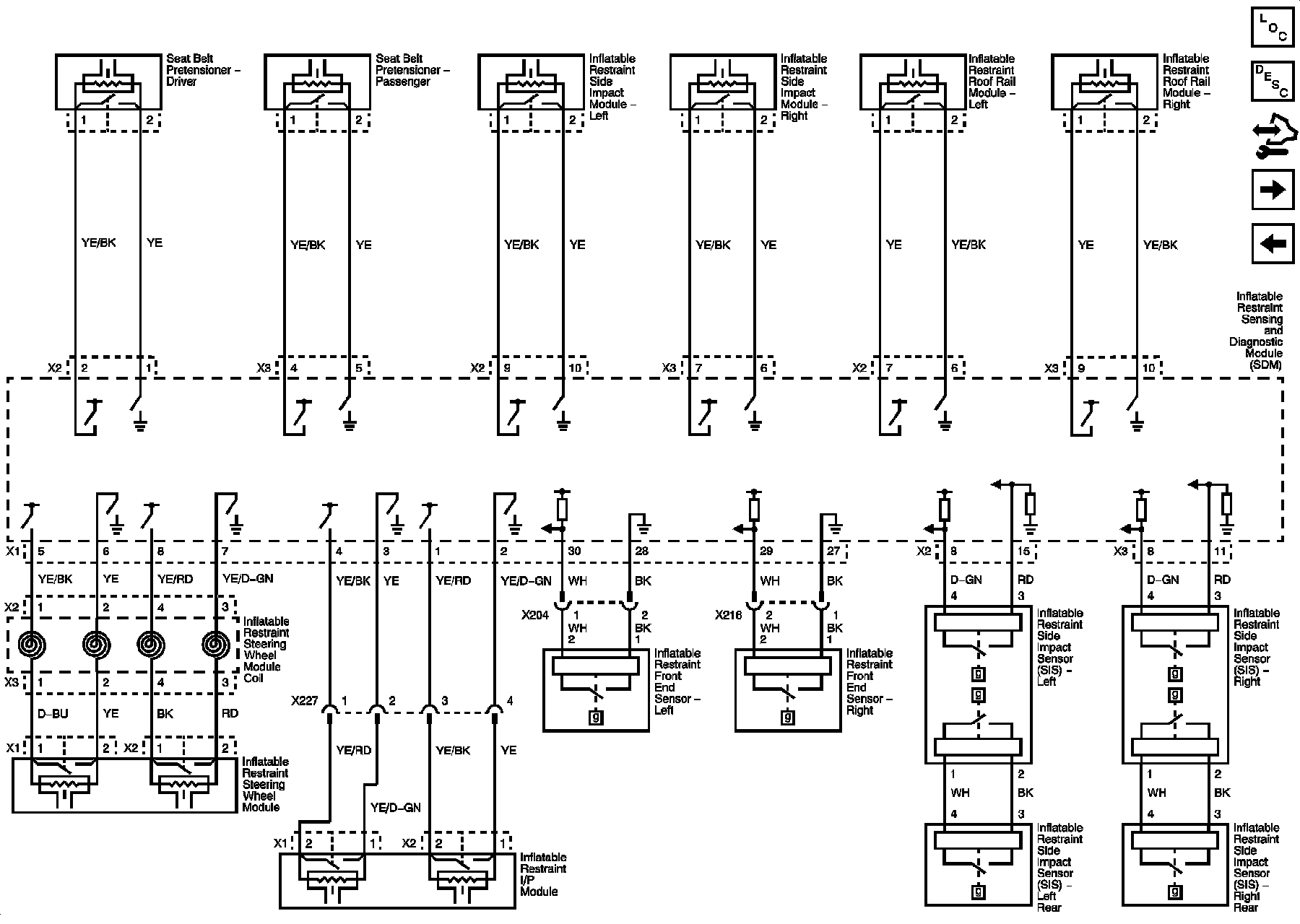

SIR Schematics

SDM, Indicators and Sensors

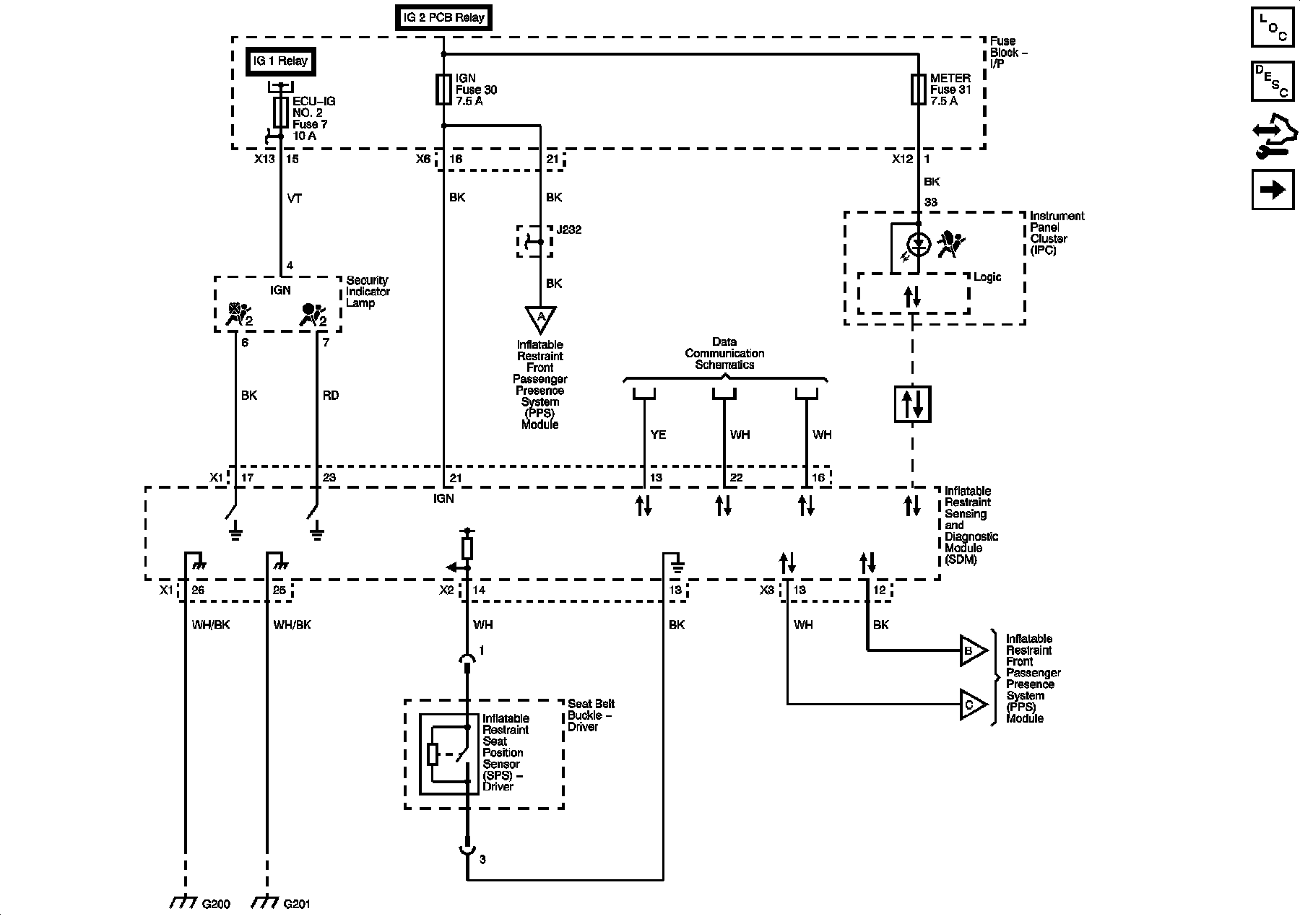

SDM, Power, Ground and Indicators

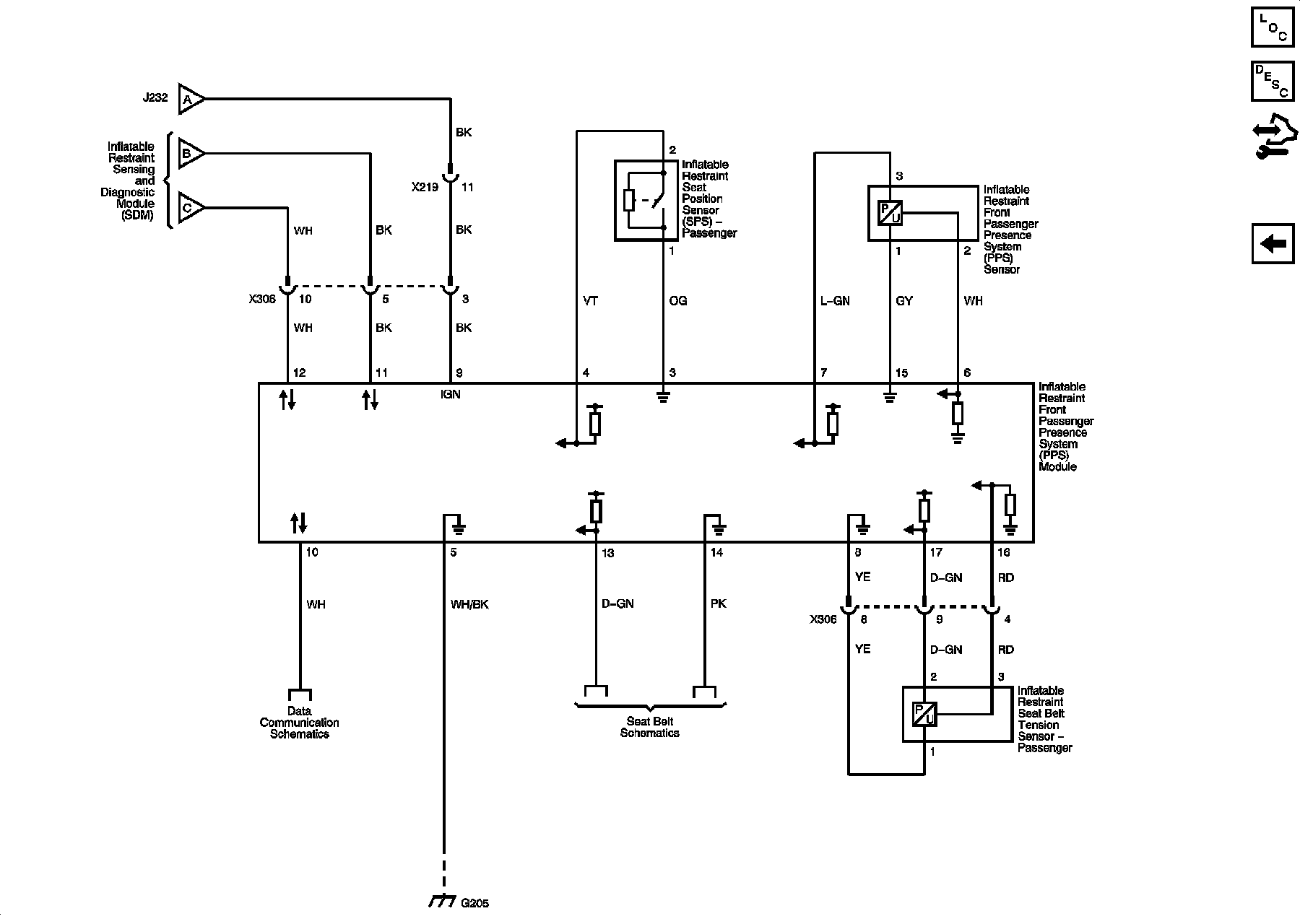

Passenger Presence Module and Sensors
