Clockspring Assembly / Spiral Cable: Diagrams




Component Connector End Views

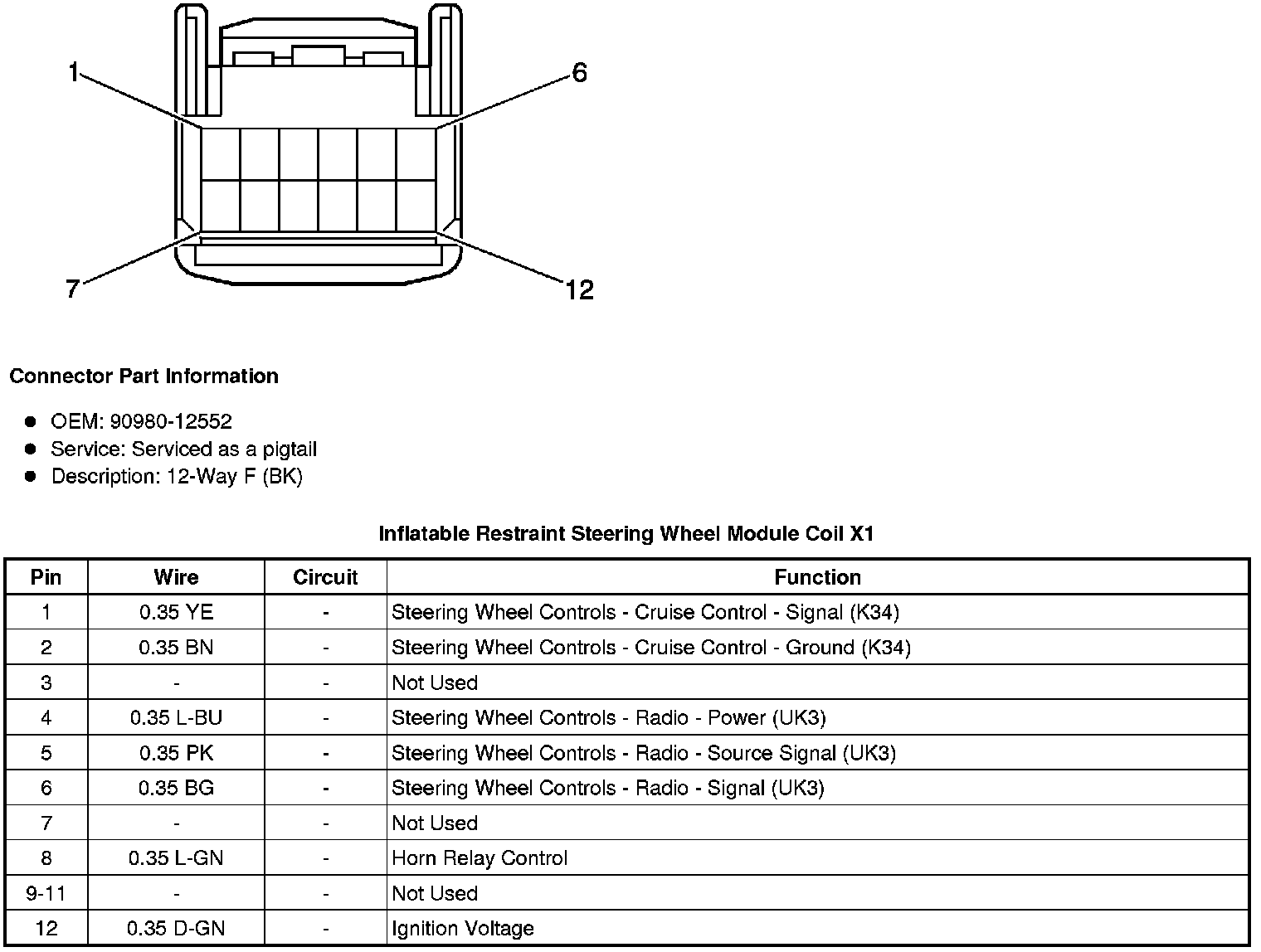

Inflatable Restraint Steering Wheel Module Coil X1

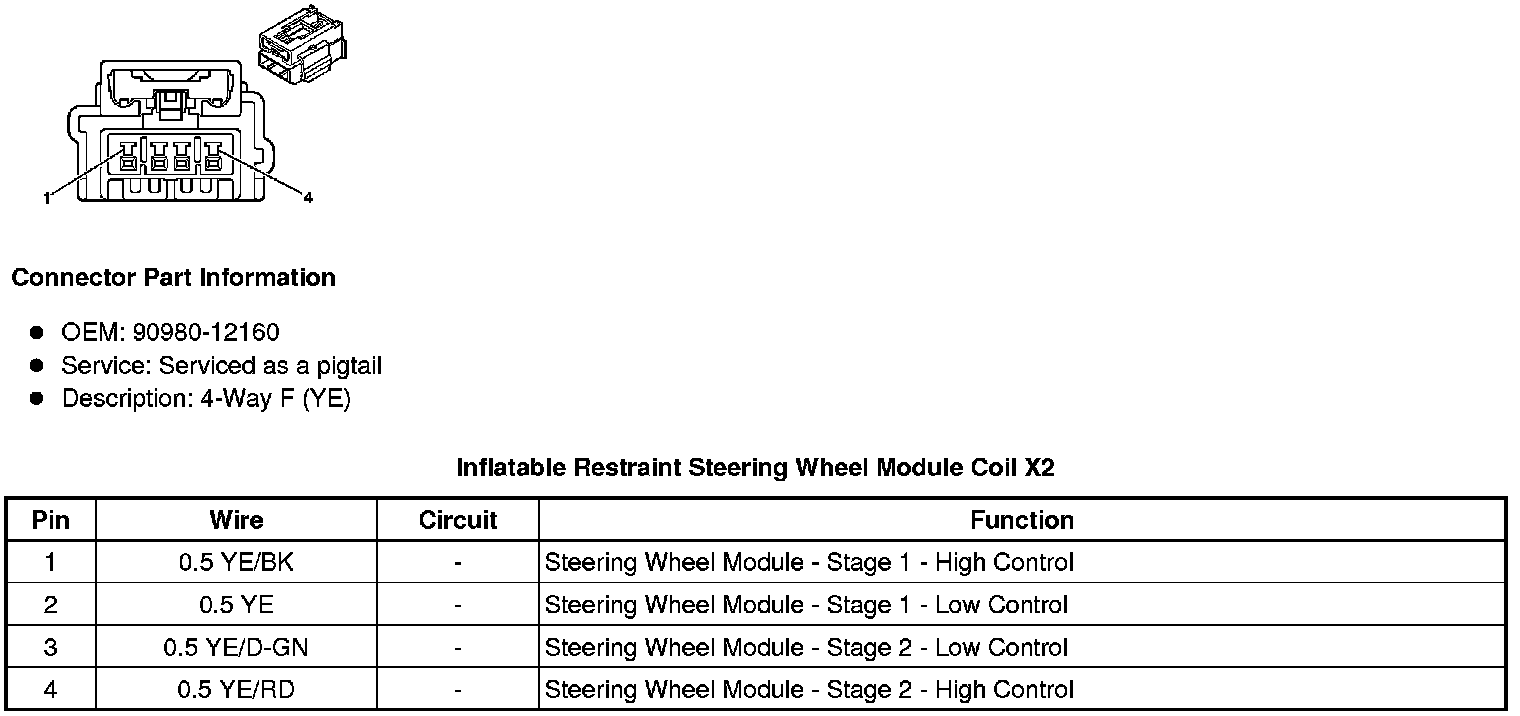

Inflatable Restraint Steering Wheel Module Coil X2

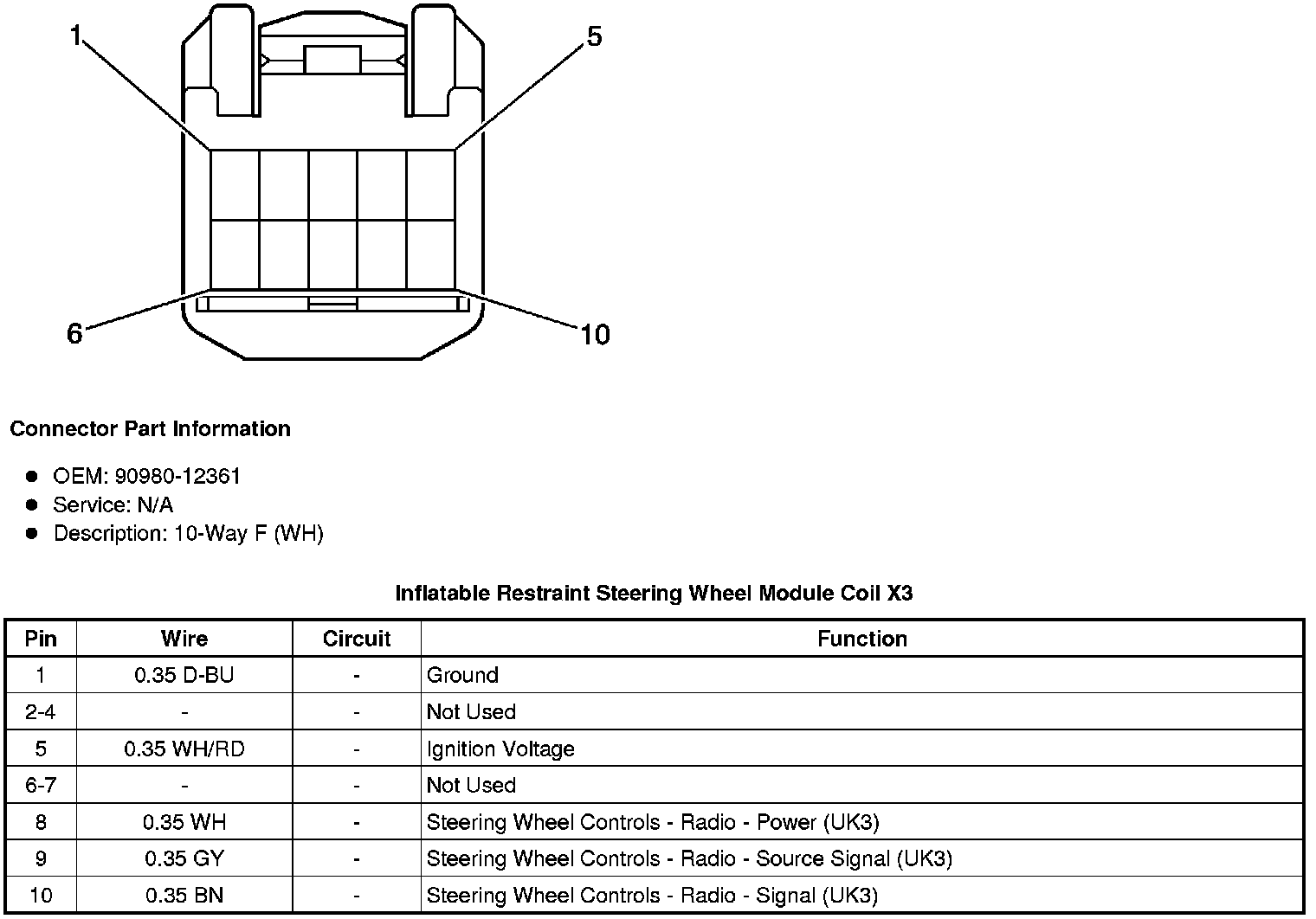

Inflatable Restraint Steering Wheel Module Coil X3

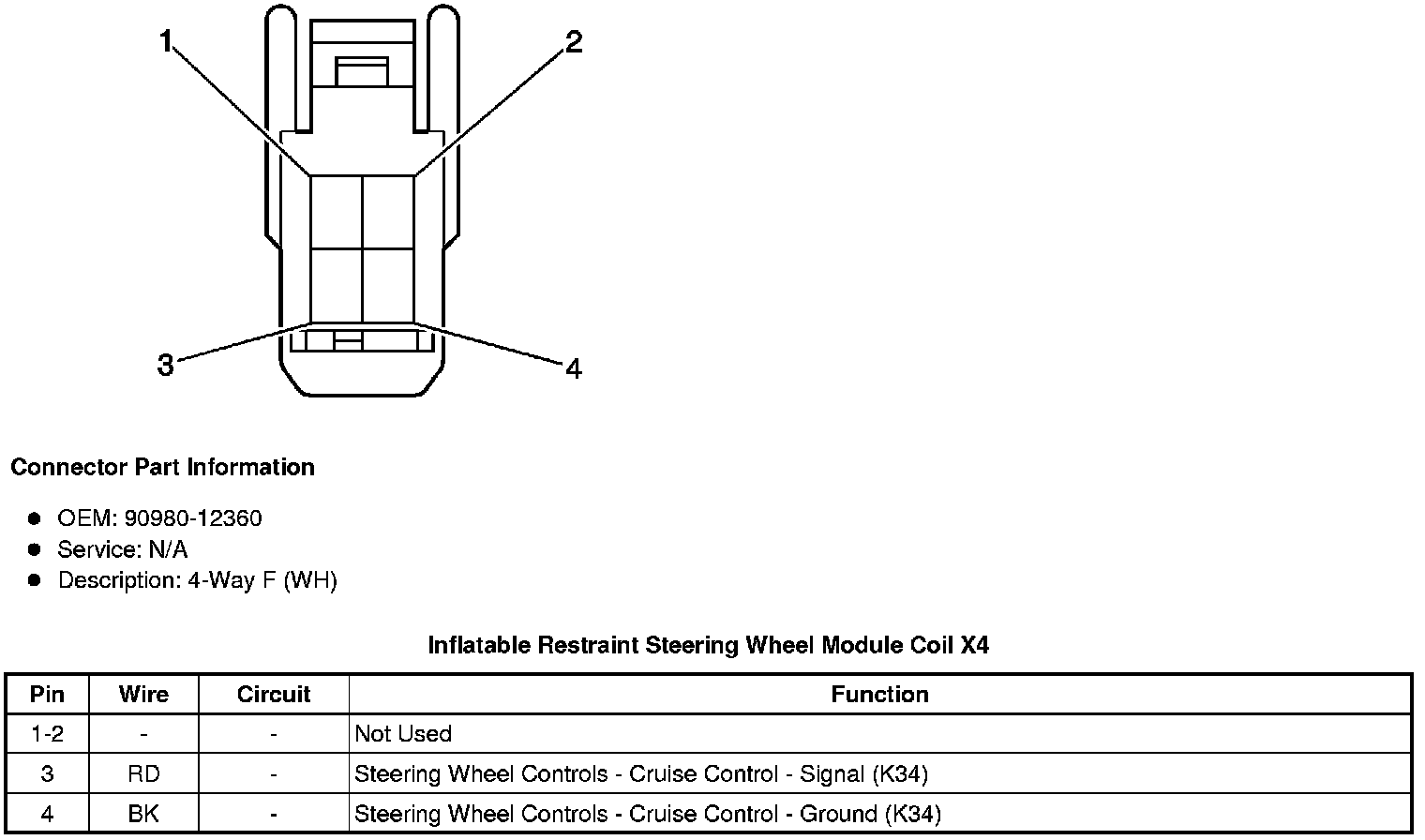

Inflatable Restraint Steering Wheel Module Coil X4
